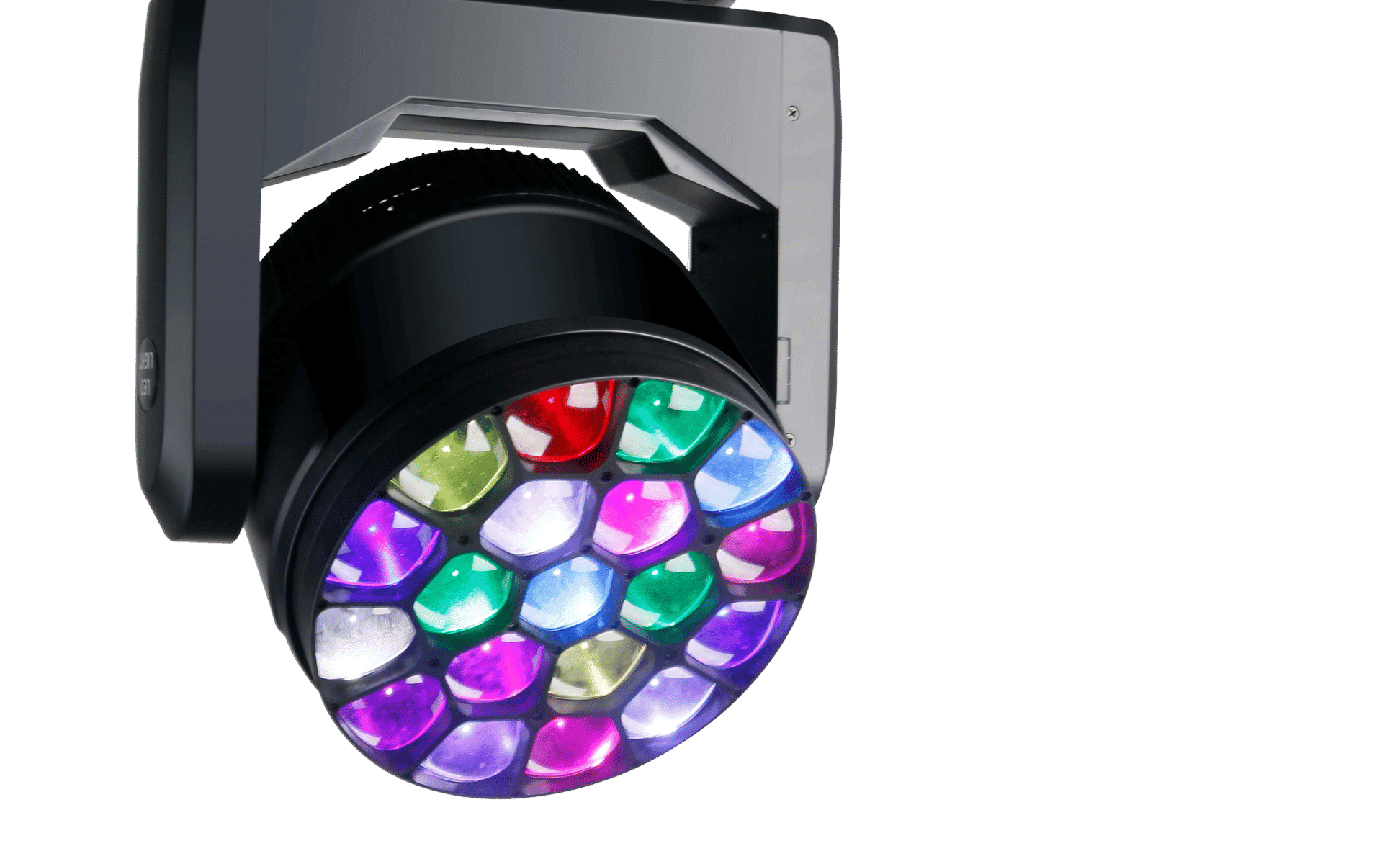

WASH 1940 BEE EYE
Massive Brightness. Infinite Control.
Meet the Wash 1940 Bee Eye, a heavyweight champion in stage illumination. Packing 19 ultra-bright 40W 4-in-1 LEDs into a robust chassis, it delivers a massive 145,600 lux of pure, vibrant light. Whether you need a punchy 10° beam for dramatic reveals or a soft 42° wash for full stage coverage, this fixture adapts effortlessly to your creative vision.
Designed for intricate light shows, the 1940 Bee Eye features an infinitely rotating front lens that generates spectacular dynamic effects and color gradients. The 16-bit high-precision motors ensure smooth tracking across 540° Pan and 270° Tilt. With up to 99 channels of DMX control, lighting designers have the ultimate tool to craft immersive visual experiences.
Technical Parameters
Optics & Light Source
- Light Source: 19x 40W 4-in-1 high-brightness RGBW LEDs
- Illuminance: Massive 145,600 lux @ 1m (at tight 10° angle)
- Dimming: 0-100% flawless linear dimming curve
Dynamic Effects
- Lens Rotation: Bi-directional infinite rotation for mesmerizing effects
- Color Macros: Dozens of built-in color gradients and 45 dynamic shapes
- Strobe: 1-25Hz high-speed shutter with multiple strobe macros
Control & Movement
- Pan/Tilt: 540° / 270° (Ultra-smooth 16-bit precision)
- Protocols: DMX512, Auto mode, Sound Active
- Channel Architecture: Scalable from 21 up to 99 CH for ultimate mapping
Electrical & Physical
- Power Supply: AC100-240V, 50/60Hz (600W max consumption)
- Connectors: Professional waterproof power in/out, 3-pin XLR
- Dimensions: 343 x 264 x 440 mm
- Net Weight: 14.5 kg

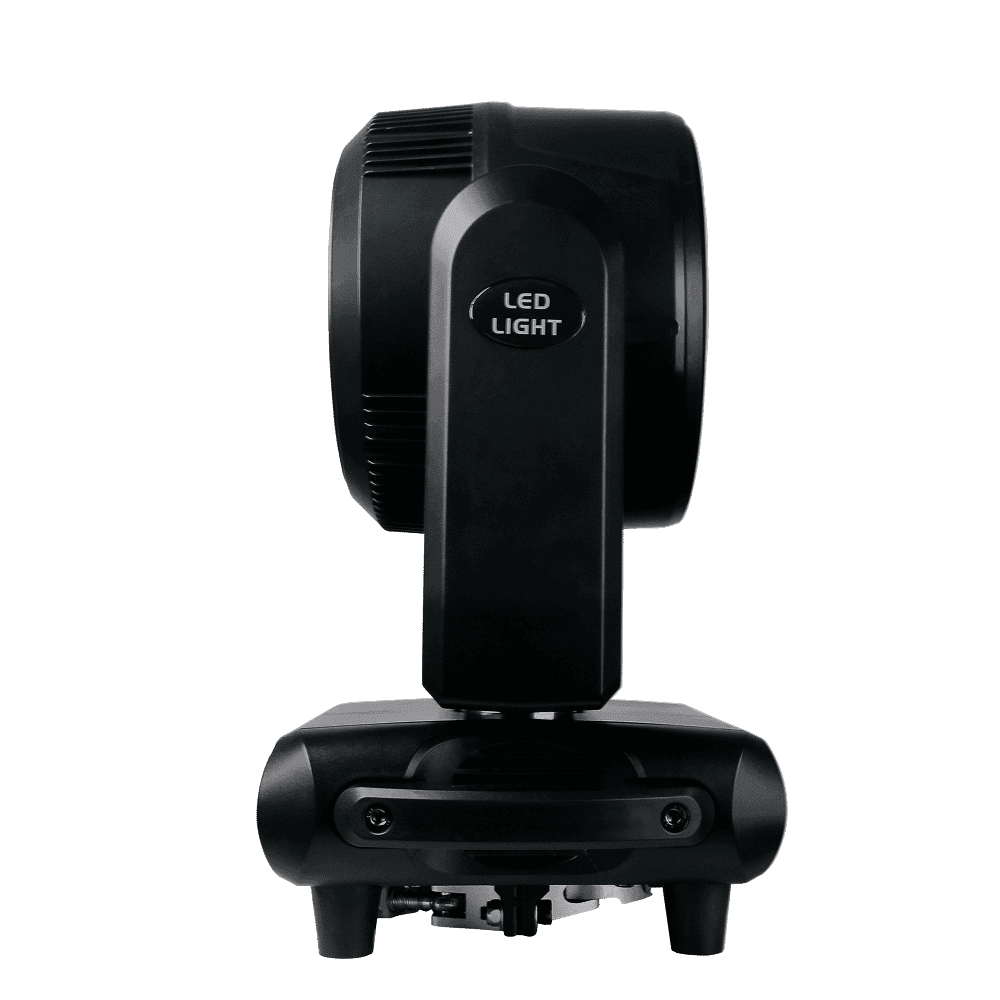

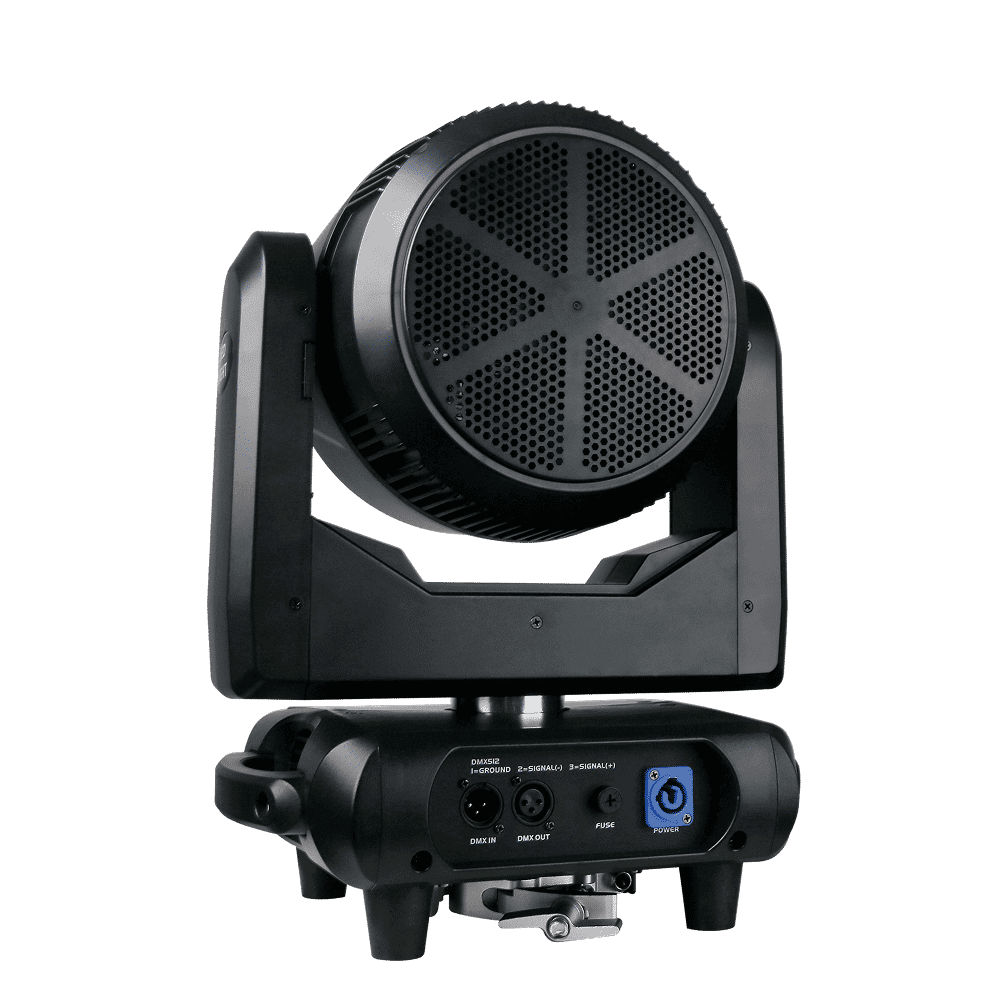

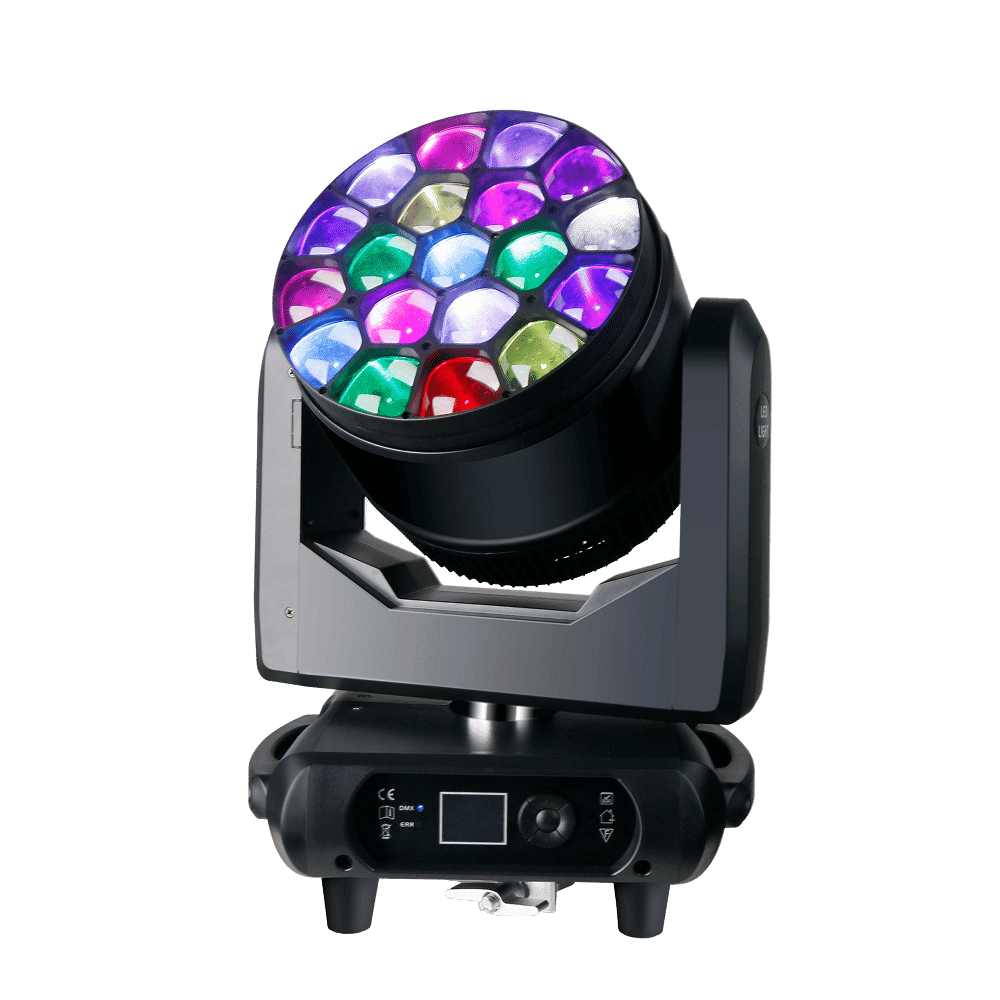

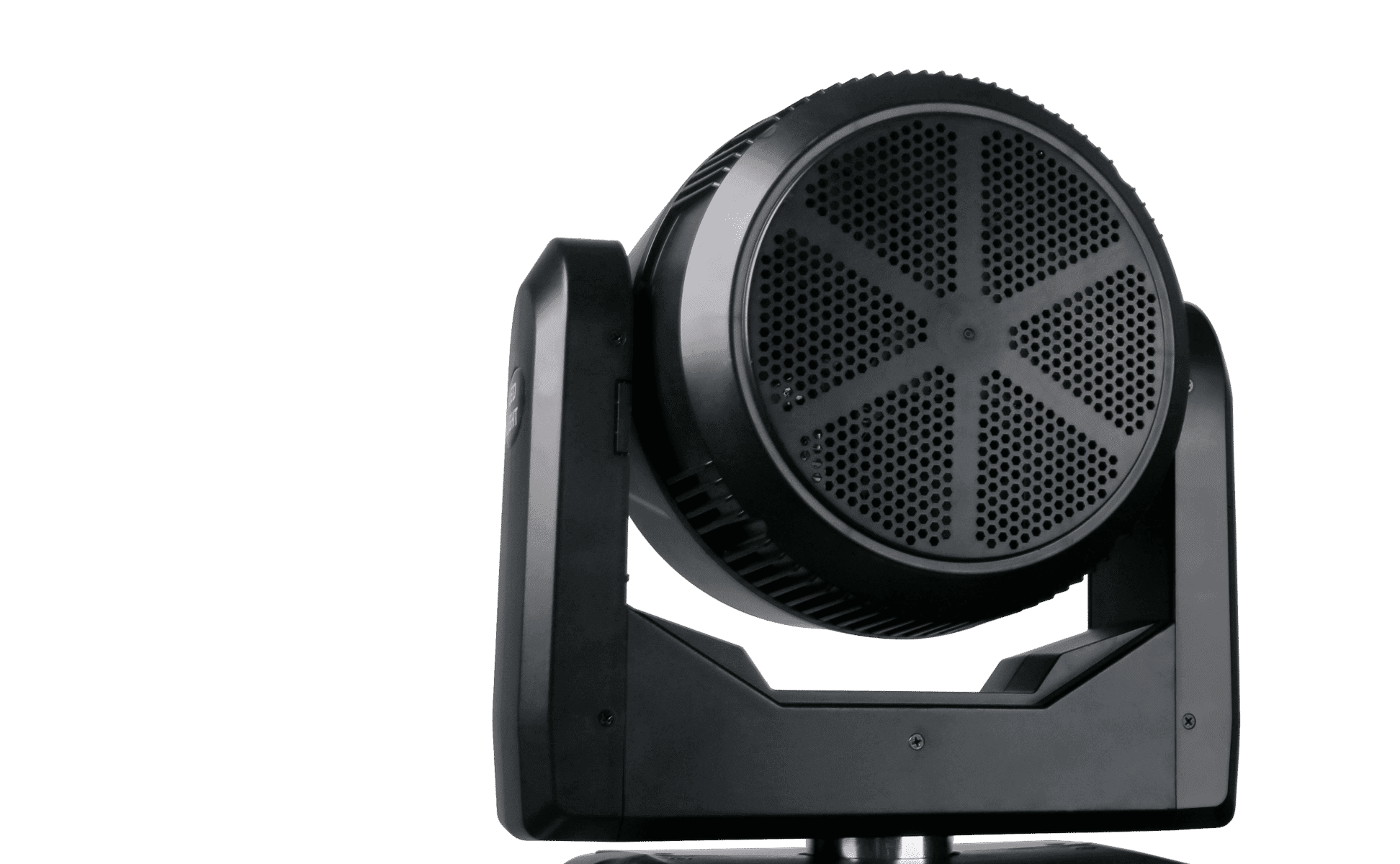

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
Download All (ZIP)
