OutdoorLED Display

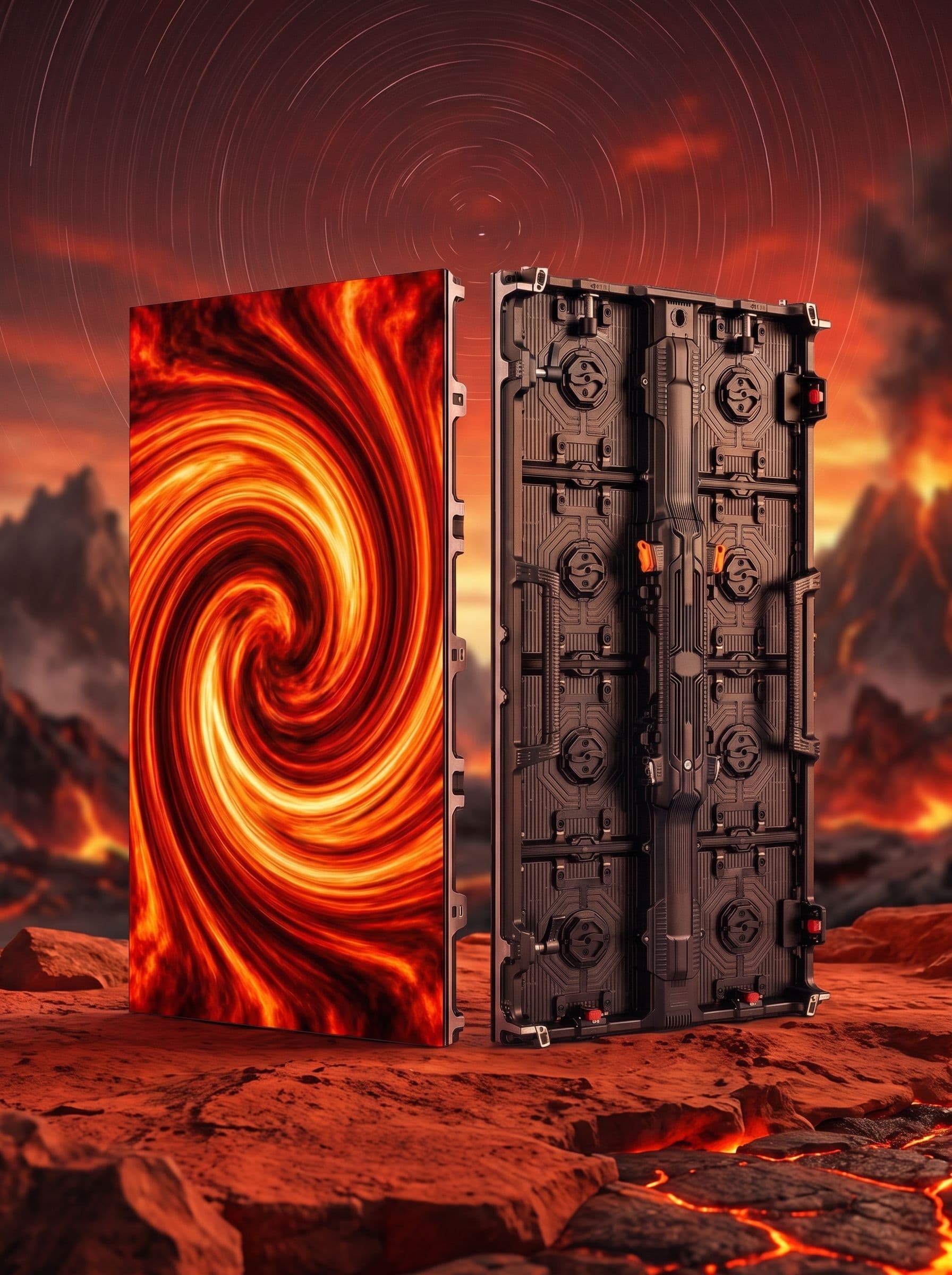

OUTDOOR P3.91 (500x1000)
Large-Format High-Refresh Outdoor Display
An advanced outdoor LED display featuring a 3.91mm pixel pitch and SMD1921 3-in-1 LEDs. Designed for high-end events offering an ultra-high 7680Hz refresh rate and flawless 2K/4K visual performance within a straight 500x1000mm cabinet.
Optical
- Pixel Pitch
- 3.91 mm
- Pixel Density
- 65,536 pixels / m²
- Resolution
- Module: 64×64 | Cabinet: 128×256
- Brightness
- 4400 - 4800 nits (Color Temp: 8000-12000K)
- Viewing Angle
- 160° Horizontal / 120° Vertical
- Refresh Rate
- 7680 Hz
- Gray Scale
- 16384 levels
Physical
- Cabinet Material
- Die cast aluminum
- Cabinet Size
- 500 × 1000 × 87 mm
- Module Size
- 250 × 250 mm
- Cabinet Weight
- 17 KG per cabinet
- Protection
- Outdoor Standard
- Temperature Range
- Working: -10~40°C | Storage: -20~60°C
Control System
- Control Mode
- Constant Current Drive, 16 Scans
- Frame Frequency
- 60 Hz
- Signal Inputs
- 2K HD, 4K UHD support
Power Supply
- Average Power
- 200 - 400 W/m²
- Max Power
- 550 W/m²
Warranty
- Warranty
- Standard Manufacturer Warranty
Key Features
01
Standard Straight Design
Engineered with a robust 500x1000mm straight cabinet design, offering perfect alignment and fast assembly for large flat outdoor video walls.
02

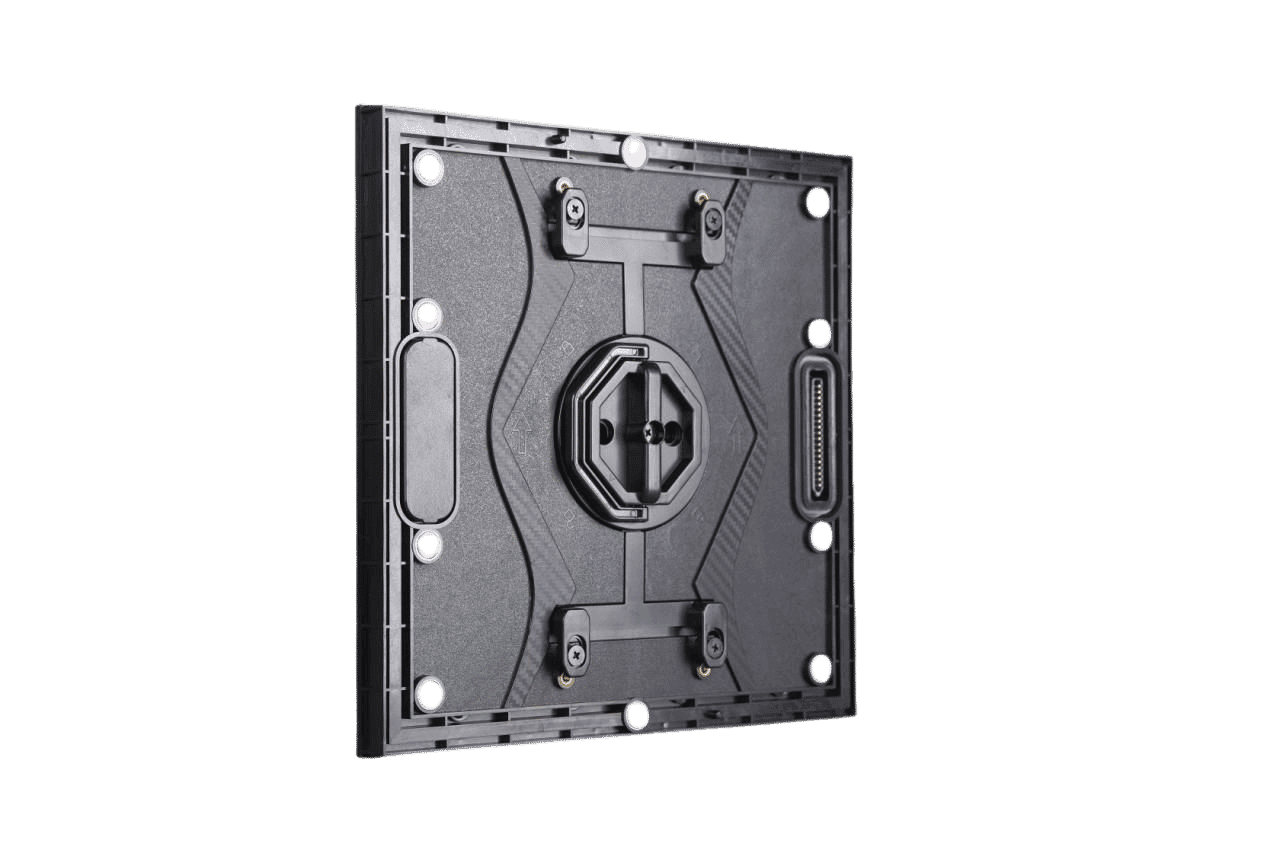

Magnetic Front Maintenance
Engineered for quick and effortless front-side module replacement using a magnetic suction design, significantly reducing maintenance downtime.
03

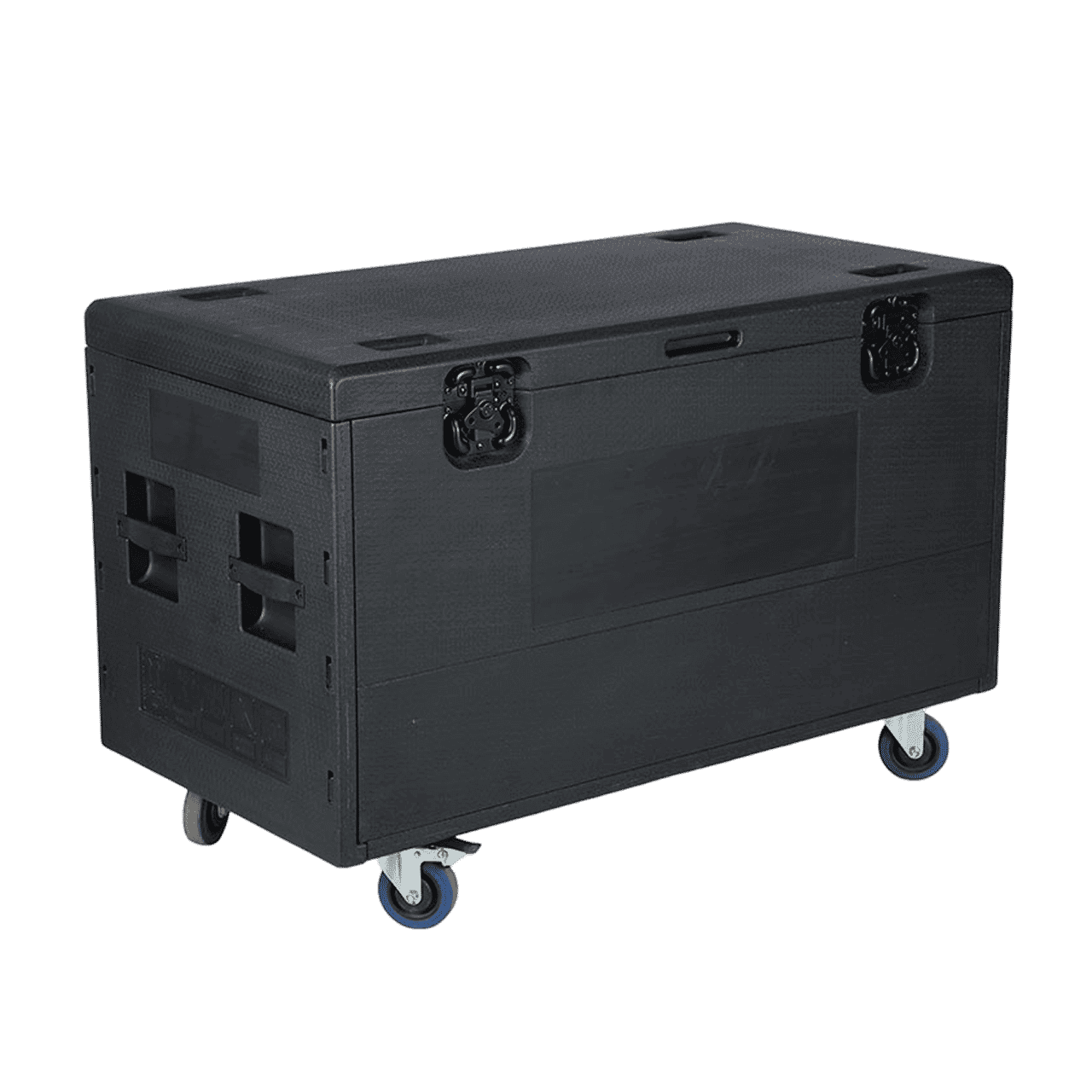

Premium Flight Case Design
Comes with a heavy-duty plastic flight case designed for the 500x1000mm cabinets, securely holding up to 6 units for safe transportation.
Technical Parameters
| Product Info | |
|---|---|
| Description | An advanced outdoor LED display featuring a 3.91mm pixel pitch and SMD1921 3-in-1 LEDs. Designed for high-end events offering an ultra-high 7680Hz refresh rate and flawless 2K/4K visual performance within a straight 500x1000mm cabinet. |
| Lifespan | 100,000 Hours |
| Applications | Outdoor events, straight stages, premium digital signage, rental applications |
| Optical | |
| Pixel Pitch | 3.91 mm |
| Pixel Density | 65,536 pixels / m² |
| Resolution | Module: 64×64 | Cabinet: 128×256 |
| Brightness | 4400 - 4800 nits (Color Temp: 8000-12000K) |
| Viewing Angle | 160° Horizontal / 120° Vertical |
| Refresh Rate | 7680 Hz |
| Gray Scale | 16384 levels |
| Physical | |
| Cabinet Material | Die cast aluminum |
| Cabinet Size | 500 × 1000 × 87 mm |
| Module Size | 250 × 250 mm |
| Cabinet Weight | 17 KG per cabinet |
| Protection | Outdoor Standard |
| Temperature Range | Working: -10~40°C | Storage: -20~60°C |
| Control System | |
| Control Mode | Constant Current Drive, 16 Scans |
| Frame Frequency | 60 Hz |
| Signal Inputs | 2K HD, 4K UHD support |
| Power Supply | |
| Average Power | 200 - 400 W/m² |
| Max Power | 550 W/m² |
| Warranty | |
| Warranty | Standard Manufacturer Warranty |
