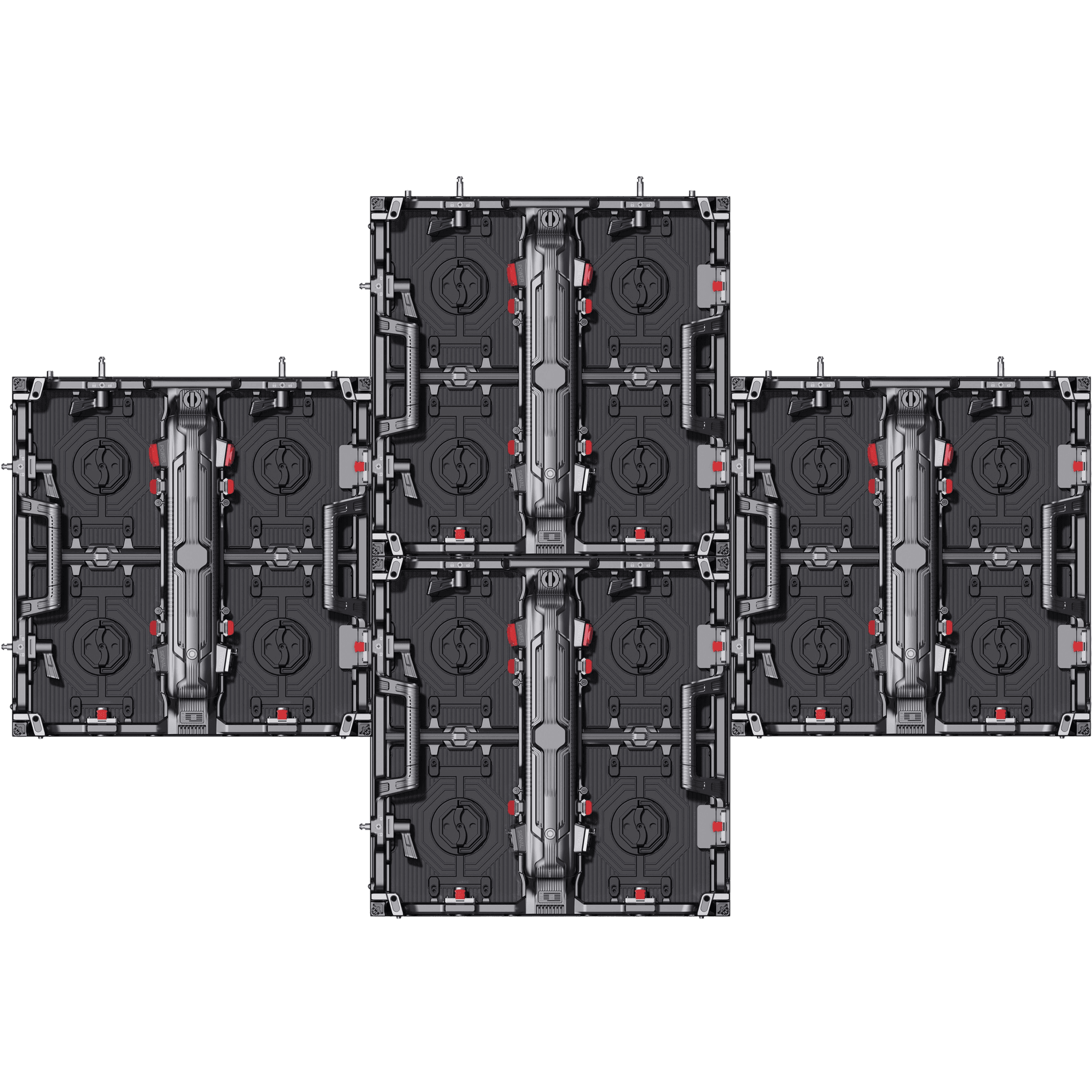

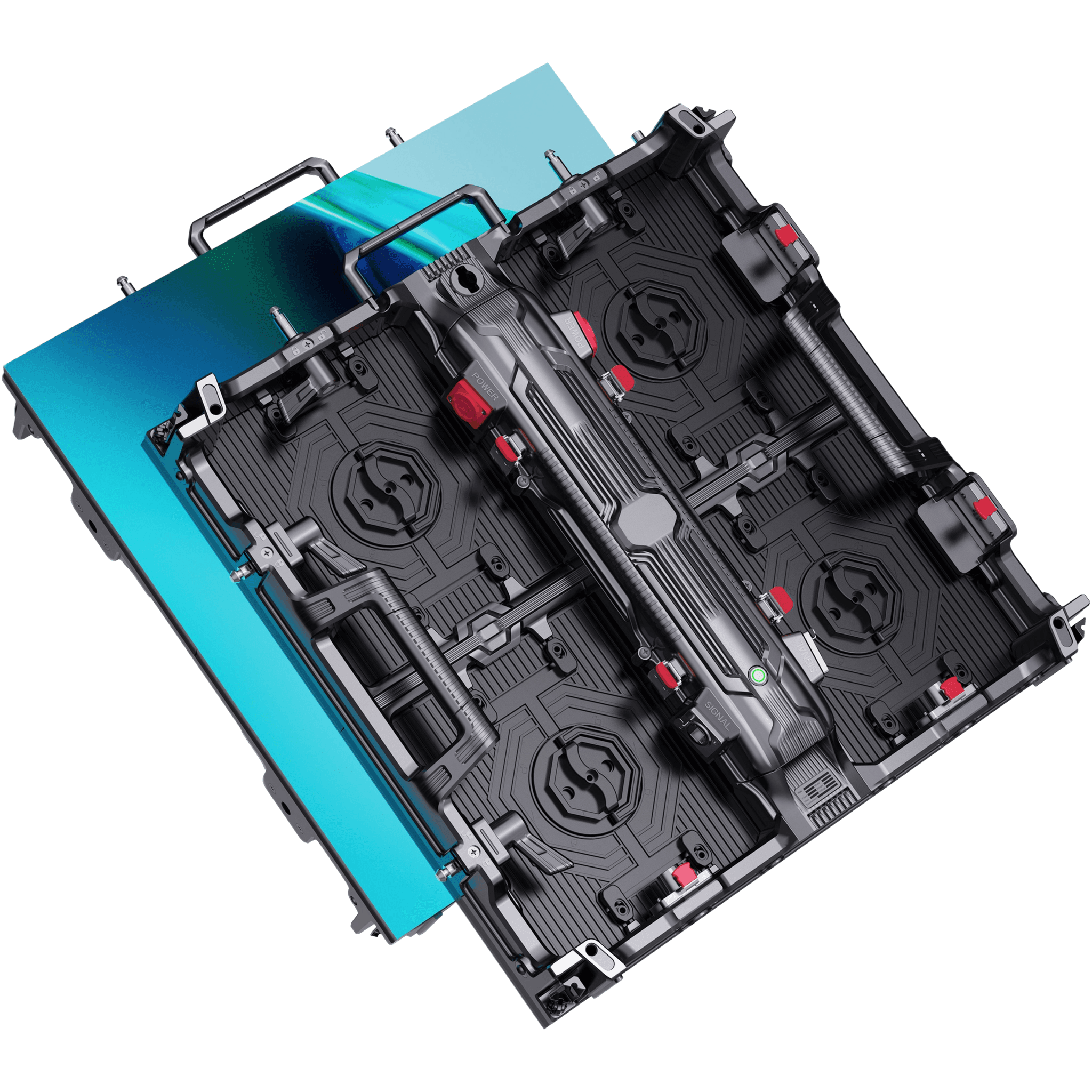

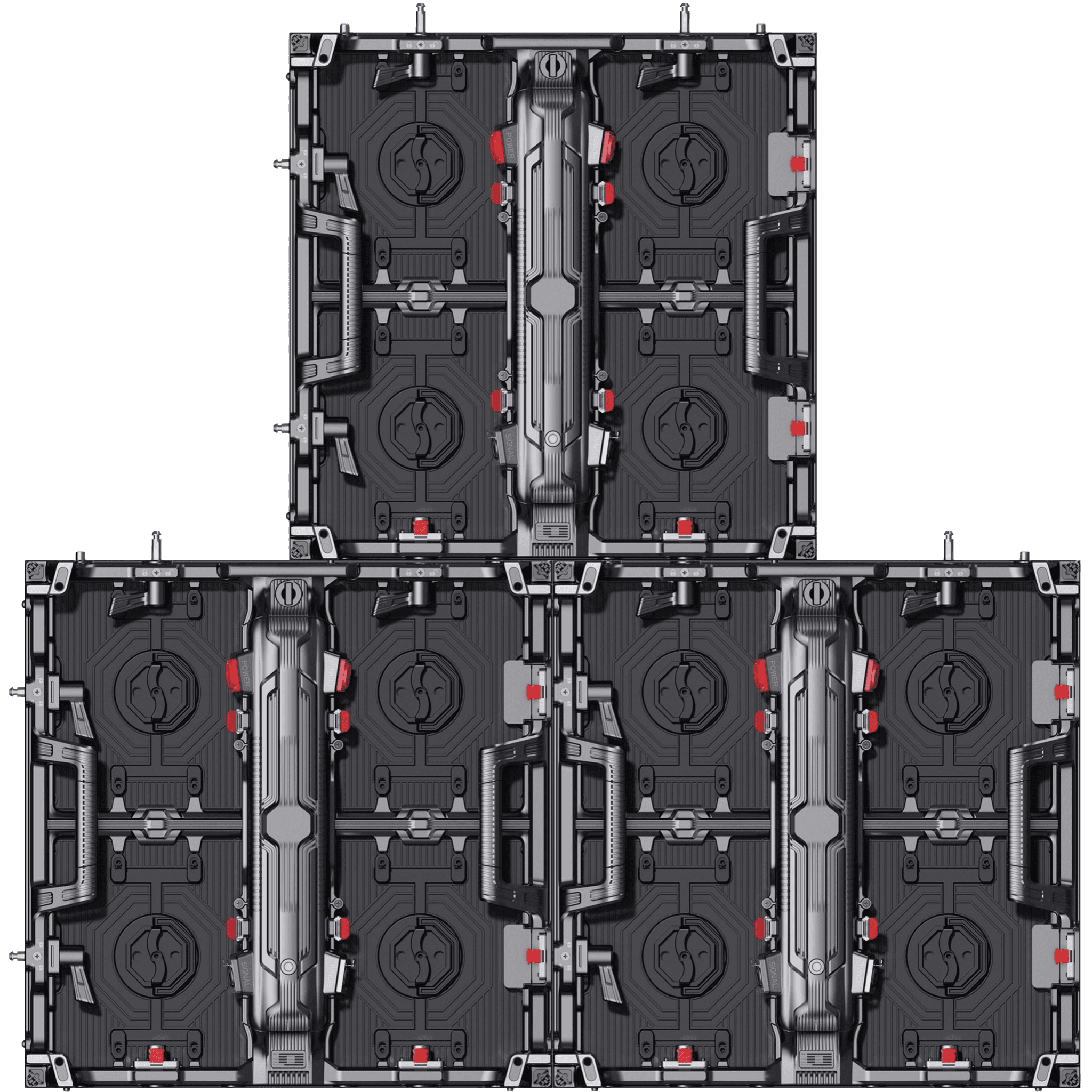

OUTDOOR P2.976 (500×500)
Compact High-Refresh Outdoor Display
A compact and robust outdoor LED display featuring a 2.976mm pixel pitch and SMD1415 3-in-1 LEDs. Delivering brilliant 4400-4800 nits brightness and an exceptional 7680Hz refresh rate, all within a modular 500x500mm die-cast aluminum frame.
Optical
- Pixel Pitch
- 2.976 mm
- Pixel Density
- 112,896 pixels / m²
- Resolution
- Module: 84×84 | Cabinet: 168×168
- Brightness
- 4400 - 4800 nits (Color Temp: 8000-12000K)
- Viewing Angle
- 160° Horizontal / 120° Vertical
- Refresh Rate
- 7680 Hz
- Gray Scale
- 16384 levels
Physical
- Cabinet Material
- Die-cast aluminum
- Cabinet Size
- 500 × 500 × 87 mm
- Module Size
- 250 × 250 mm
- Cabinet Weight
- 8.5 KG per cabinet
- Protection
- Outdoor Standard
- Temperature Range
- Working: -10~40°C | Storage: -20~60°C (No Condensation)
Control System
- Control Mode
- Constant Current Drive, 21 Scans
- Frame Frequency
- 60 Hz
- Signal Inputs
- 2K HD, 4K UHD support
Power Supply
- Average Power
- 220 - 450 W/m² (Average)
- Max Power
- 580 W/m²
Warranty
- Warranty
- Standard Manufacturer Warranty
Key Features
01

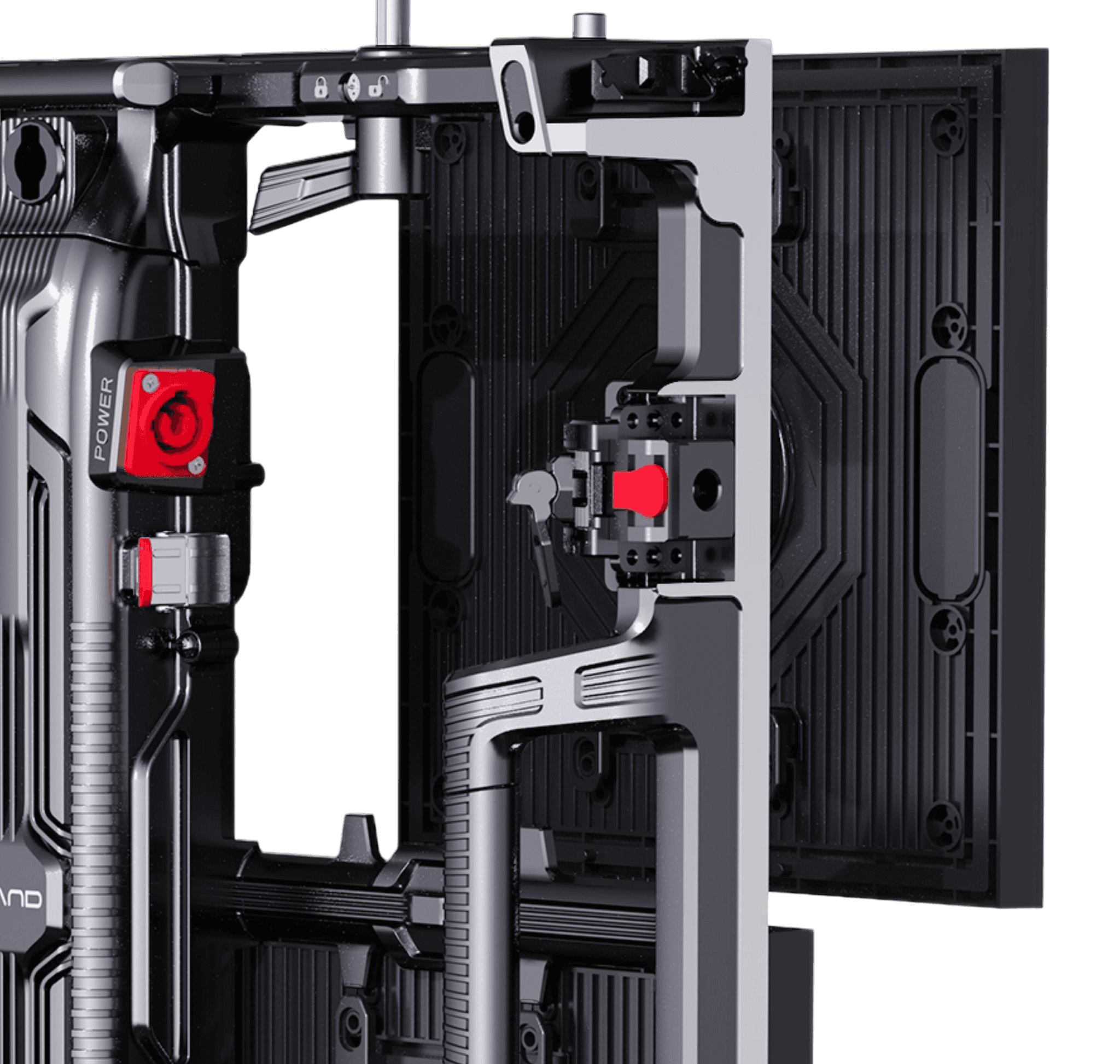

Standard Straight Design
Engineered with a robust 500x500mm die-cast aluminum cabinet, offering perfect alignment for seamless outdoor video walls.
02
Magnetic Front Maintenance
Streamlined maintenance process via front-accessible magnetic modules, saving labor and improving on-site setup speeds.
03

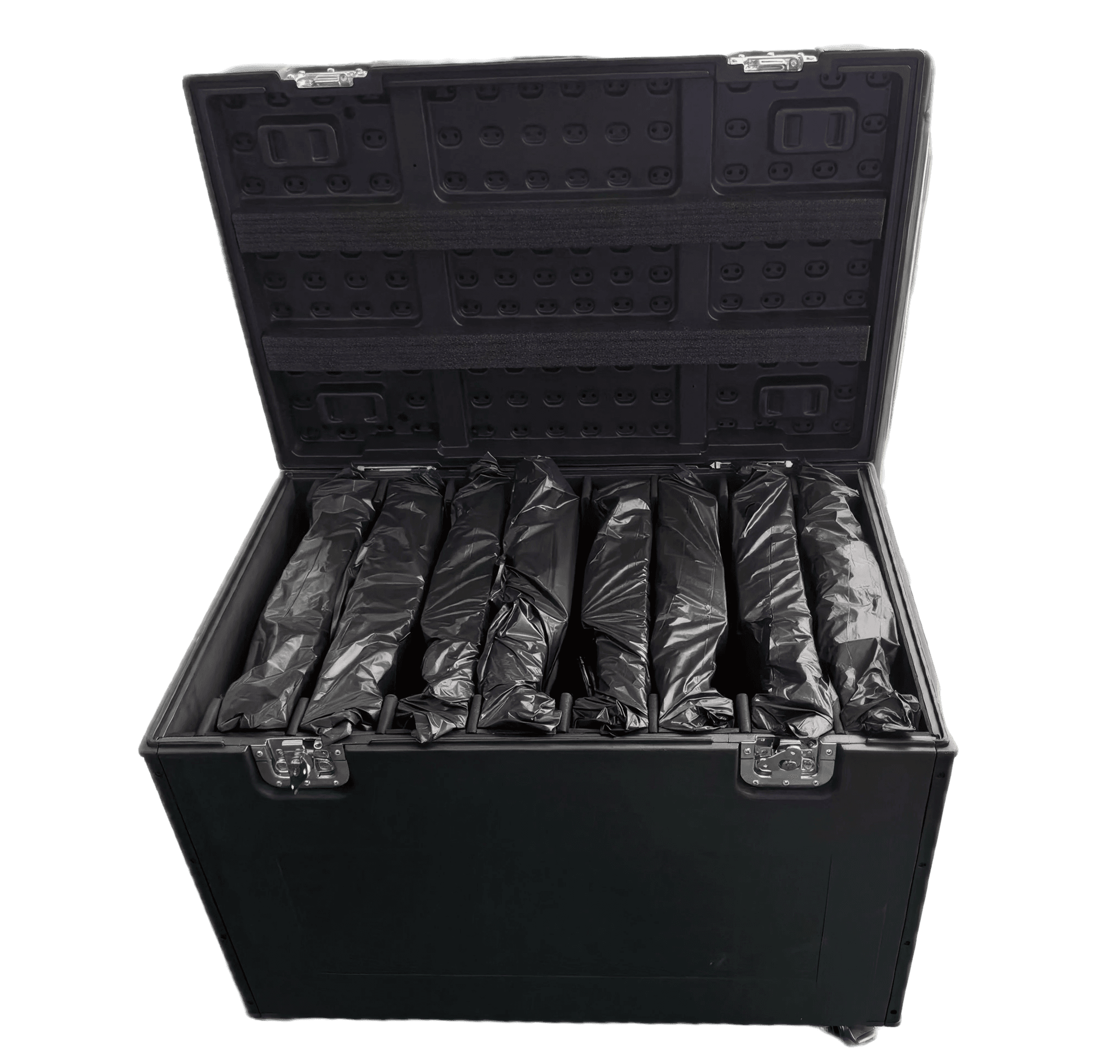

Premium Flight Case Design
Includes a sturdy transport flight case configured for 500x500mm cabinets, easily accommodating up to 8 units to streamline logistics.
Technical Parameters
| Product Info | |
|---|---|
| Description | A compact and robust outdoor LED display featuring a 2.976mm pixel pitch and SMD1415 3-in-1 LEDs. Delivering brilliant 4400-4800 nits brightness and an exceptional 7680Hz refresh rate, all within a modular 500x500mm die-cast aluminum frame. |
| Lifespan | 100,000 Hours |
| Applications | Concerts, outdoor stages, architectural displays, mobile rentals |
| Optical | |
| Pixel Pitch | 2.976 mm |
| Pixel Density | 112,896 pixels / m² |
| Resolution | Module: 84×84 | Cabinet: 168×168 |
| Brightness | 4400 - 4800 nits (Color Temp: 8000-12000K) |
| Viewing Angle | 160° Horizontal / 120° Vertical |
| Refresh Rate | 7680 Hz |
| Gray Scale | 16384 levels |
| Physical | |
| Cabinet Material | Die-cast aluminum |
| Cabinet Size | 500 × 500 × 87 mm |
| Module Size | 250 × 250 mm |
| Cabinet Weight | 8.5 KG per cabinet |
| Protection | Outdoor Standard |
| Temperature Range | Working: -10~40°C | Storage: -20~60°C (No Condensation) |
| Control System | |
| Control Mode | Constant Current Drive, 21 Scans |
| Frame Frequency | 60 Hz |
| Signal Inputs | 2K HD, 4K UHD support |
| Power Supply | |
| Average Power | 220 - 450 W/m² (Average) |
| Max Power | 580 W/m² |
| Warranty | |
| Warranty | Standard Manufacturer Warranty |
