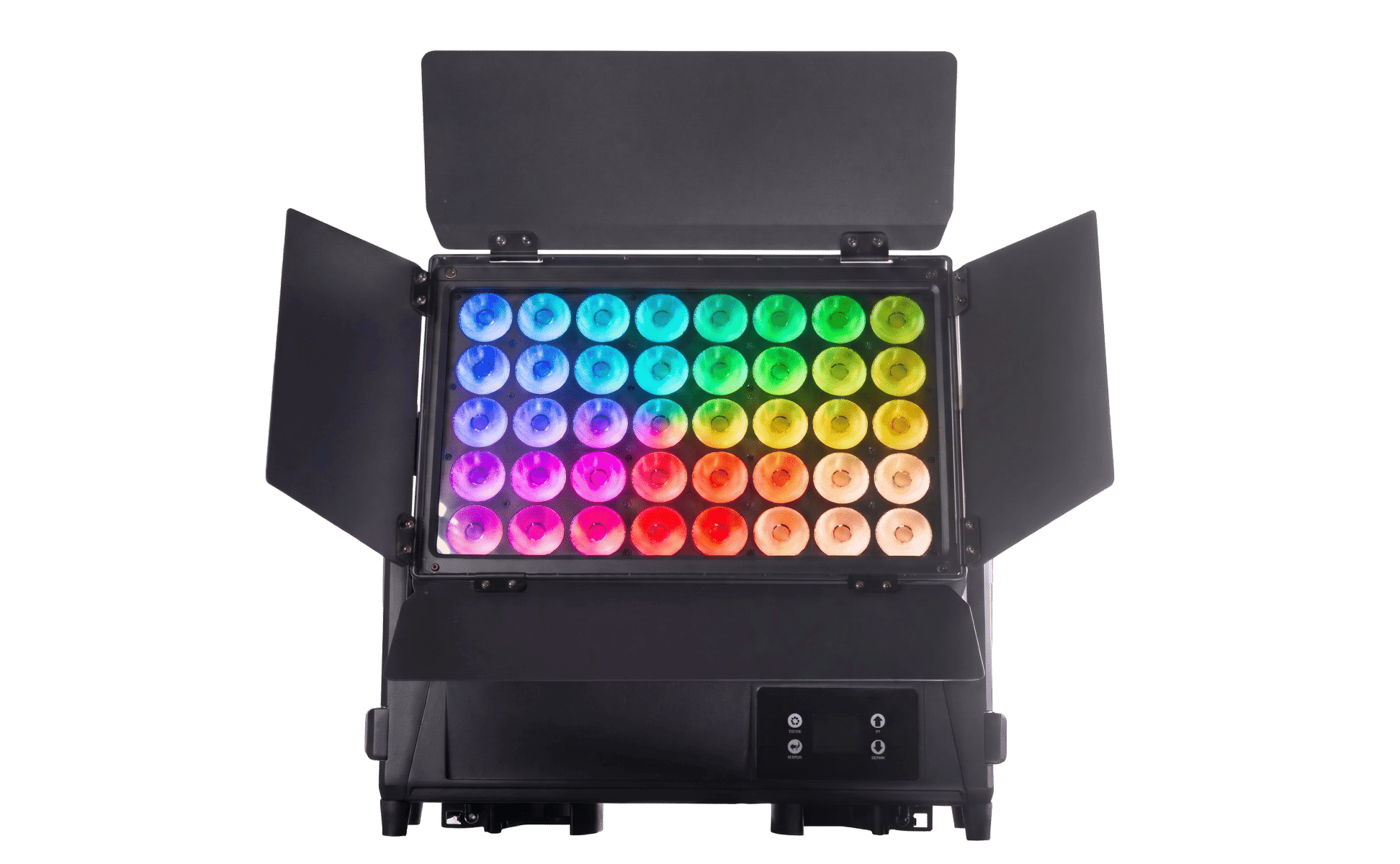

CITY COLOR 4040 IP65
Unmatched Power. Seamless Coverage.
The City Color 4040 IP65 is a true architectural powerhouse, engineered to illuminate large-scale facades, monuments, and massive outdoor stages. Equipped with 40 individually controllable 40W RGBW LEDs, it consumes 1280W of power to produce a stunning, ultra-bright color wash that can transform any landscape or structure.
Featuring a perfectly optimized 40° lens angle, this fixture guarantees flawless color blending without harsh hotspots. Its heavy-duty IP65 waterproof housing ensures reliable performance in heavy rain or extreme temperatures. With support for Art-Net, RDM, and up to 175 DMX channels, lighting professionals can create complex, dynamic pixel-mapped shows effortlessly.
Technical Parameters
Optics & Light Source
- Source: 40x 40W RGBW High-Power LEDs
- Beam Angle: 40° for superior wall-washing
- Color Temperature: Adjustable from 2800K to 8500K (CRI ≥ 70)
Dynamic Effects
- Pixel Mapping: Individually controllable LEDs for chasing and matrix effects
- Dimming: 0-100% ultra-smooth electronic fading
- Strobe: 1-25Hz high-speed shutter with multiple effects
Control & Programming
- Protocols: DMX512, RDM, Art-Net, Auto, Master/Slave
- DMX Channels: 9 / 15 / 160 / 163 / 175 CH modes
- Connectivity: Waterproof RJ45 (In/Out) and 3-pin XLR
Electrical & Physical
- Power Consumption: 1280W (AC100-240V, 50/60Hz)
- Protection: IP65 Rated for all-weather outdoor operation
- Dimensions: 510 x 92.5 x 440 mm
- Weight: 19 kg (Die-cast aluminum chassis)

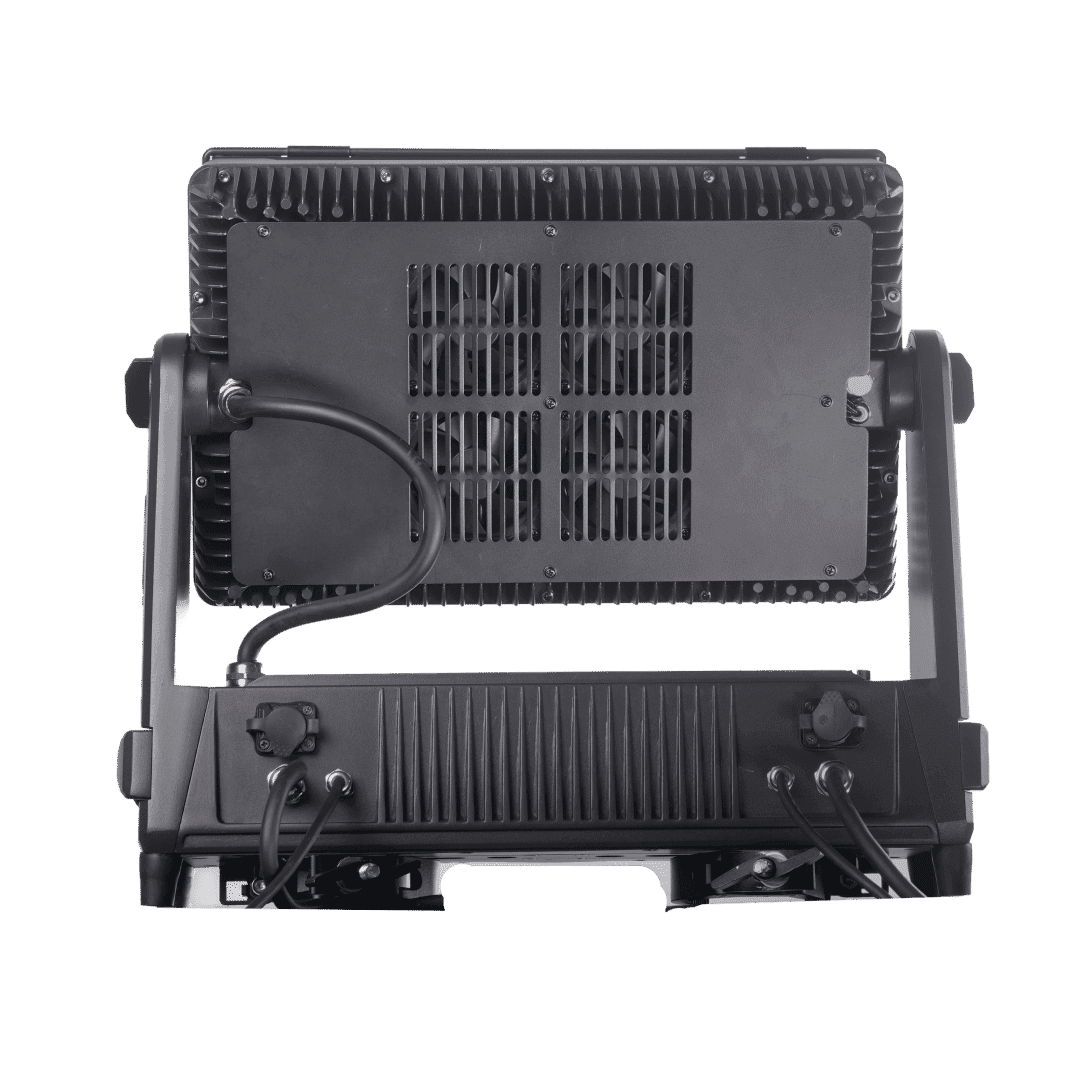

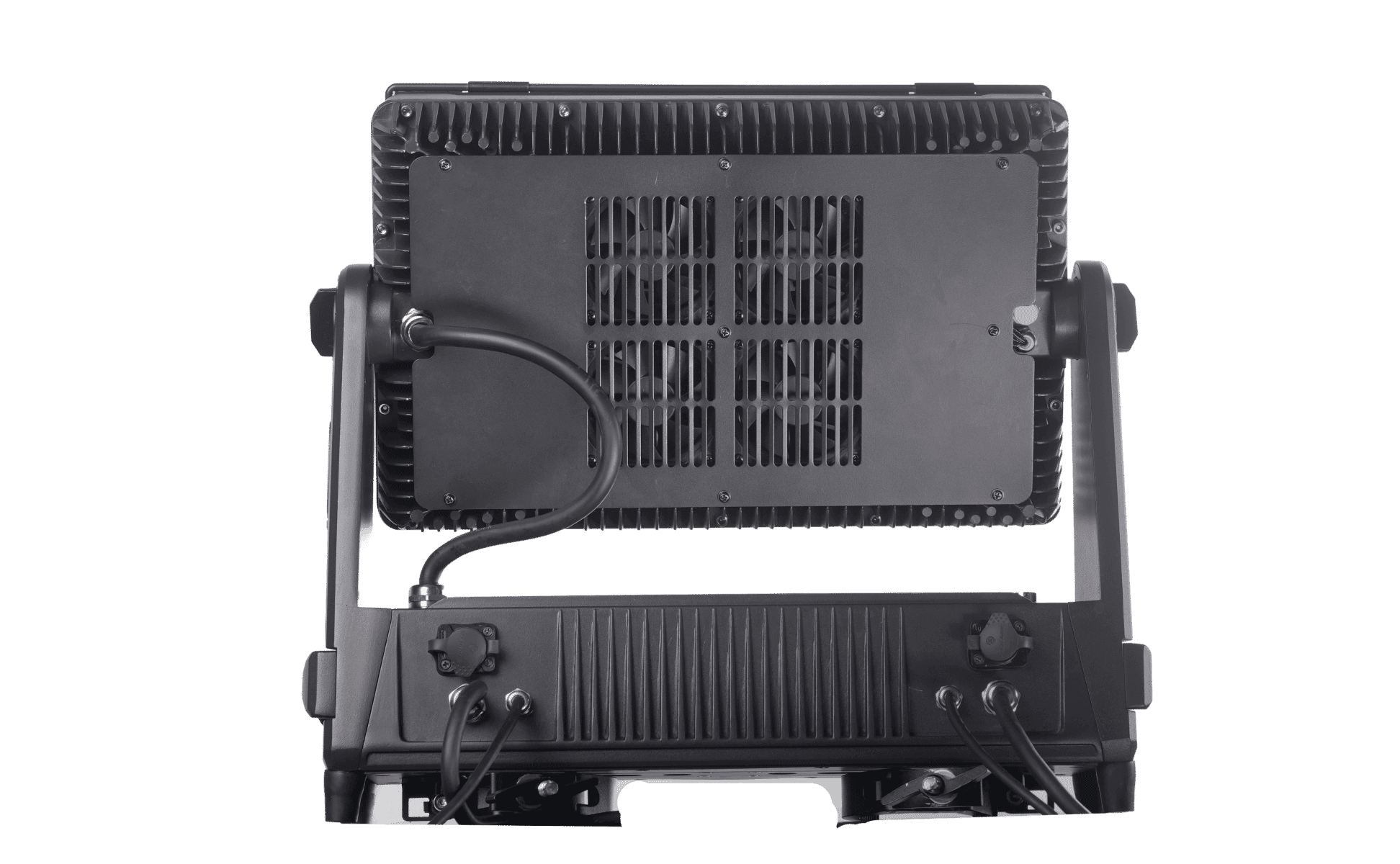

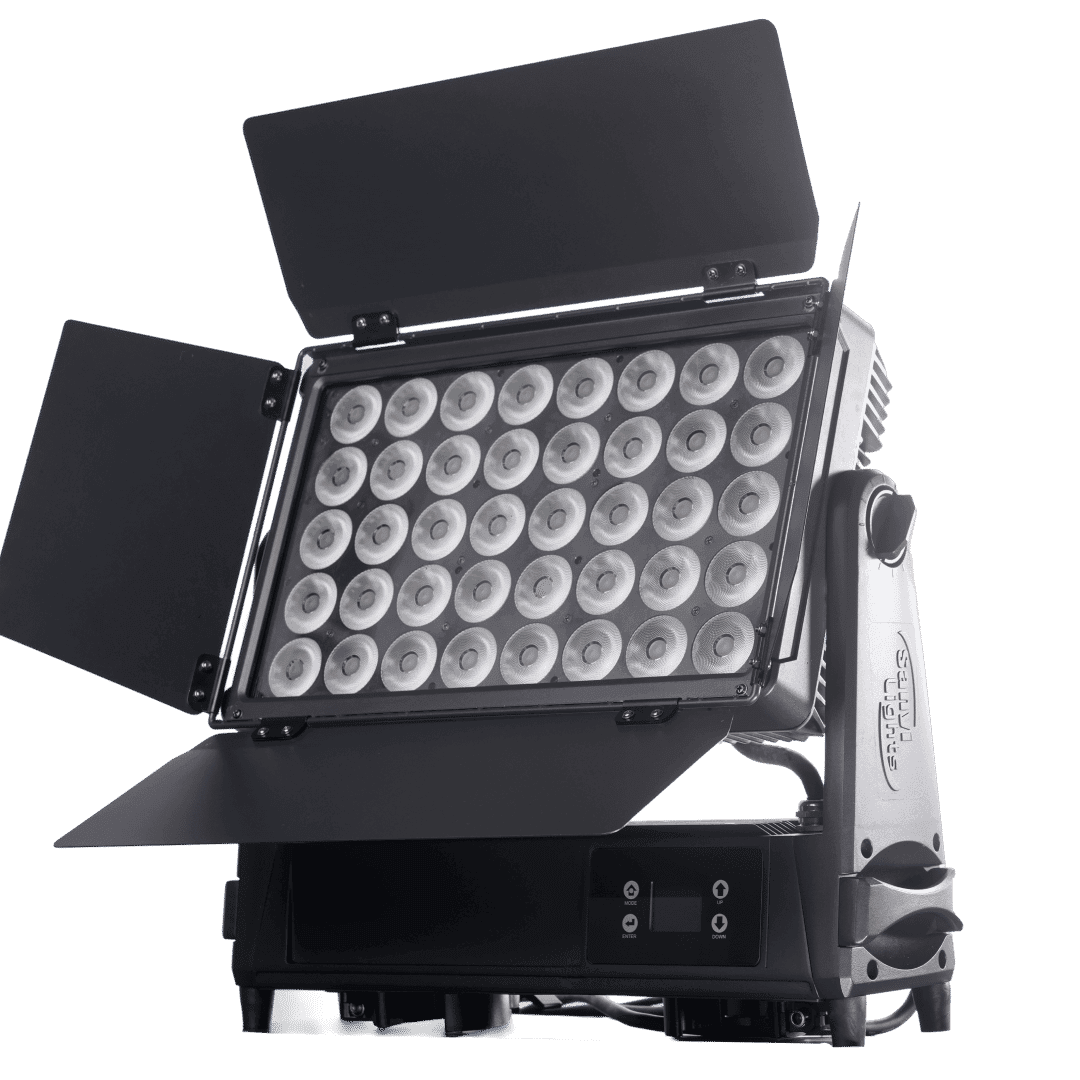

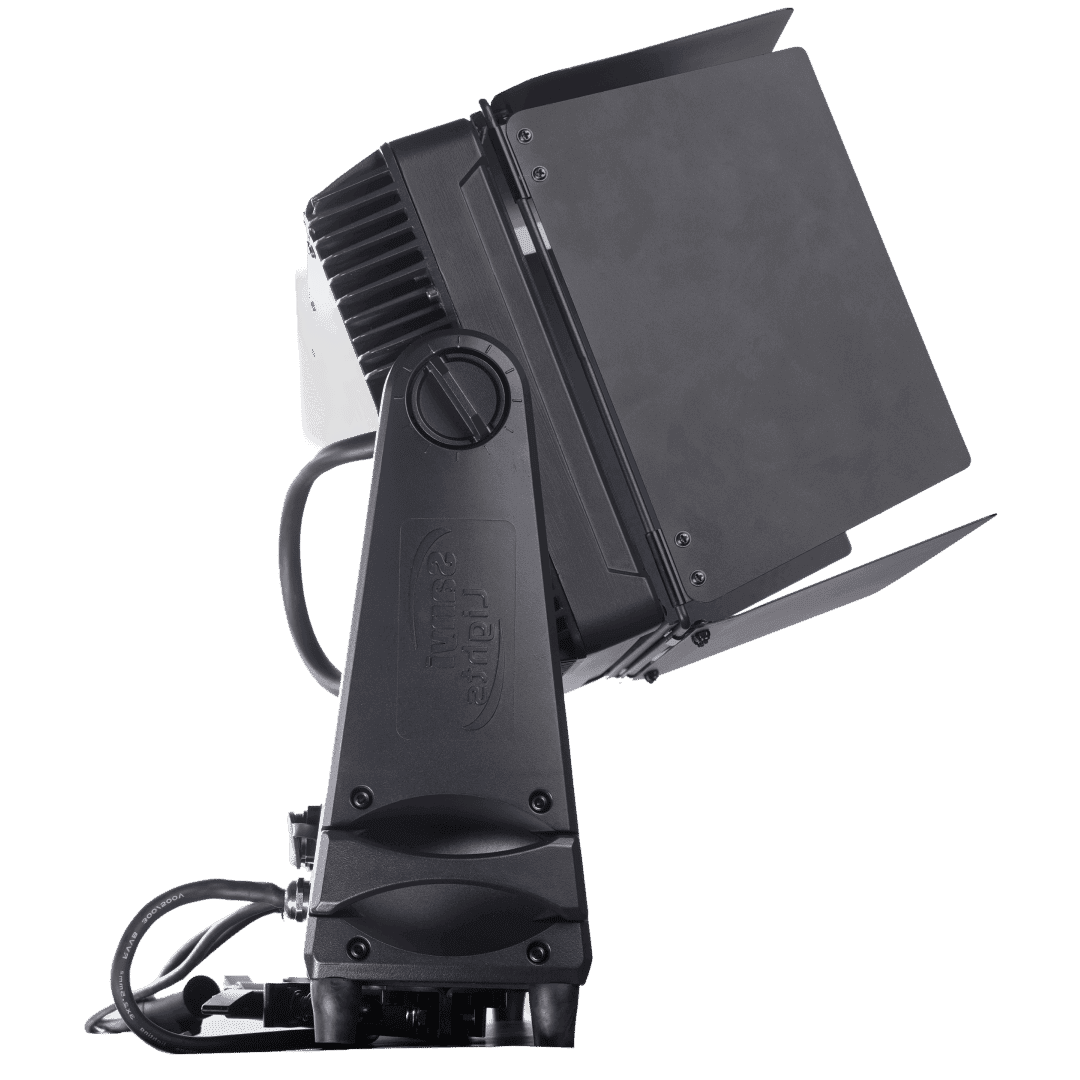

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
Download All (ZIP)
