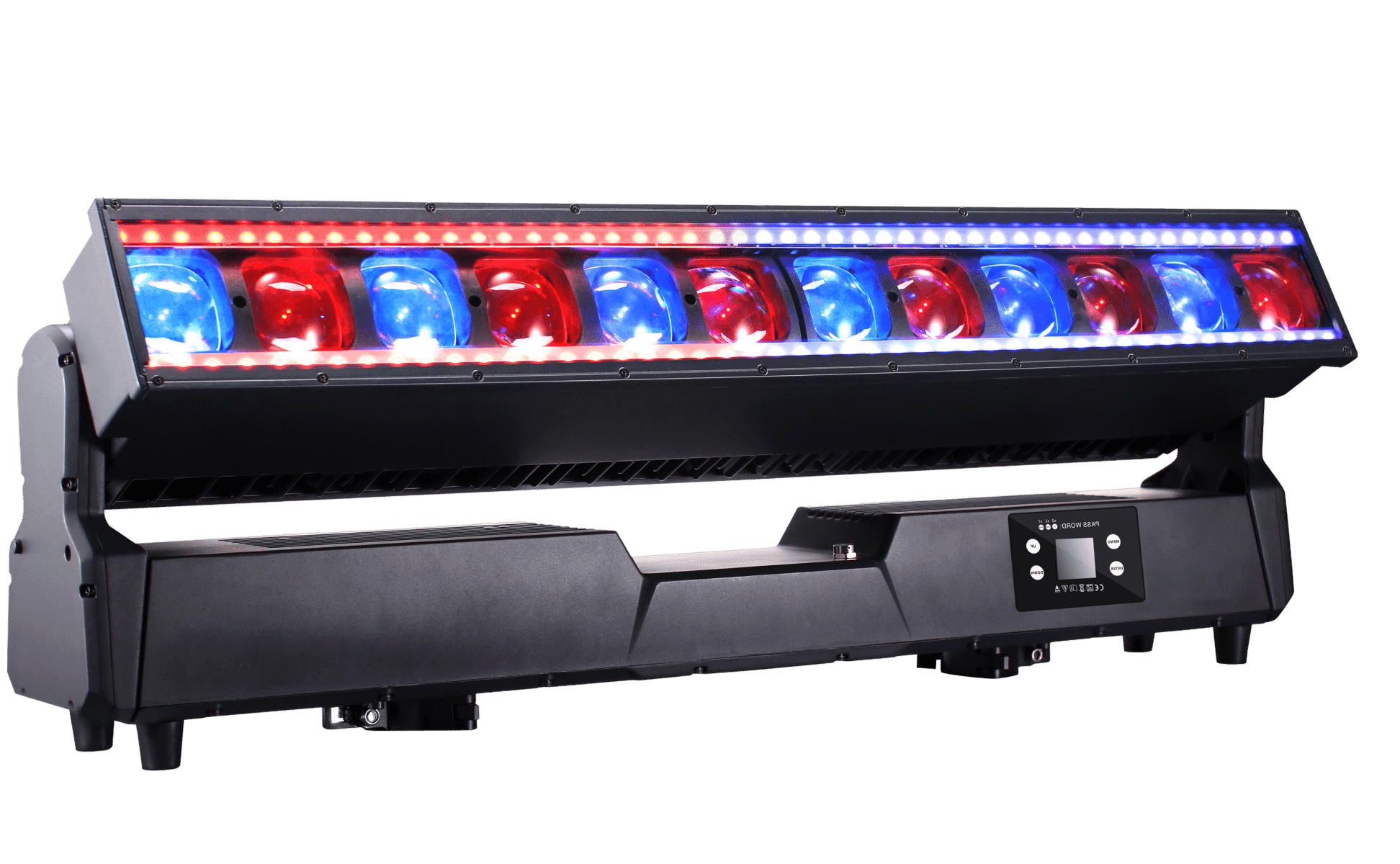

LED MAGIC 1260 YZ IP65
All-Weather Power. Flawless Precision.
The Bar Light 1260 YZ IP is a heavy-duty, waterproof version of our flagship moving bar. It combines 12x 60W RGBW main LEDs with an incredible array of 96x 1.5W RGB, 96x WW, and 96x CW auxiliary LEDs to produce mind-blowing visual depth and unmatched brightness outdoors.
Engineered for tours and permanent outdoor installations, its IP65 casing protects against the harshest elements. It features seamless connection capabilities, a motorized 4°-32° zoom, a 220° tilt, and massive multi-channel DMX profiles (up to 180 channels) for ultimate pixel-perfect programming.
Technical Parameters
Optics & Light Source
- Main Source: 12x 60W RGBW 4-in-1 LEDs
- Auxiliary LEDs: 96x RGB, 96x WW (Warm White), 96x CW (Cool White)
- Zoom Range: Motorized 4° - 32°
- Lifespan: 50,000 hours
Dynamic Effects
- Pixel Control: Single pixel mapping across main and auxiliary LEDs
- Dimming: 0-100% linear dimmer
- Strobe: Adjustable 1-25Hz high-speed strobe
Control & Movement
- Tilt: 220° fast movement through high torque motors
- Control Modes: DMX / Master-Slave / Auto / Sound
- DMX Channels: 19 / 29 / 109 / 118 / 178 / 180 CH
- Display: LCD color display
Electrical & Physical
- Power Consumption: 920W (AC100-240V, 50/60Hz)
- Protection: IP65 Rated (Fully waterproof)
- Cooling: Temperature-controlled fan cooling
- Dimensions: 1020 x 150 x 370 mm | Weight: 26 kg

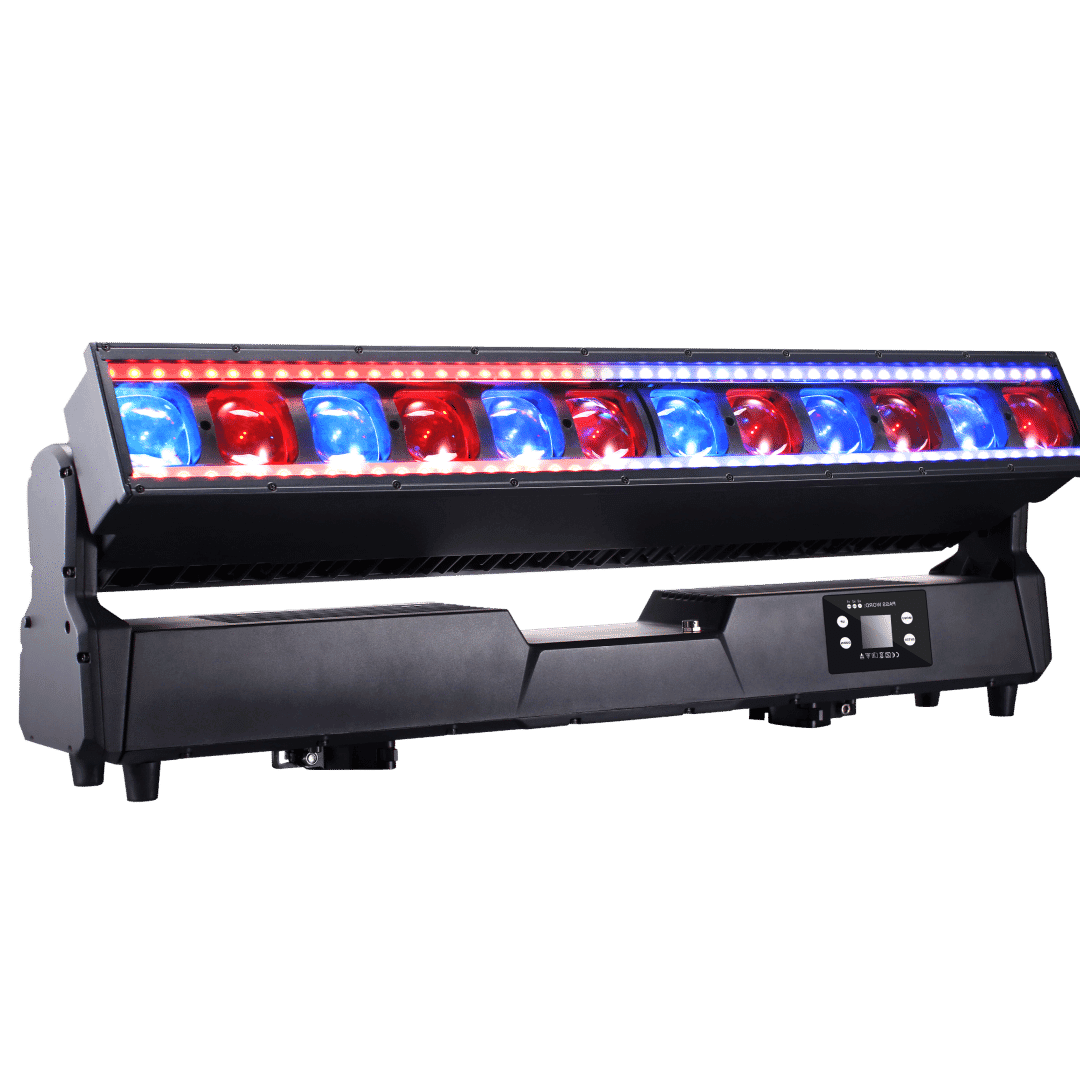

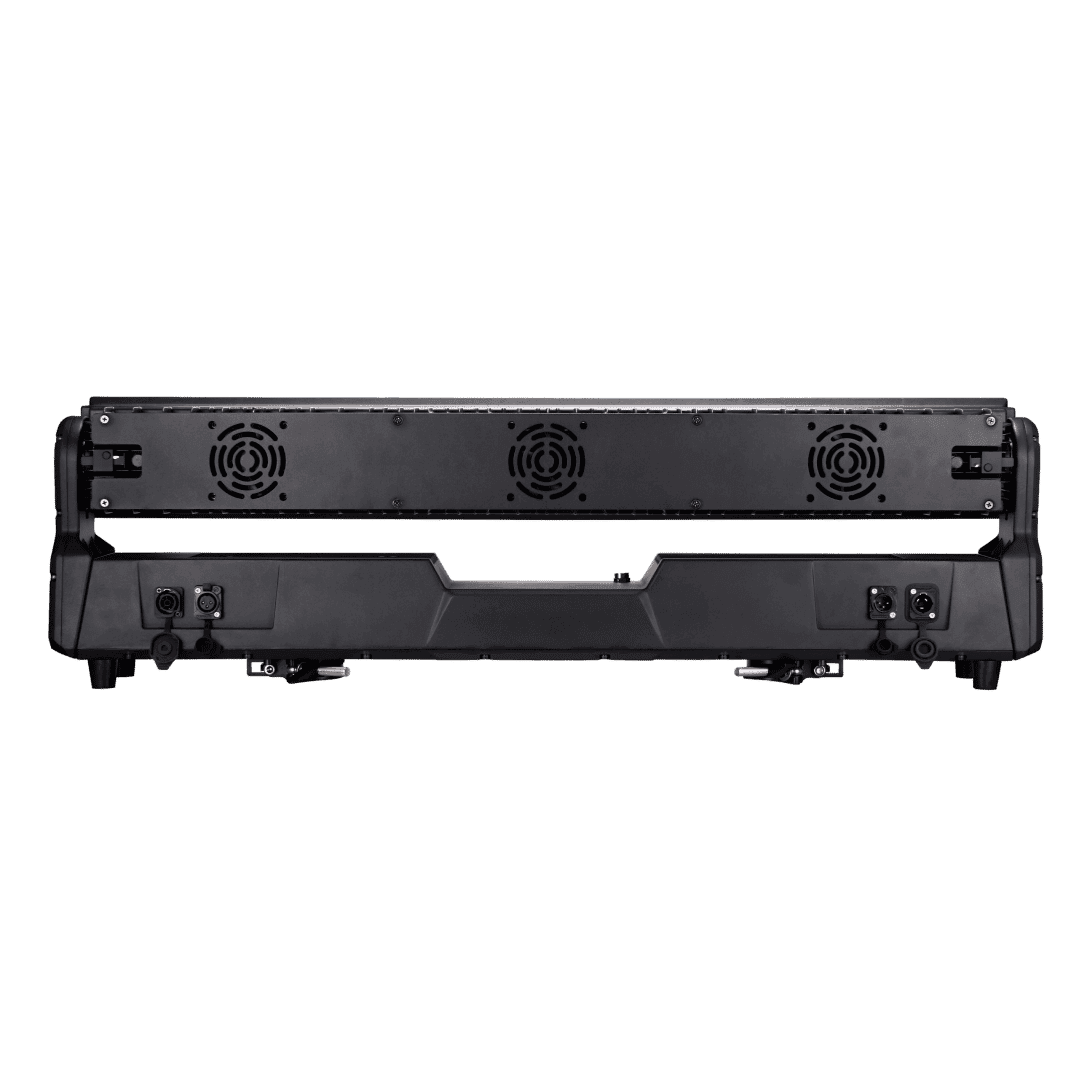

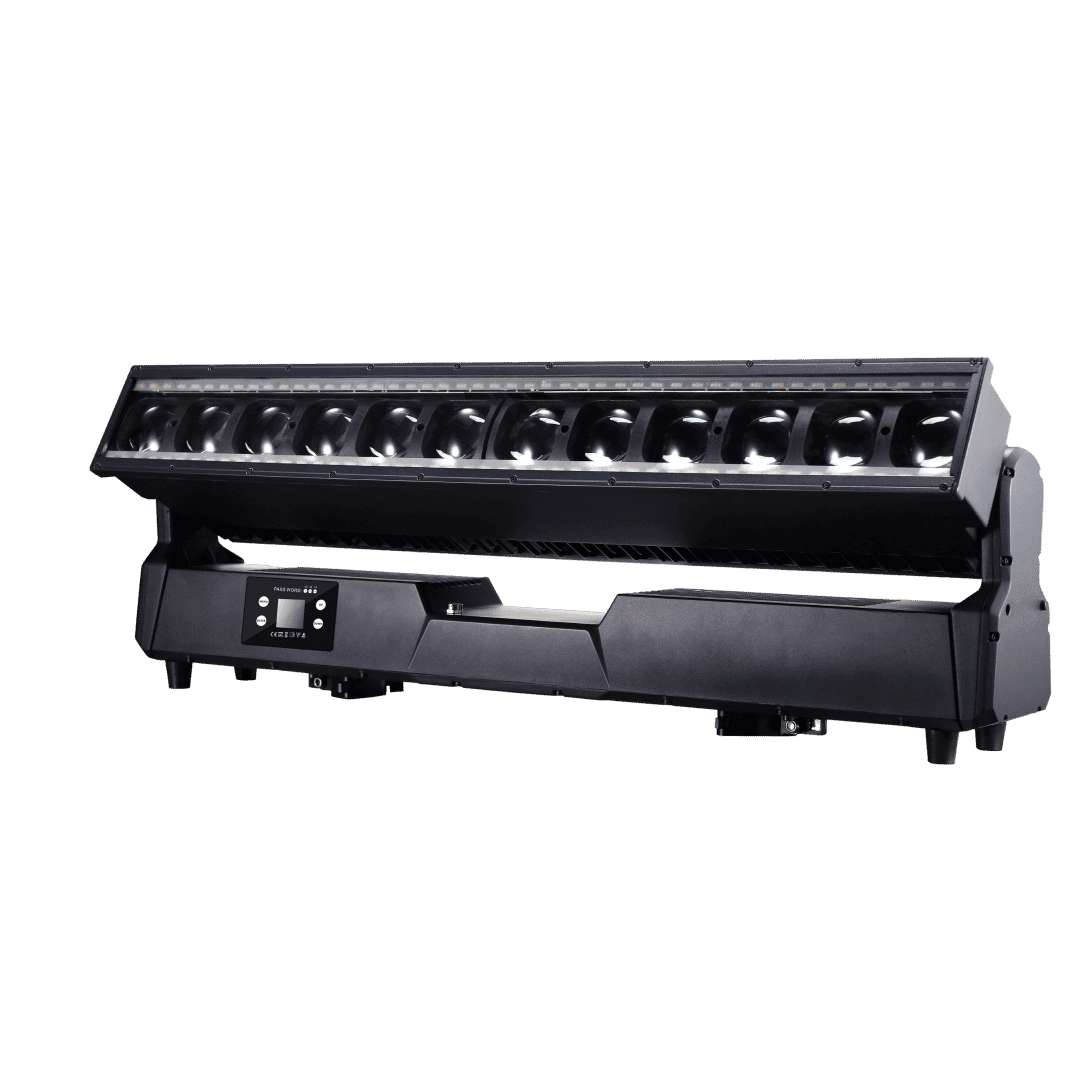

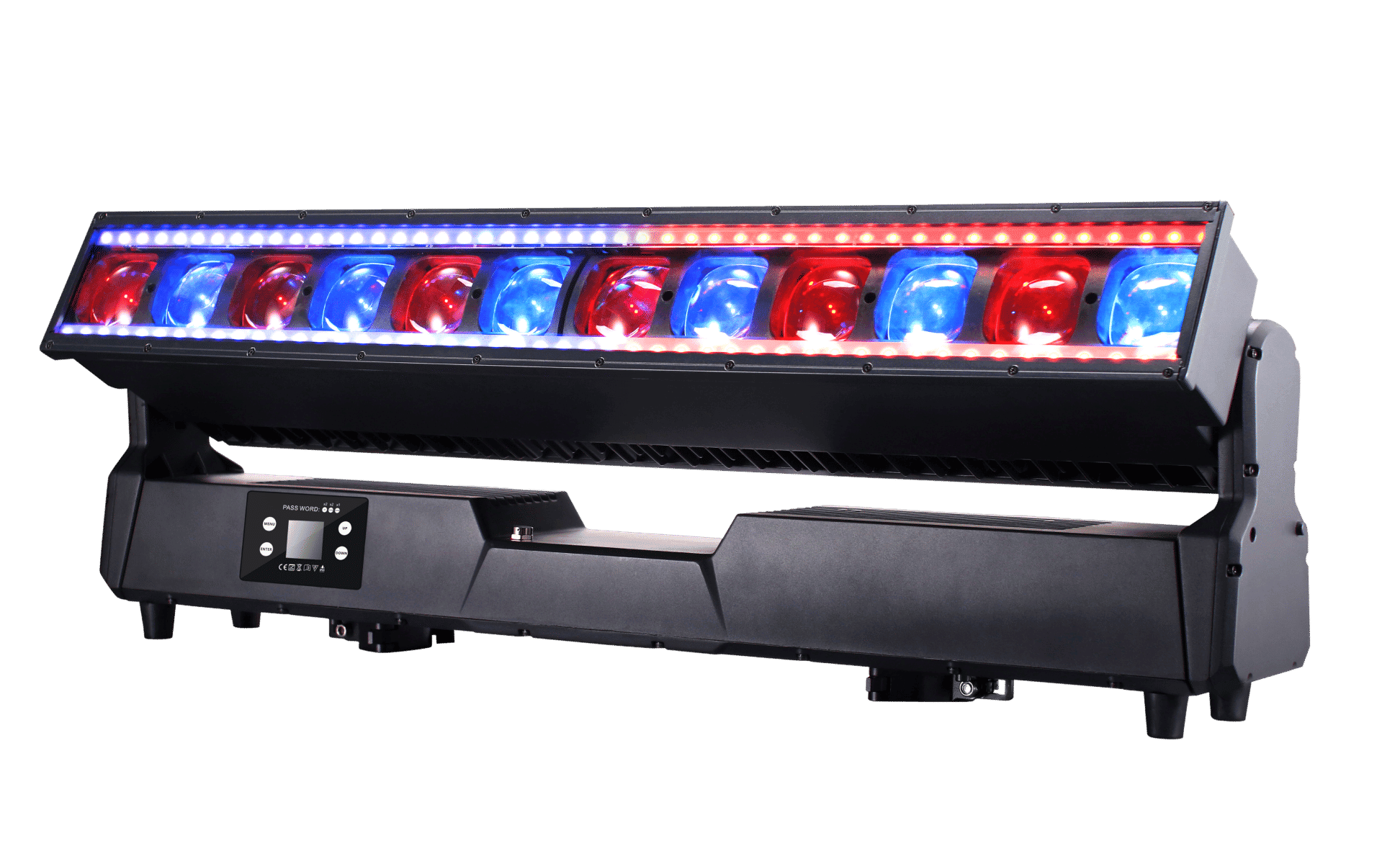

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
