SPARK 380 BSW HYBRID
The Ultimate 3-in-1. Unmatched Versatility.

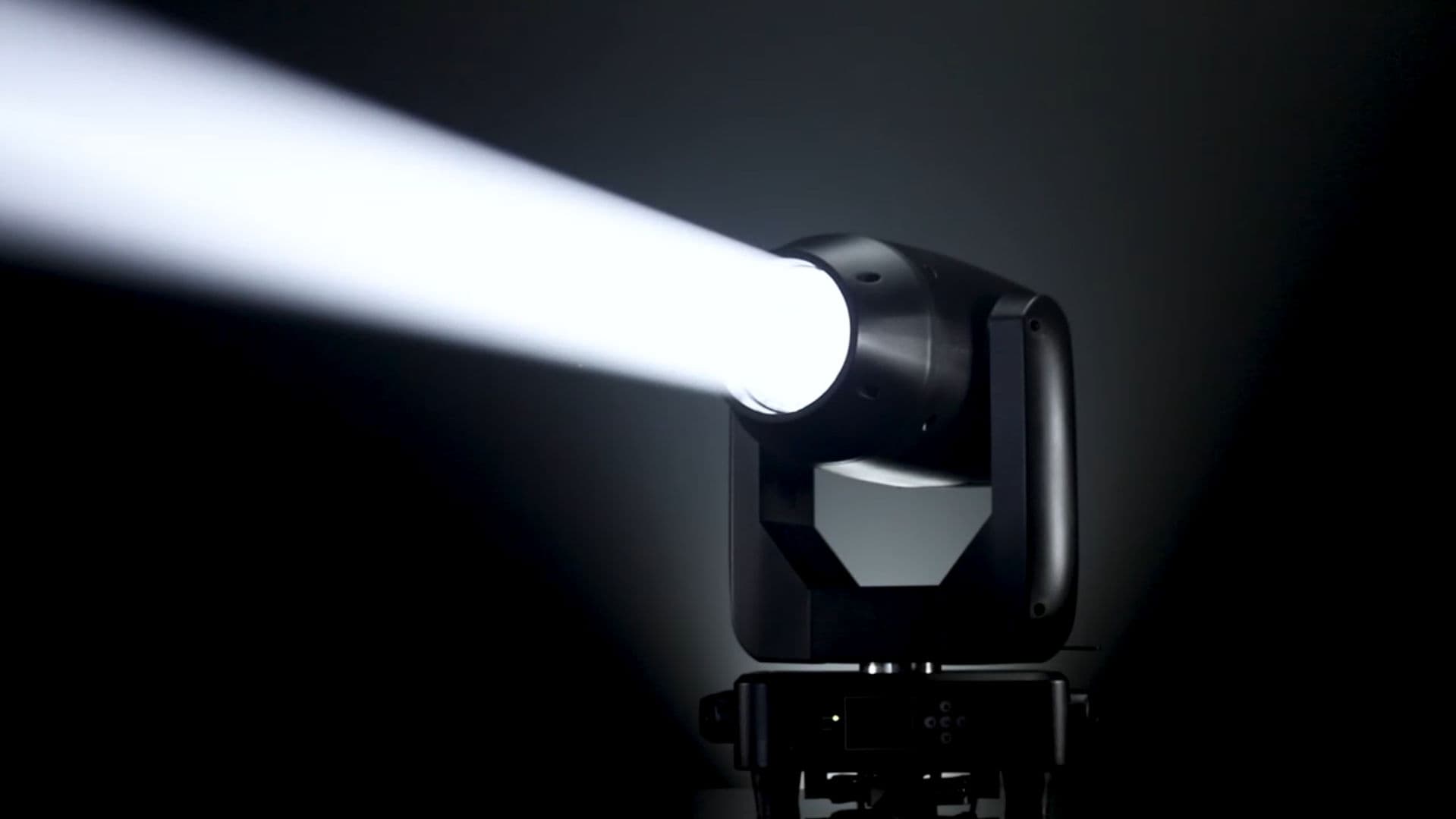

The SPARK 380 BSW is a premium 3-in-1 hybrid luminaire engineered to deliver flawless Beam, Spot, and Wash capabilities in a single, compact body. Driven by a high-efficiency 380W lamp with a crisp 7800K color temperature, it utilizes a massive 138mm front lens to project an intense, razor-sharp 3° beam. Outputting a staggering 775,000 lux at 5 meters, this IP20-rated fixture consumes just 520W of power while offering rapid, 16-bit precision movement (540° Pan / 270° Tilt) with auto-correction, making it the ultimate tool for indoor stages, theaters, and television studios.
Equipped with a comprehensive creative toolkit, the 380 BSW features a 12-slot color wheel, a rotating gobo wheel (7 patterns), a static gobo wheel (11 patterns), and an advanced animation wheel for dynamic fire and water effects. Aerial textures are multiplied by dual bi-directional rotatable prisms (8-facet and 16-facet). Complete with an independent frost filter, a vibrant rainbow effect, electronic focus, and a linear zoom system, everything is easily managed via an intuitive LCD touch screen with 5 tactile buttons.
Technical Parameters
Optics & Light Source
- Source: 380W Lamp, 7800K color temperature
- Expected Lifespan: 2000 hours
- Beam Angle: 3° (138mm Front Lens)
- Dimming: 0-100% linear dimming

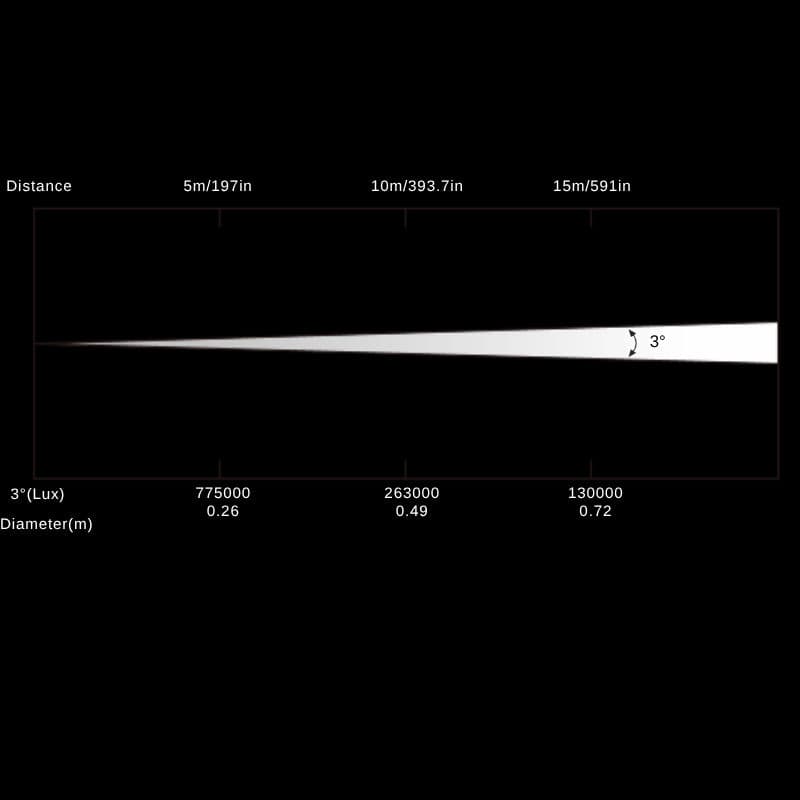

- Illuminance: 775,000 lux @ 5m / 263,000 lux @ 10m / 130,000 lux @ 15m
Dynamic Effects

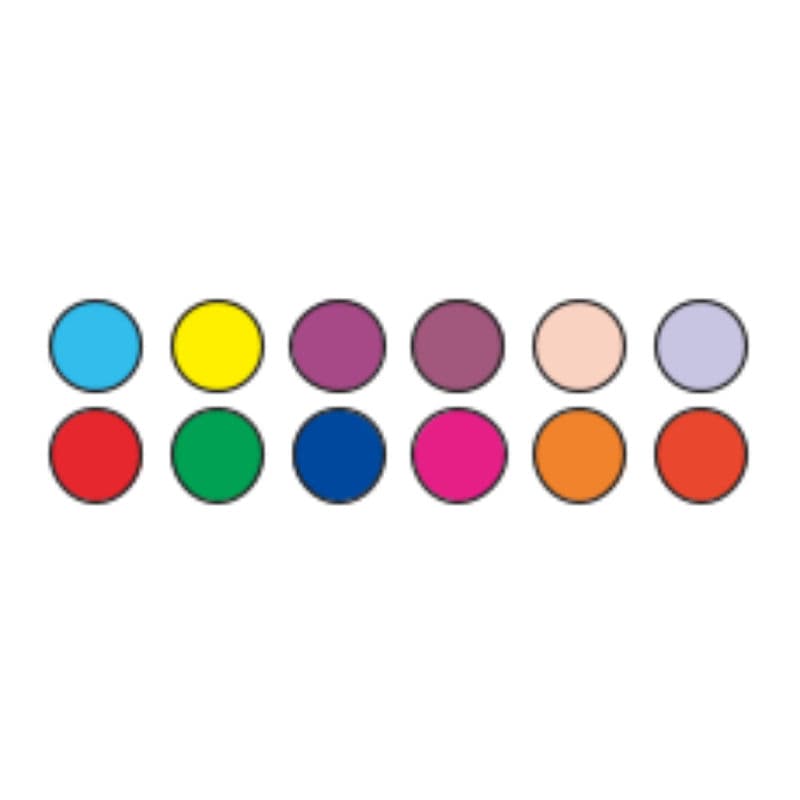

- Color Wheel: 12 colors + white (with rainbow effect)

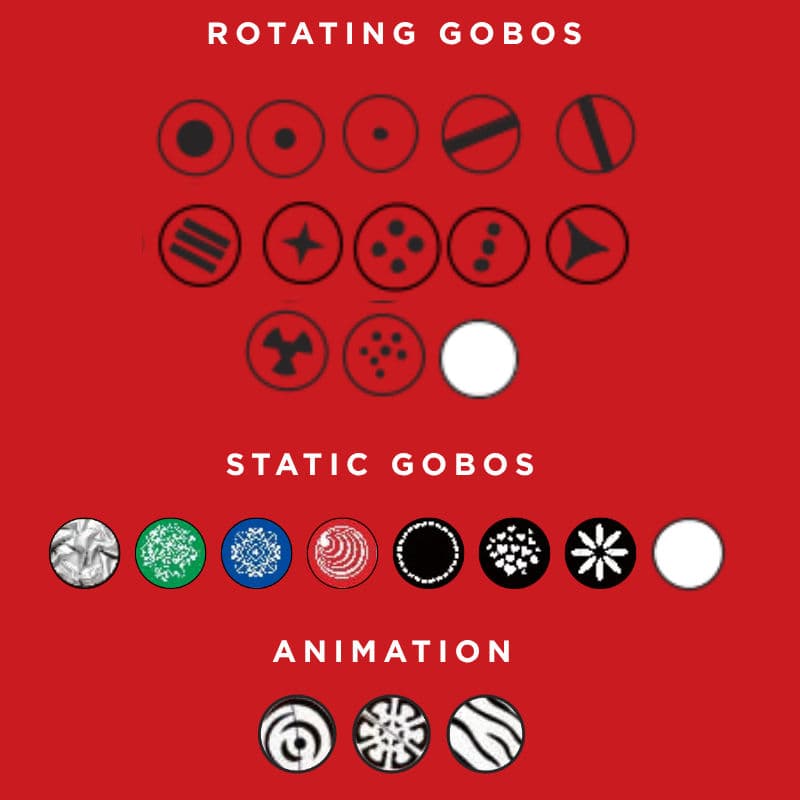

- Rotating Gobos: 7 patterns + white
- Static Gobos: 11 patterns + white circle + 1 filter
- Animation Wheel: Dynamic effects integration (2+1+1)
- Prisms: 1x 8-facet, 1x 16-facet (bi-directional rotation)
- Optics: Electronic focus, Linear zoom, Independent frost
- Strobe: Built-in multiple strobe effects (15/25 Hz)
Control & Movement
- DMX Channels: 20/24CH
- Pan: 540° (16-bit precision, auto-correction)
- Tilt: 270° (16-bit precision, auto-correction)
- Control Modes: DMX512 / Master-Slave / Auto / Sound
- Display: LCD touch screen with 5 buttons
- Updates: Software update via DMX connection
Electrical & Physical
- Input Power: AC100-240V, 50/60Hz
- Power Consumption: 520W

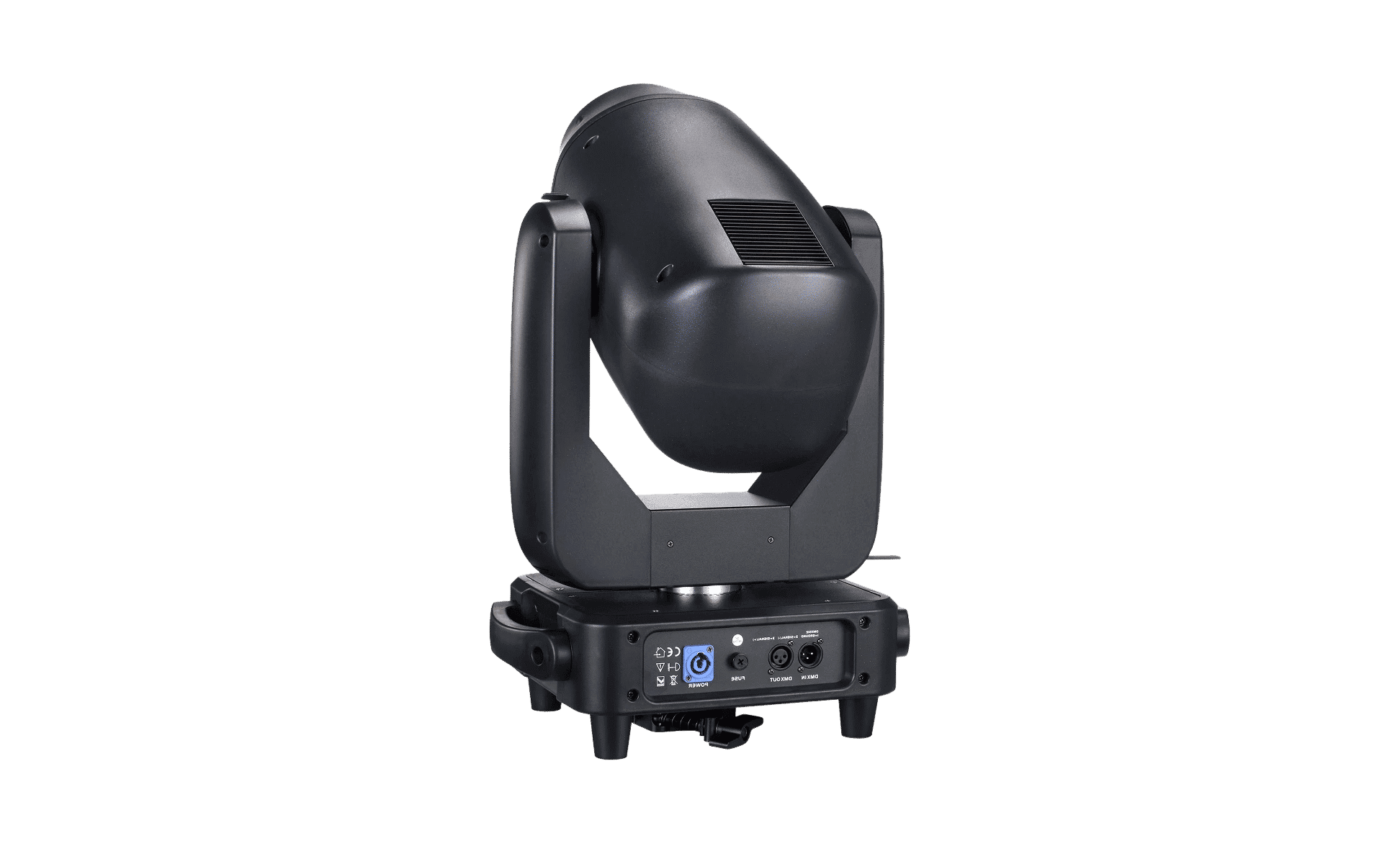

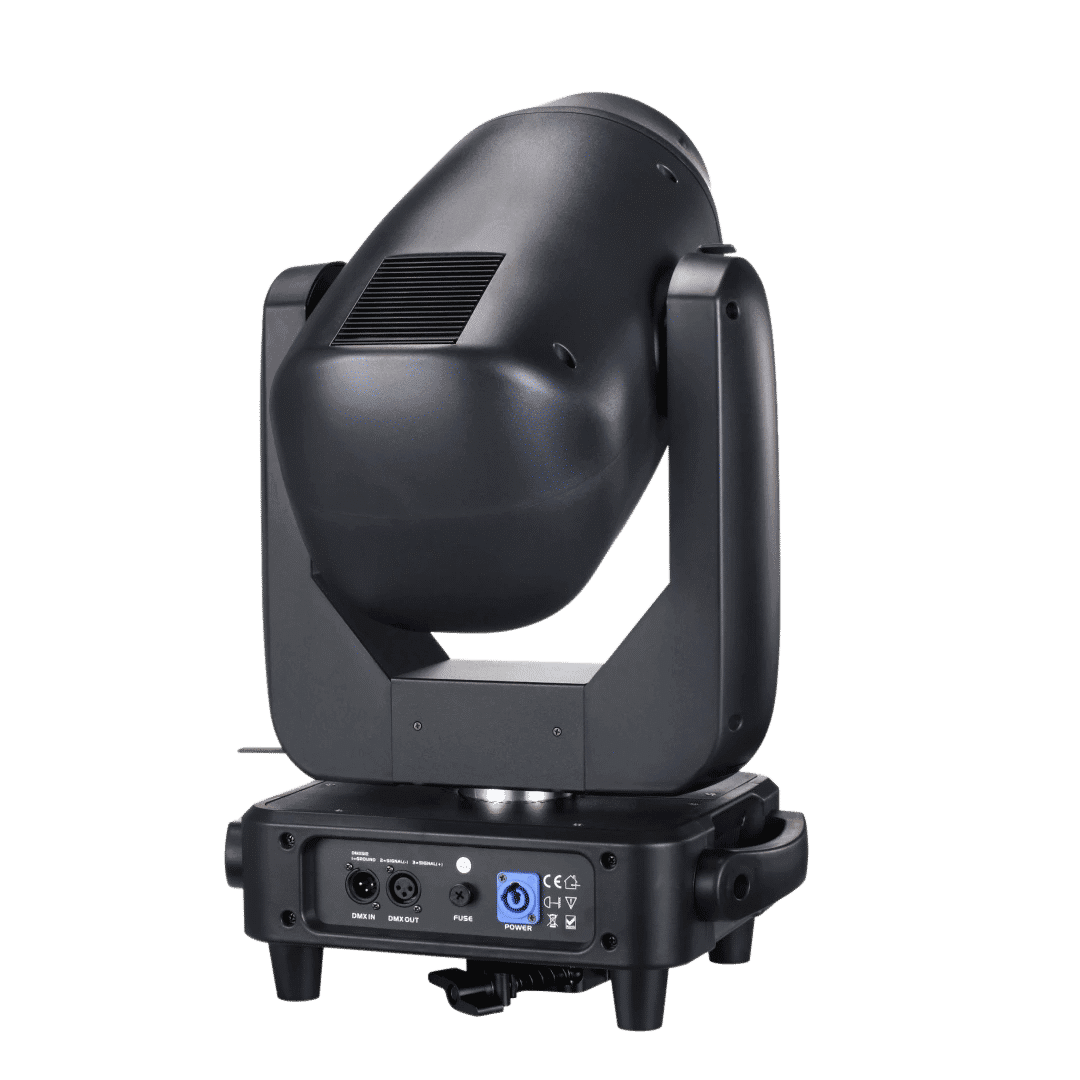

- Connectors: Powercon in/out, 3-pin DMX in/out
- IP Rating: IP20 (Indoor)
- Working Temp: -10°C to 45°C

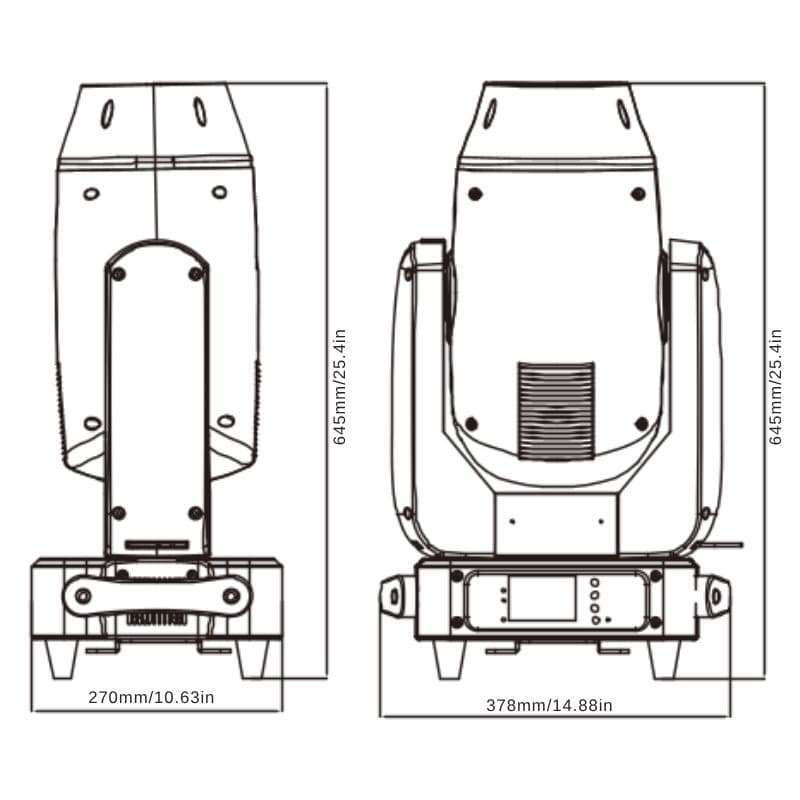

- Dimensions: 378 x 270 x 645 mm (14.88 x 10.63 x 25.4 in)
- Net Weight: 20.2 kg (44.5 lbs)
Engineering Details

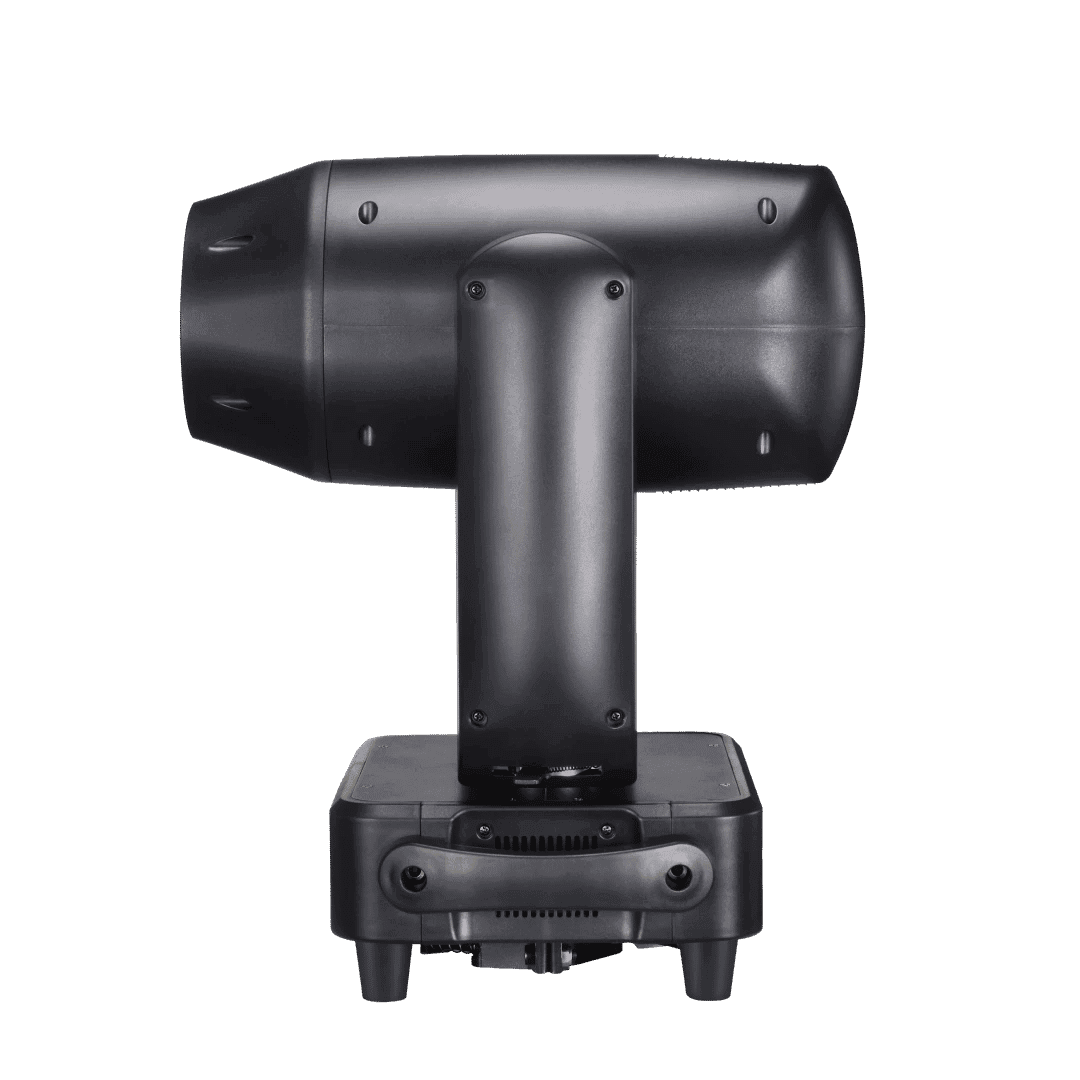

Product Gallery
