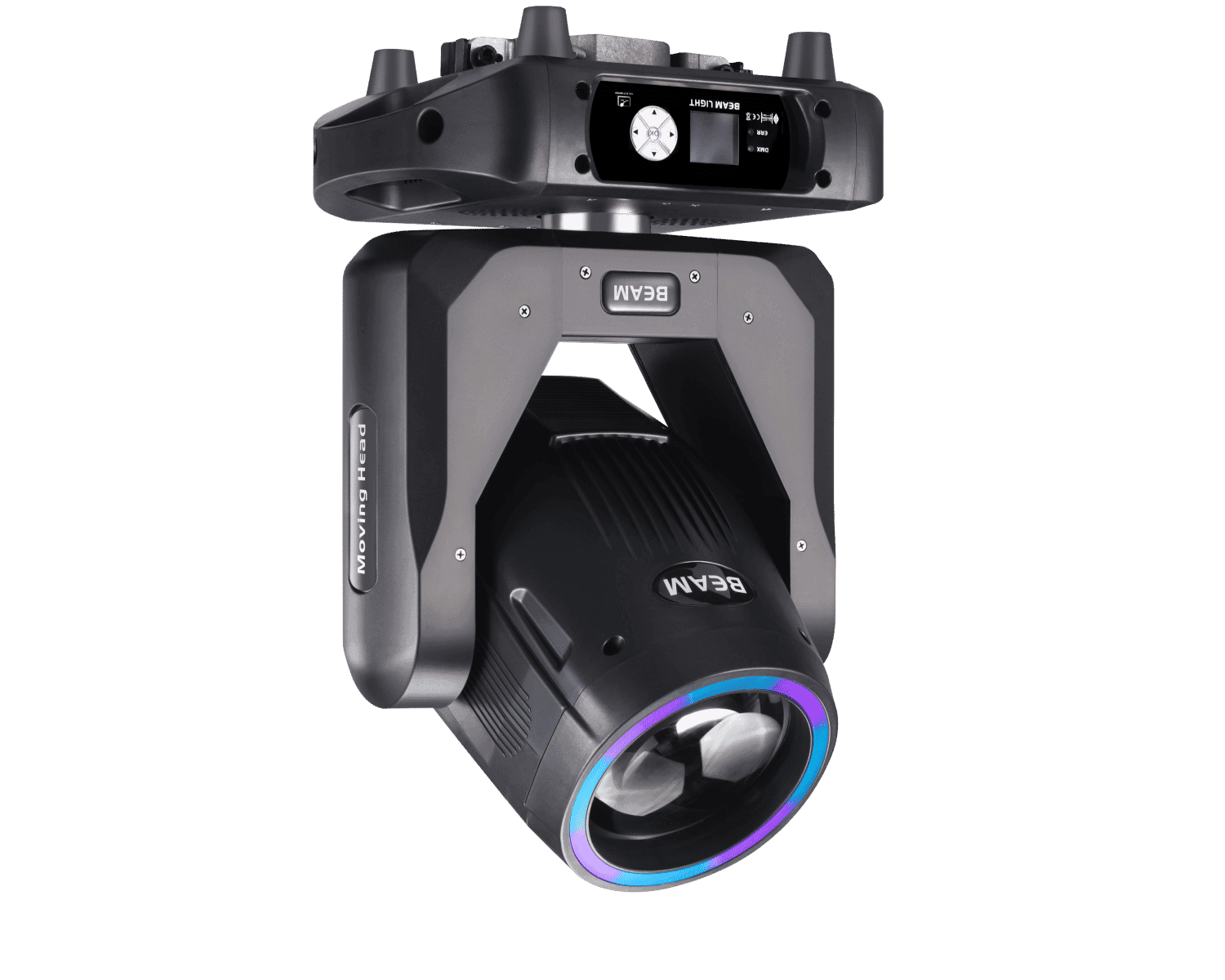

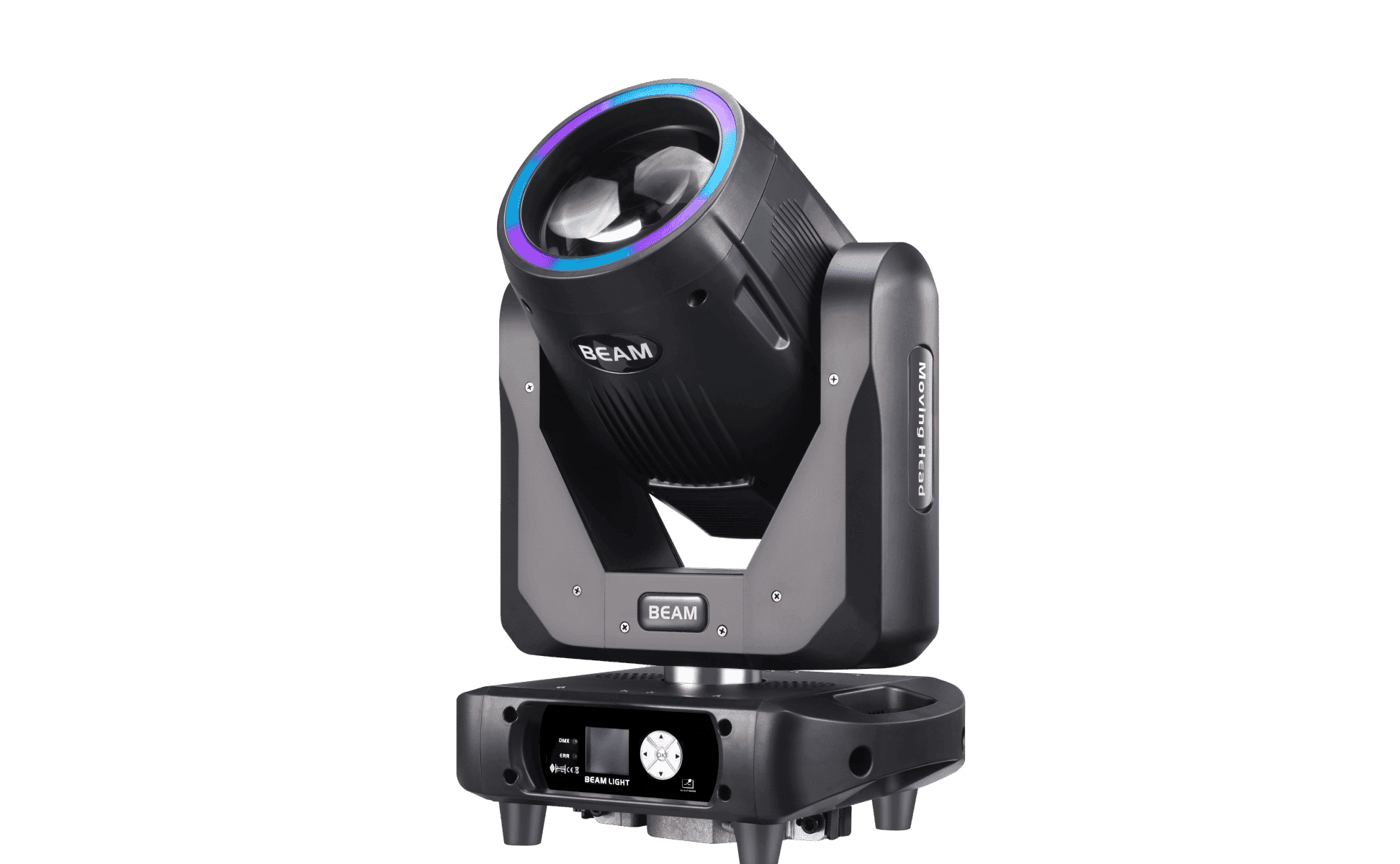

BEAM M251G
Dynamic Precision. Illuminated Core.
The SPARK M251G is a high-performance beam luminaire that fuses a powerful 250W main source with a striking auxiliary ring of 40x0.2W RGB 3-in-1 LEDs. Projecting a pure 8000K color temperature, this fixture utilizes a massive 145mm front lens to deliver a razor-sharp 2° beam. Engineered for indoor excellence with an IP20 rating, it produces an impressive 103,000 lux at 10 meters, featuring a wider and remarkably smooth 0-100% linear dimming range for unparalleled visual impact.
Unleash complex aerial textures with a versatile 14-slot color wheel and a hybrid gobo system featuring 9 static and 4 glass patterns. Visual depth is exponentially amplified by dual bi-directional rotatable prisms (16-facet and 8+16-facet), an independent frost filter, and a vibrant rainbow effect. Driven by 16-bit precision pan (540°) and tilt (270°) motors equipped with automatic out-of-step correction, the M251G guarantees flawless execution for theaters, television studios, and live stages.
Technical Parameters
Optics & Light Source
- Main Source: 250W Lamp, 8000K color temperature

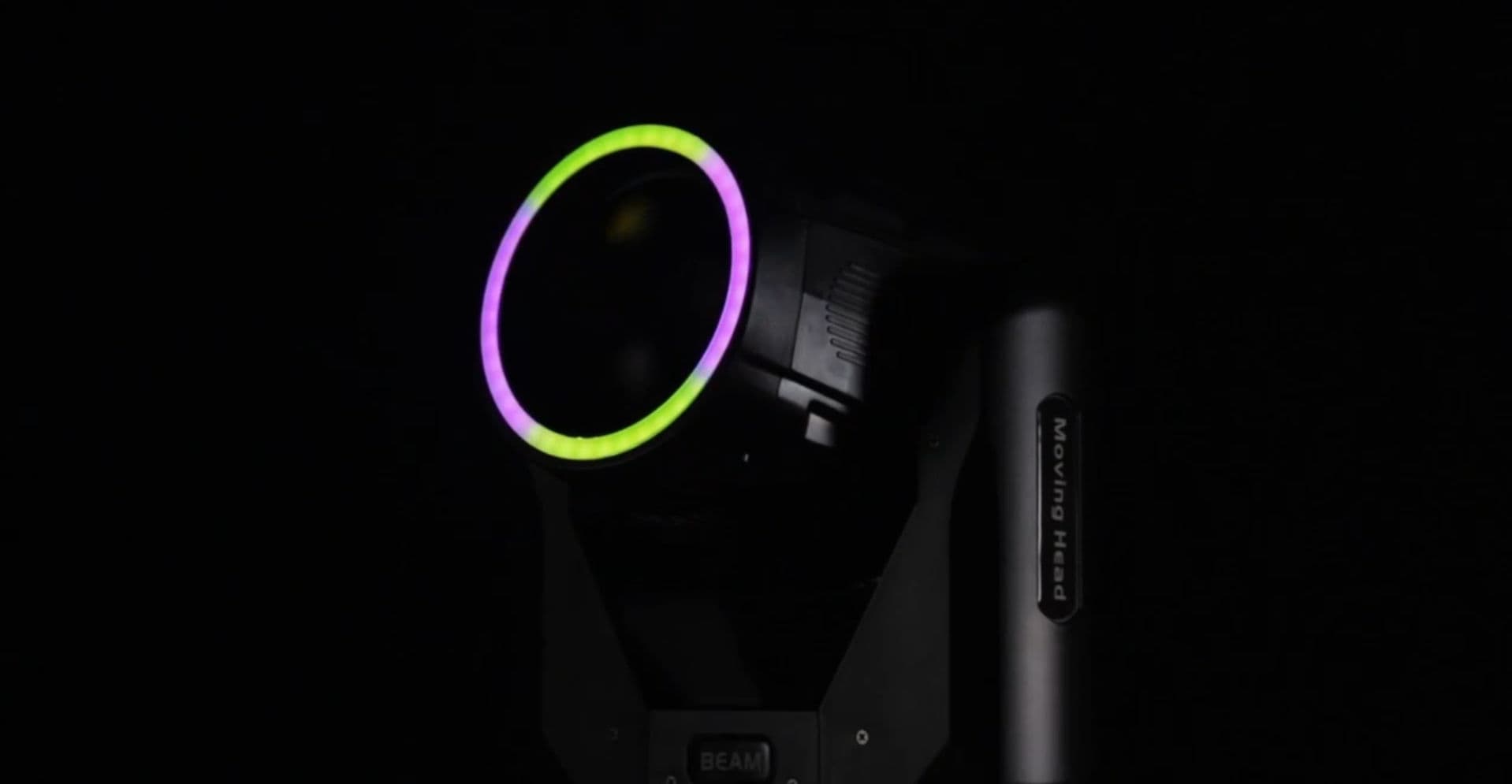

- Auxiliary Source: 40 x 0.2W RGB 3-in-1 LED
- Expected Lifespan: 2000 hours
- Beam Angle: 2° (145mm Front Lens)

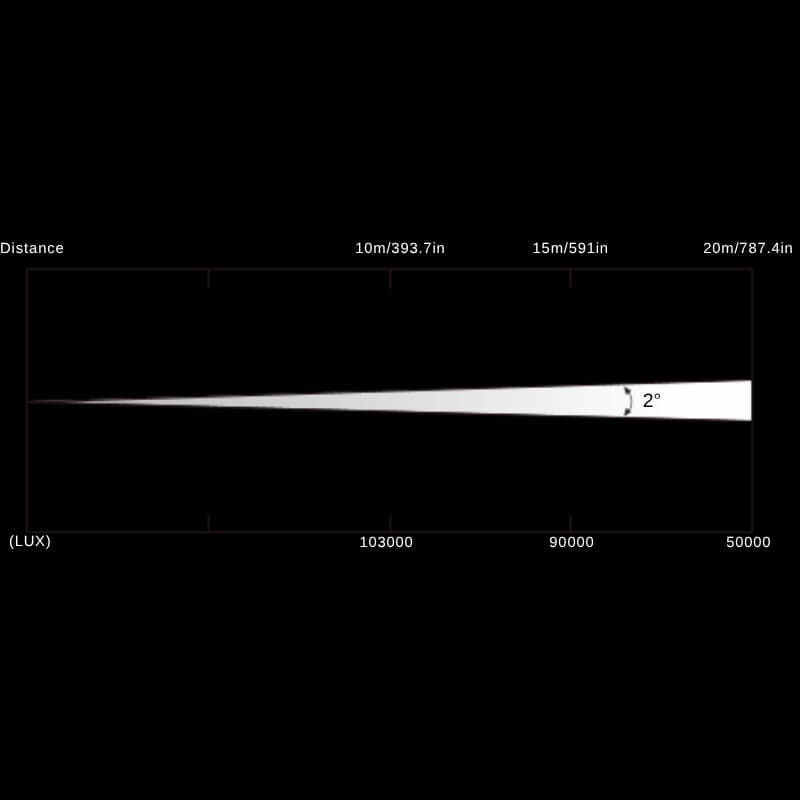

- Illuminance: 103,000 lux @ 10m / 90,000 lux @ 15m / 50,000 lux @ 20m
- Dimming: 0-100% smooth linear adjustment
Dynamic Effects

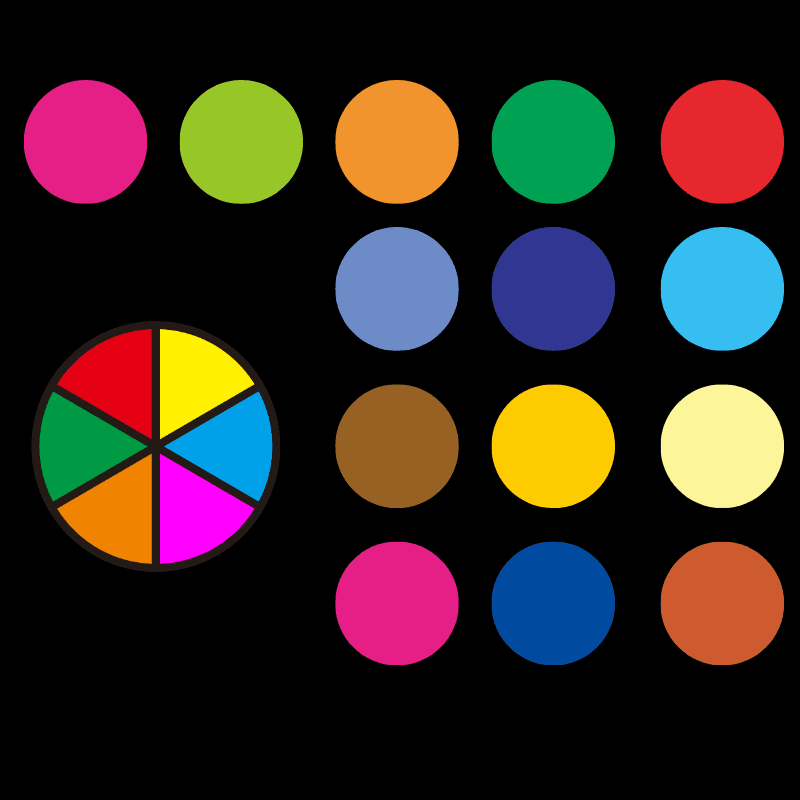

- Color Wheel: 14 colors + white

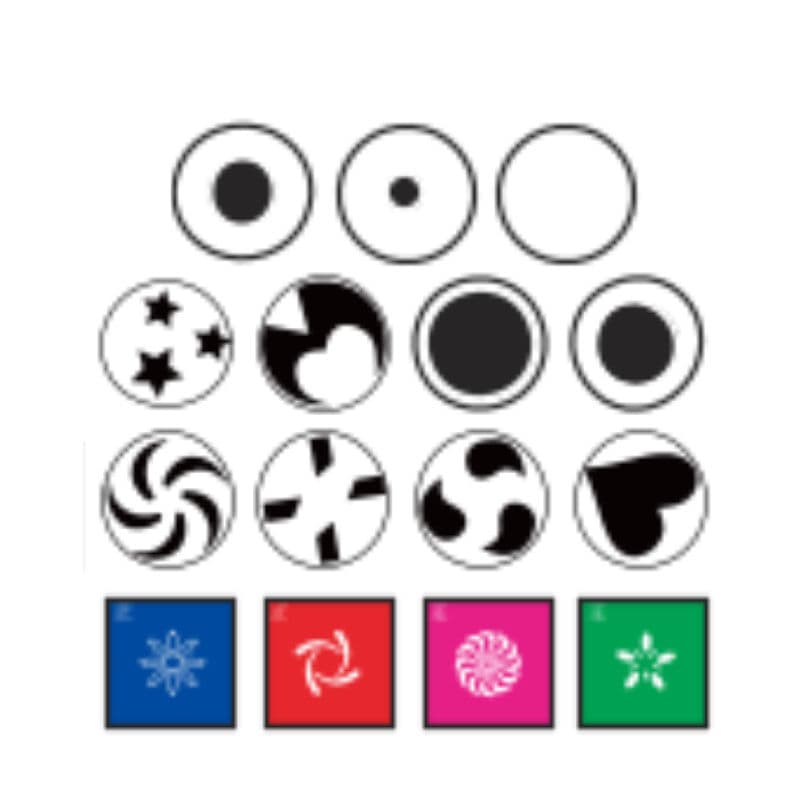

- Gobo Wheel: 9 static patterns + 4 glass patterns + white circle
- Prisms: 1x 16-facet, 1x 8+16-facet (bi-directional rotation)
- Optics: Electronic focus, Independent frost effect
- Color Effects: Vibrant rainbow effect
- Strobe: 1-25 times/sec with built-in effects
Control & Movement
- DMX Channels: 19CH
- Pan: 540° (16-bit precision, auto-correction)
- Tilt: 270° (16-bit precision, auto-correction)
- Control Protocols: DMX512 / Master-Slave
- Display: LCD screen with 5 tactile buttons
- Updates: Software upgrade via DMX connection
Electrical & Physical
- Input Power: AC100-240V, 50/60Hz
- Power Consumption: 380W

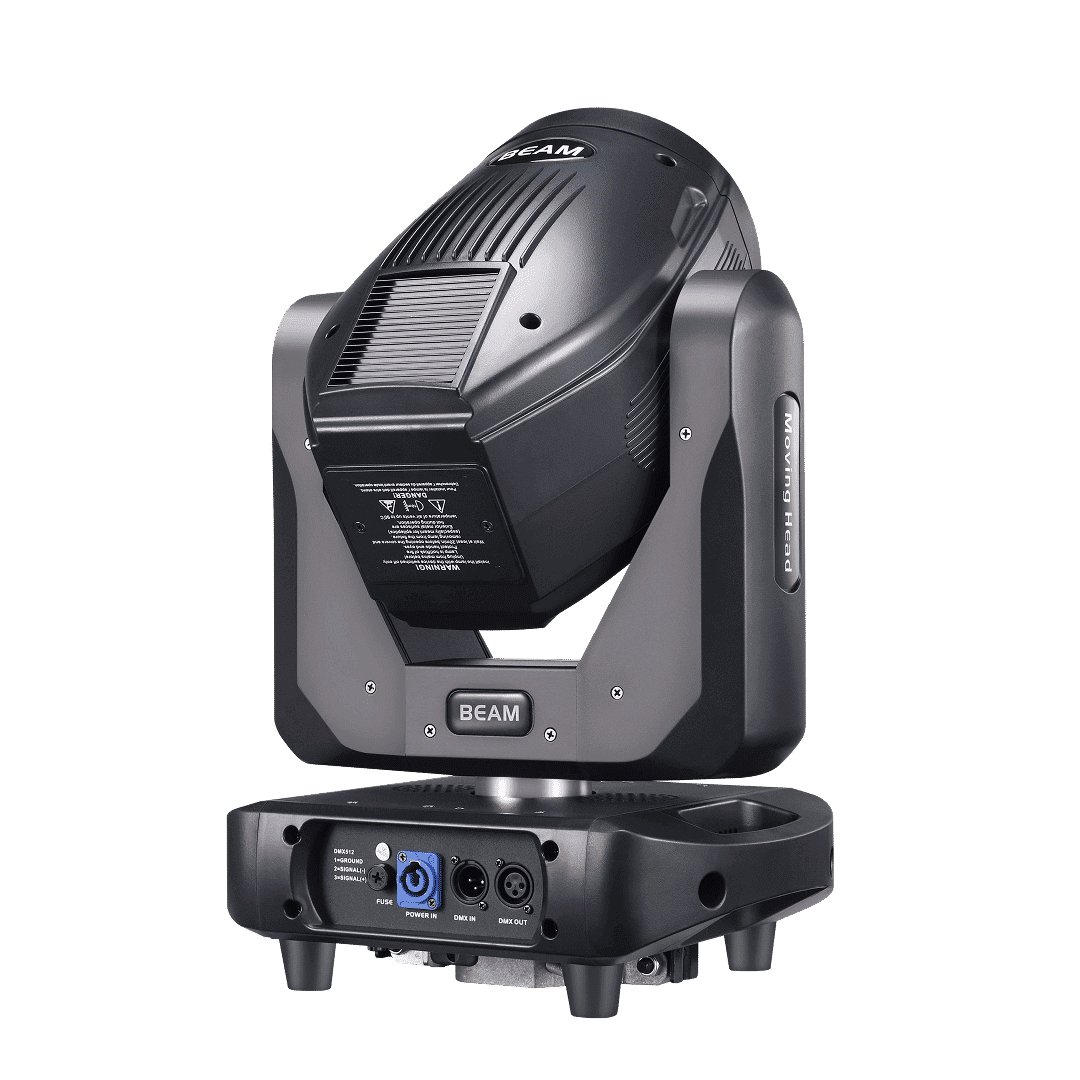

- Connectors: Powercon input, 3-pin DMX in/out
- IP Rating: IP20 (Indoor)
- Working Temp: -10°C to 45°C

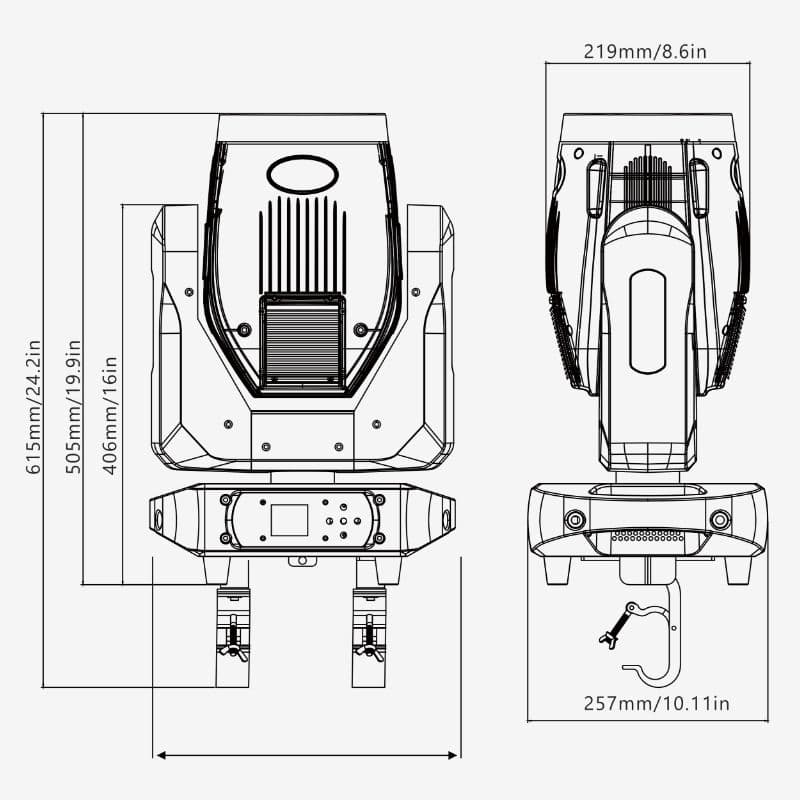

- Dimensions: 327 x 257 x 615 mm (12.9 x 10.11 x 24.2 in)
- Net Weight: 14.8 kg (32.63 lbs)
Engineering Details

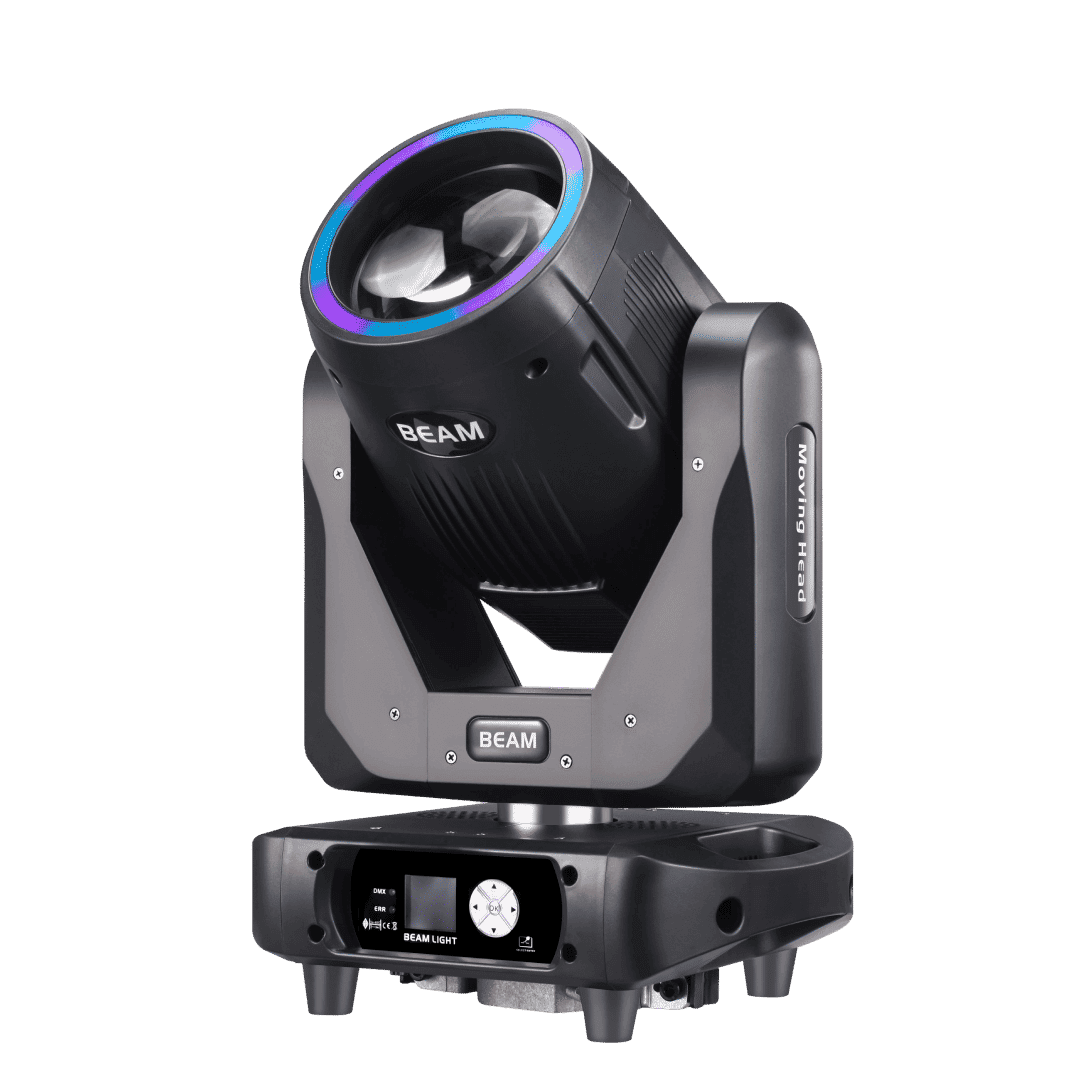

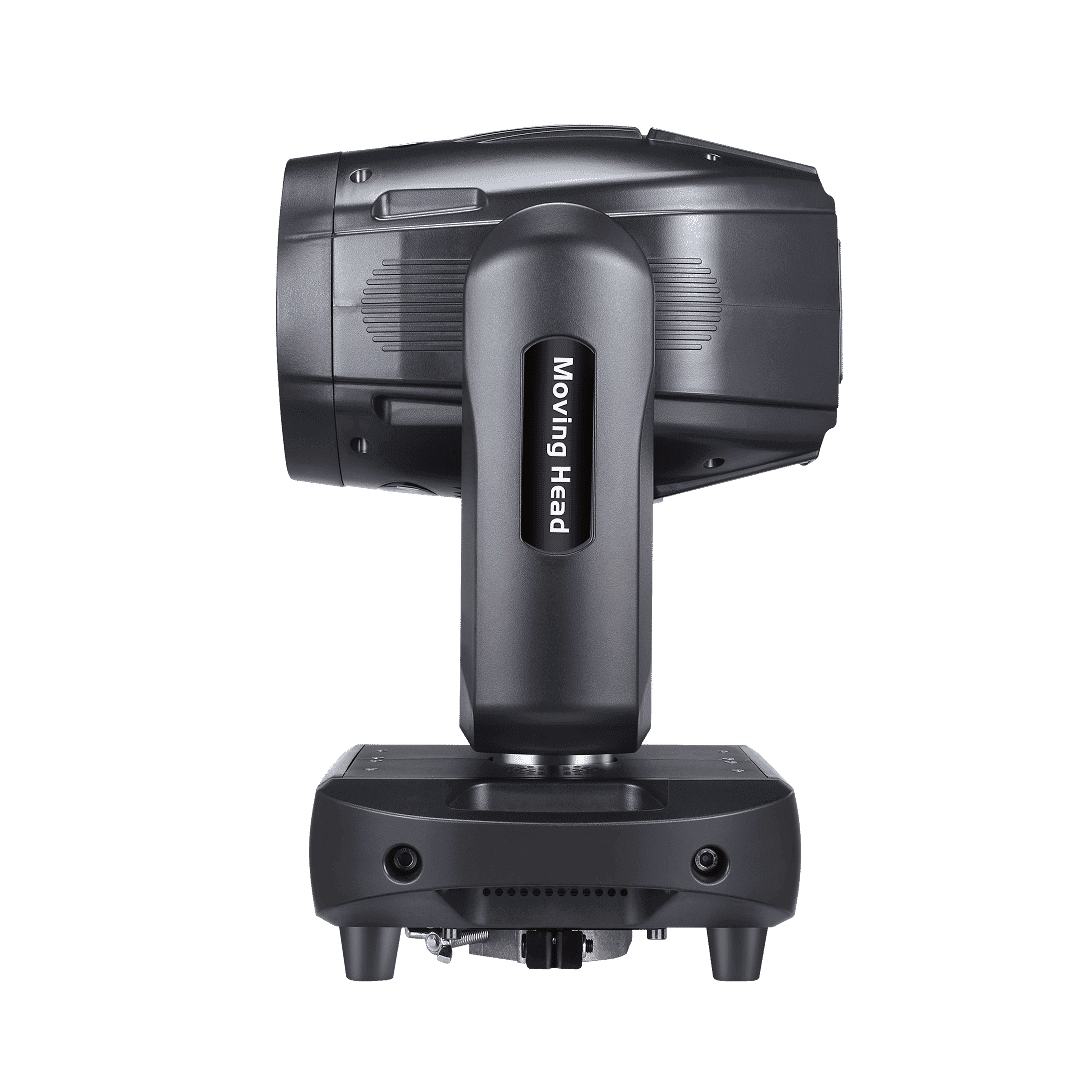

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
