MOVING BAR 560 DF
Dual-Sided Dynamic Movement. Ultimate Hybrid.

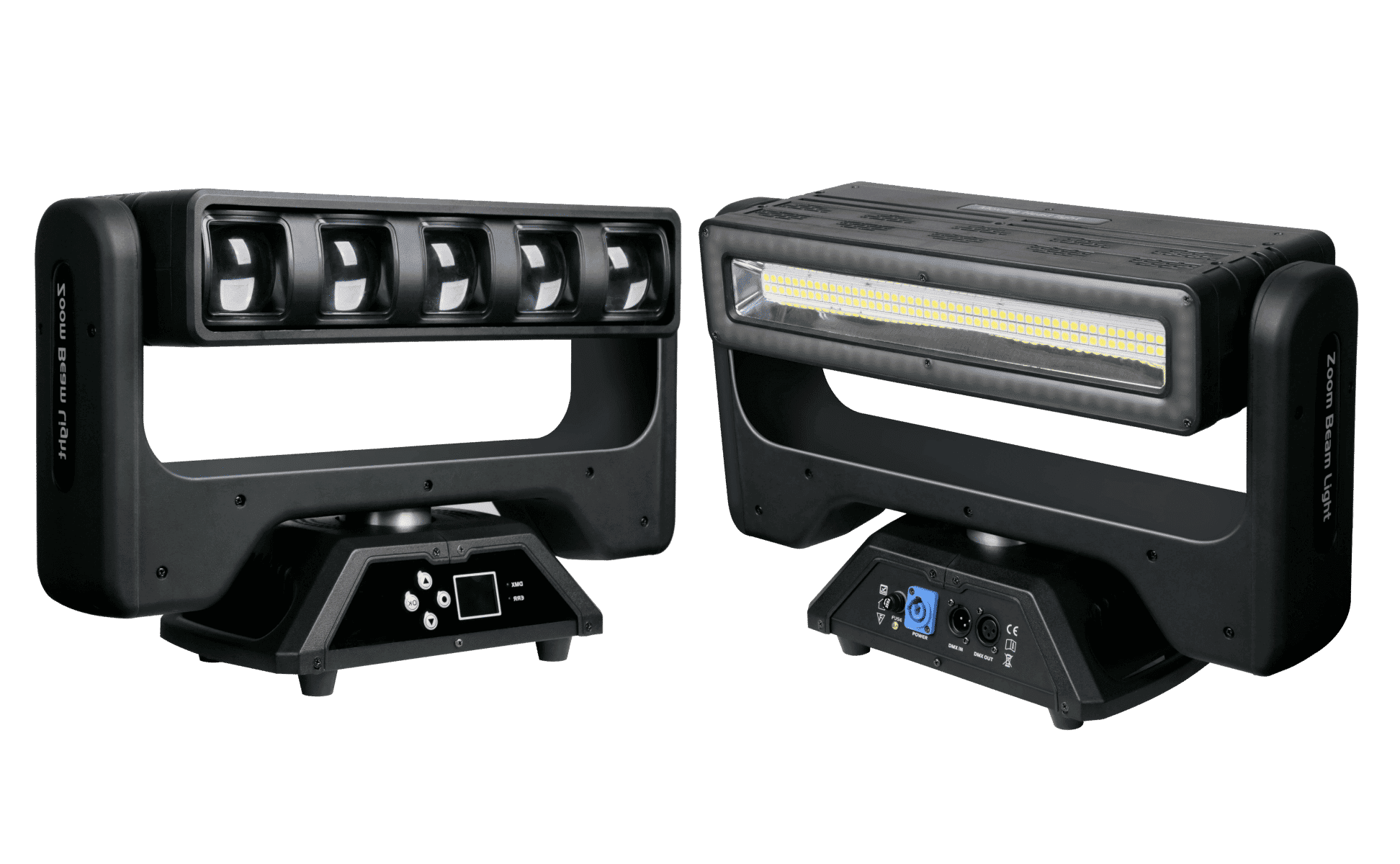

The Moving Bar 560 DF is a revolutionary dual-sided fixture combining beam, wash, and blinder capabilities. One side houses 5x 60W RGBW LEDs with a motorized 4-26° zoom, while the other features 96x 2W White LEDs and 72x 0.2W RGB LEDs for intense strobing.
Boasting endless pan and tilt rotation, this hybrid bar unleashes limitless aerial effects. It offers segmented control across both sides, flicker-free operation, and comprehensive DMX support up to 105 channels, making it a powerhouse for dynamic stage designs.
Technical Parameters
Optics & Light Source

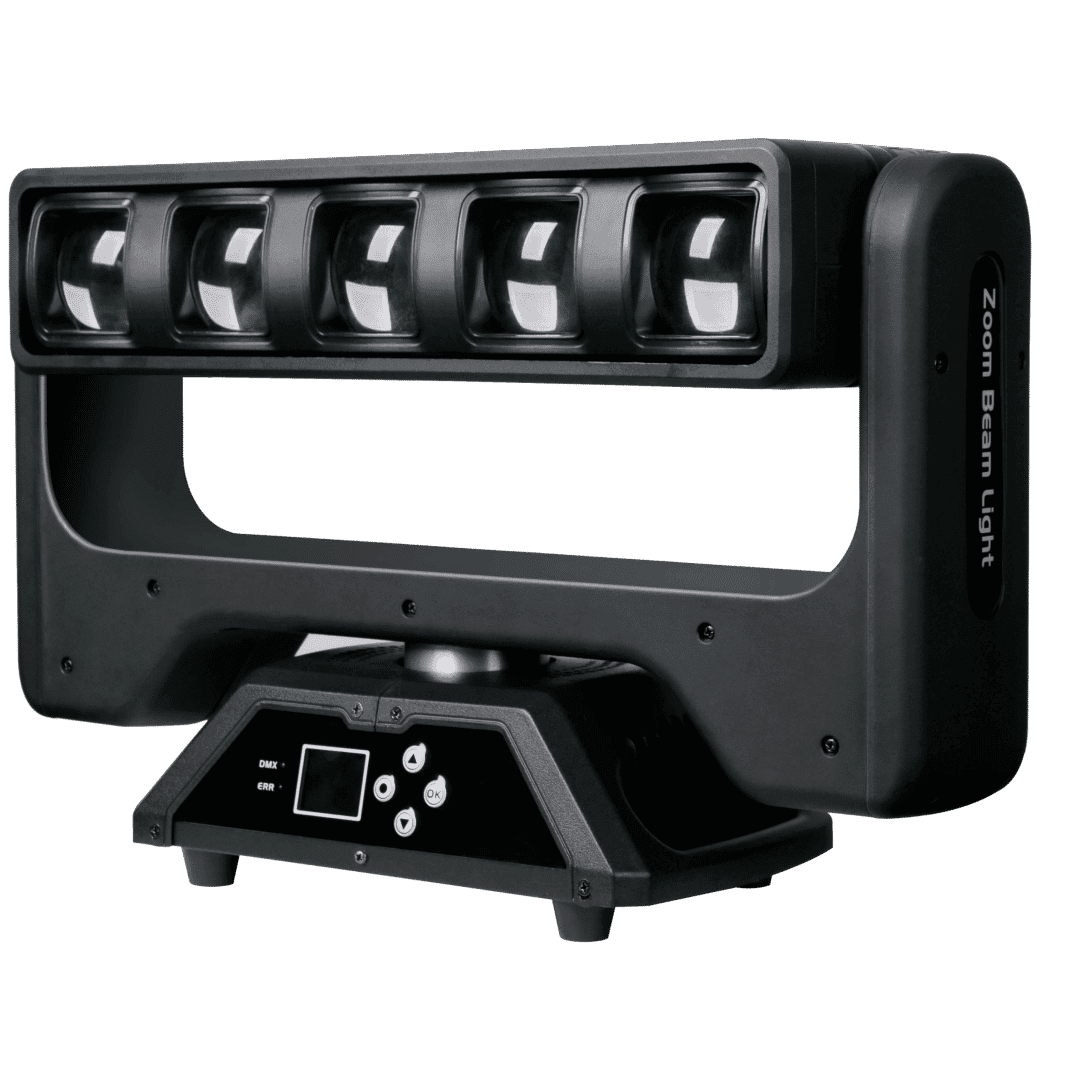

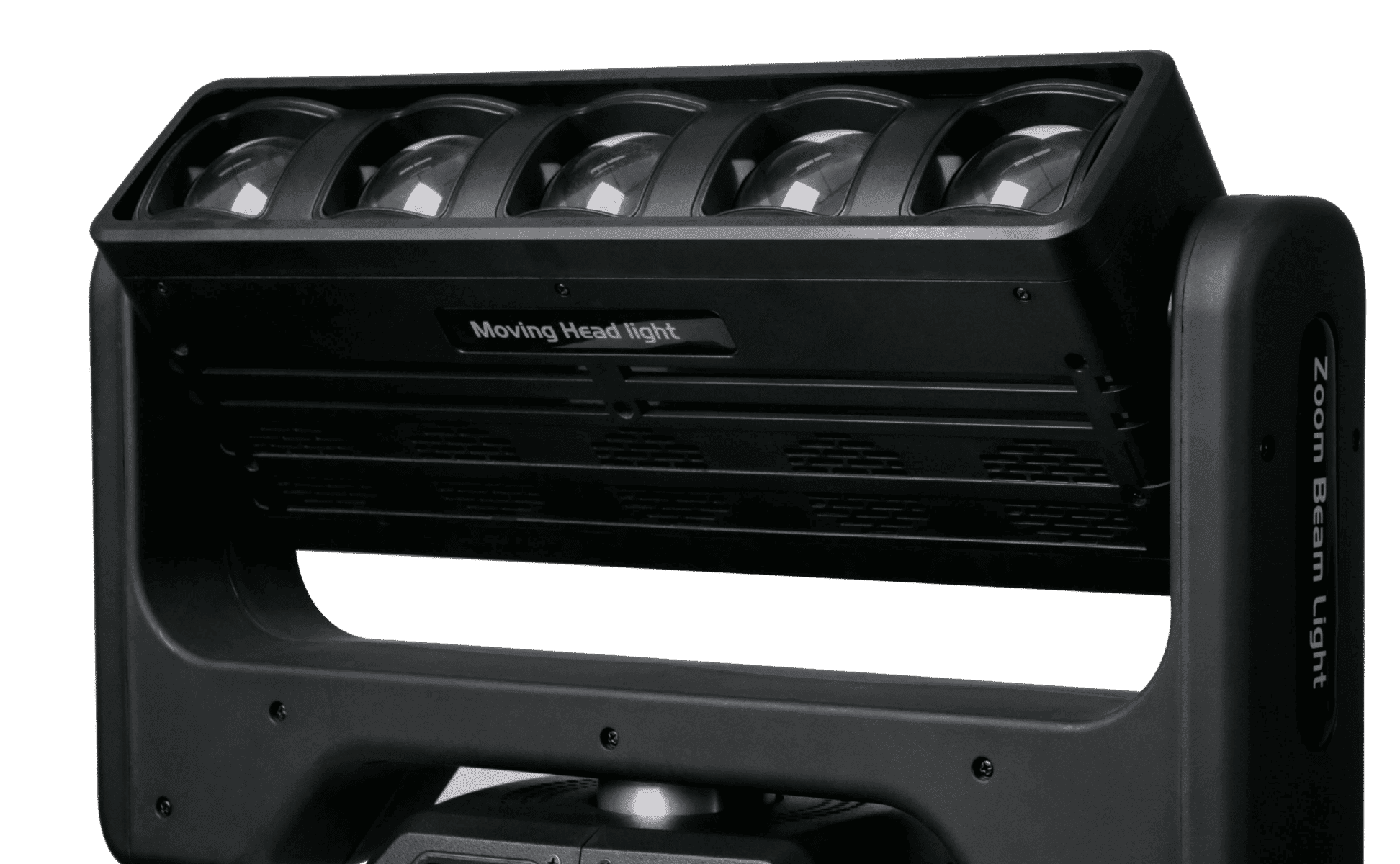

- Side 1 (Beam/Wash): 5x 60W RGBW 4-in-1 LEDs

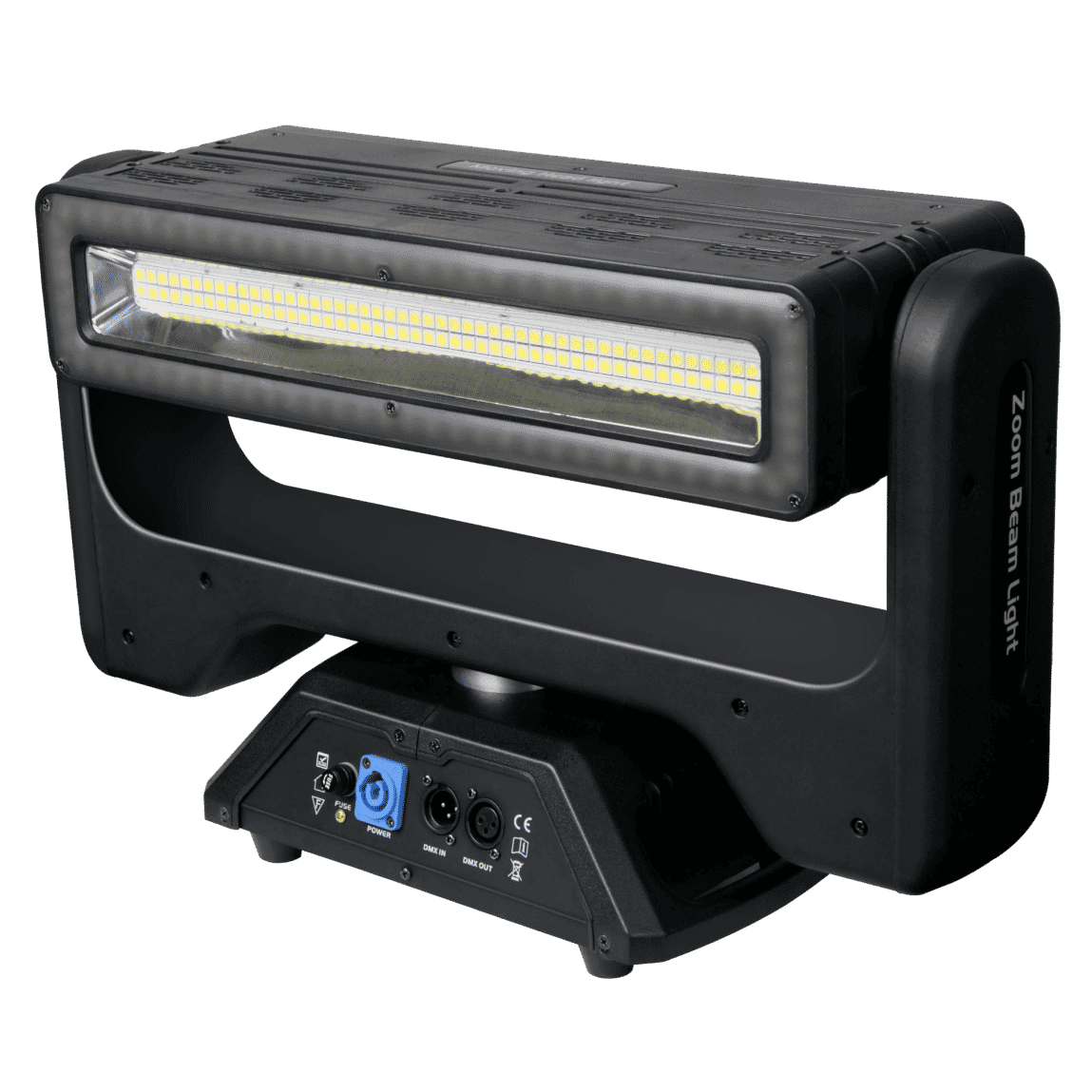

- Side 2 (Strobe): 96x 2W White LEDs (12 segments) + 72x 0.2W RGB LEDs (36 segments)
- Zoom Range: Motorized zoom from 4° to 26°
- Lux at 5m: 3460 (full on at 3°)
Dynamic Effects
- Dimming: 0-100% electronic dimming with flicker-free operation
- Strobe: 1-25Hz high-speed strobe
- Pixel Control: Single control to 60W LED, 12 segments for white, 36 for RGB
Control & Movement
- Pan/Tilt: 540° Pan + endless rotation, 270° Tilt + endless rotation (8/16 bit)
- Control Modes: DMX / Master-Slave / Sound / Auto / RDM
- DMX Channels: 33 / 53 / 69 / 105 CH modes

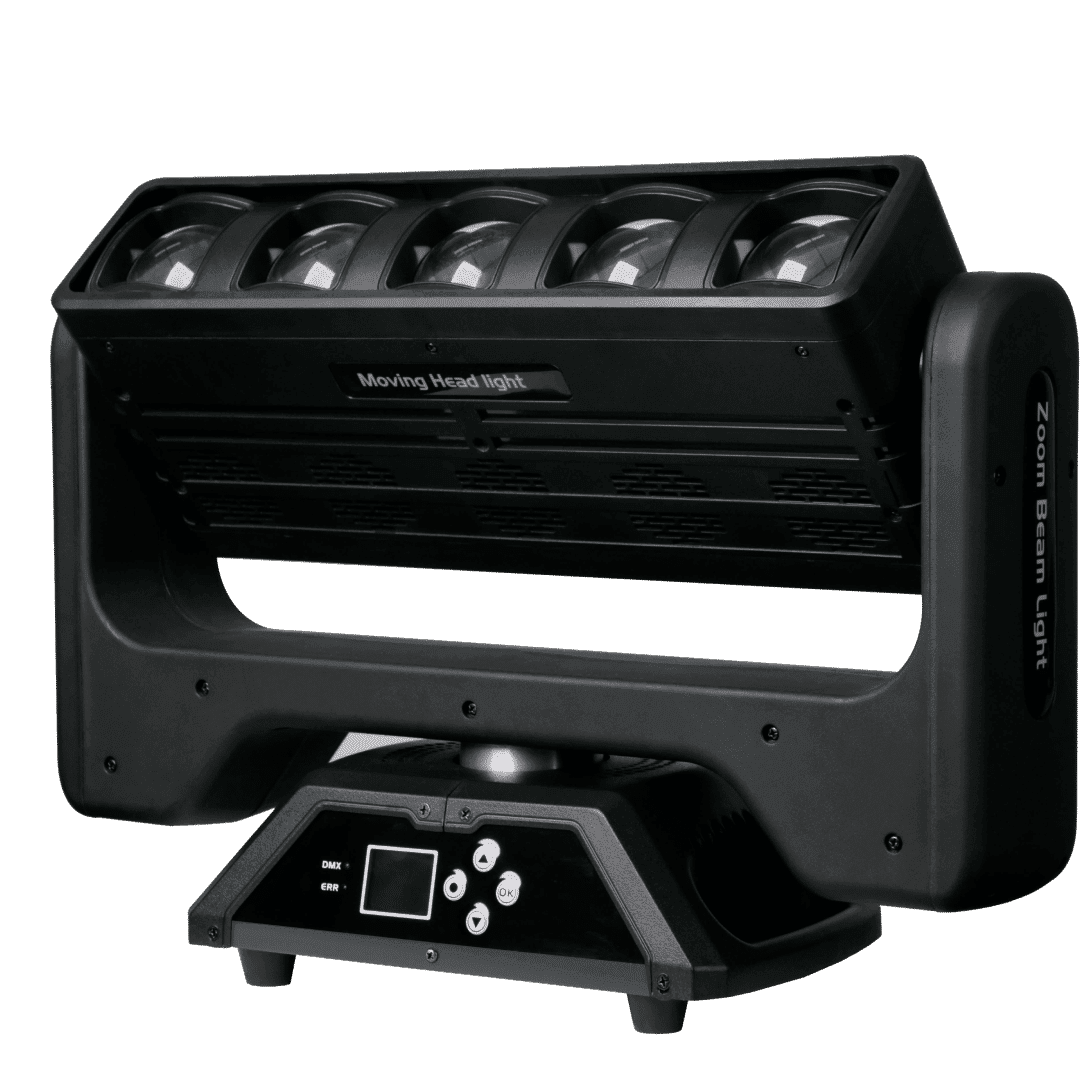

- Display: Reversible LCD display with 4 push buttons
Electrical & Physical
- Power Consumption: 480W (AC100-240V, 50/60Hz)
- Environment: IP20 rated for indoor use
- Cooling: Fan speed auto adjustment with head temperature protection
- Dimensions: 525 x 180 x 365 mm | Weight: 12 kg
Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
