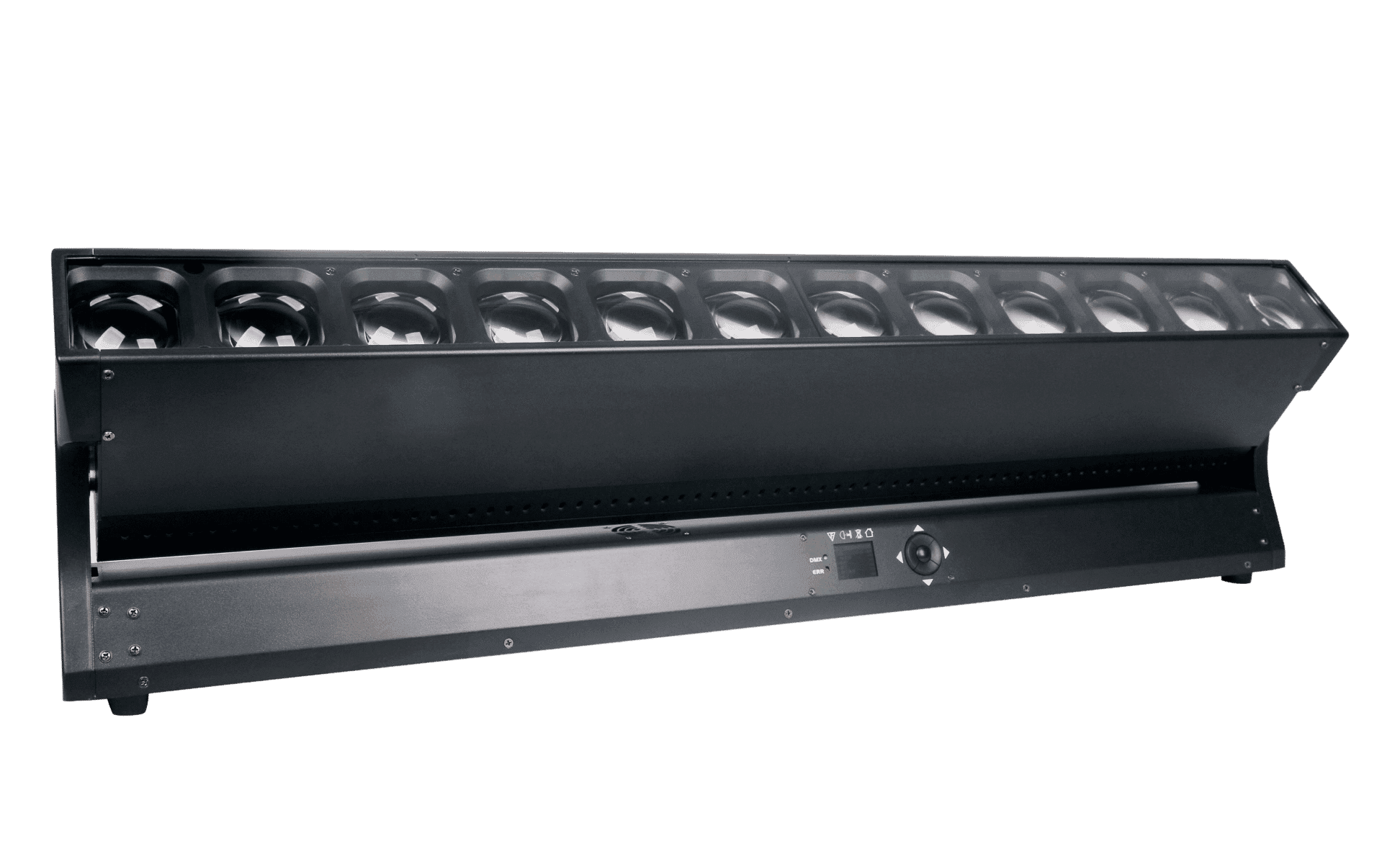

LED MAGIC 1260 YZ
Dynamic Wash. Moving Brilliance.
The Bar Light 1260 YZ is a high-performance motorized tilt bar featuring 12x 60W RGBW 4-in-1 LEDs. Designed to create sweeping curtains of light, it delivers incredibly bright and saturated colors suitable for stages, studios, and entertainment venues.
With a motorized Y-axis tilt of 270° and a versatile zoom range of 3° to 23°, this fixture allows for precise beam control from narrow shafts to wide washes. Individual pixel control enables endless creative chasing and matrix effects, all managed smoothly via 18 or 56 DMX channels.
Technical Parameters
Optics & Light Source
- Source: 12x 60W RGBW 4-in-1 LEDs
- Color Temp: Adjustable from 2800K to 8500K (CRI ≥ 70)
- Zoom Range: Motorized 3° - 23°
- Lifespan: 20,000 hours
Dynamic Effects
- Pixel Mapping: Single pixel control for complex animations
- Dimming: 0-100% linear dimming
- Strobe: 1-25Hz high-speed effects
Control & Movement
- Y-Axis Tilt: 270° with 16-bit precision and auto-correction
- Control Modes: DMX512 / Auto / Sound / Master-Slave
- DMX Channels: 18 / 56 CH modes
- Display: LCD screen
Electrical & Physical
- Power Consumption: 680W (AC100-240V, 50/60Hz)
- Environment: IP20 rated for indoor use
- Dimensions: 1080 x 120 x 315.5 mm
- Weight: 22 kg

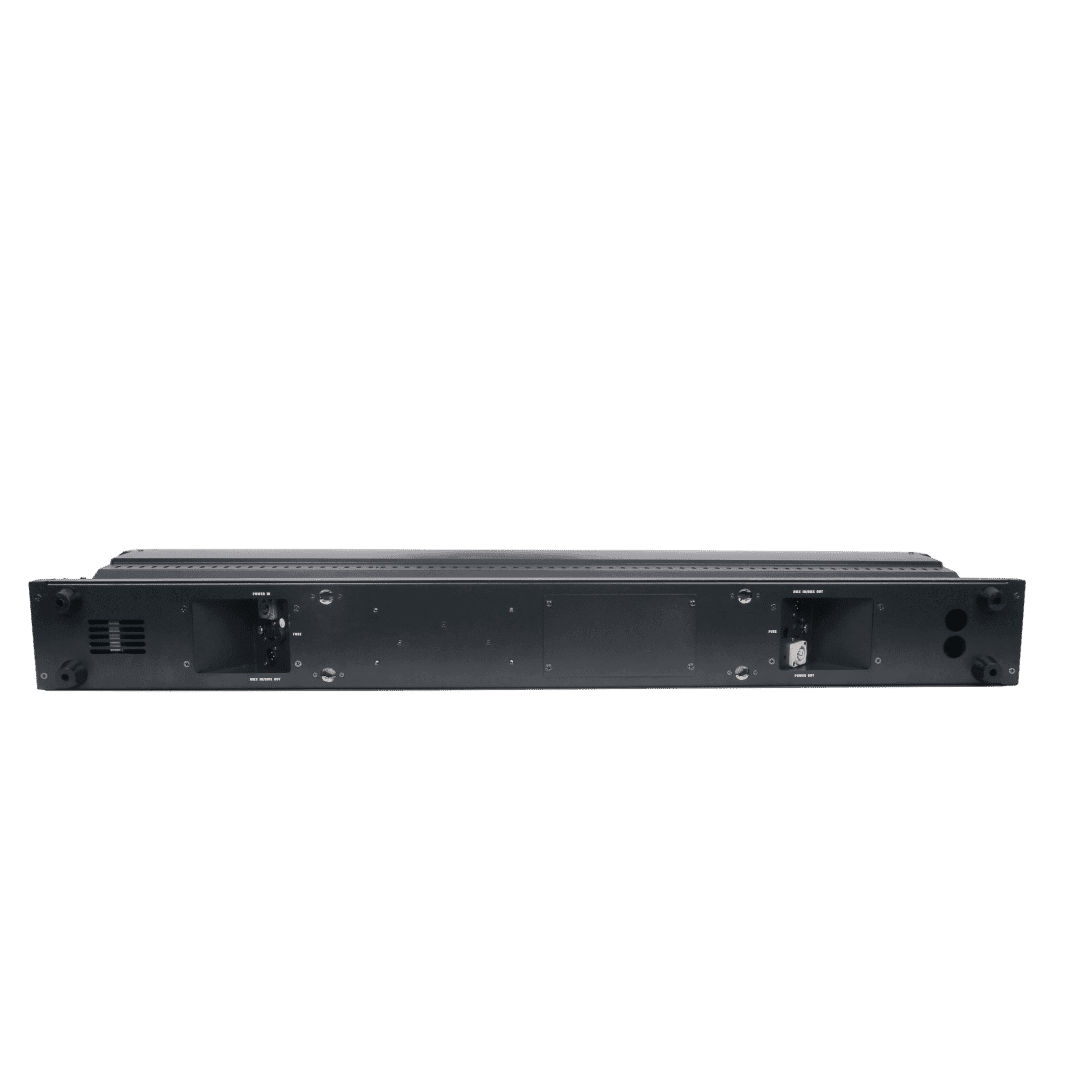

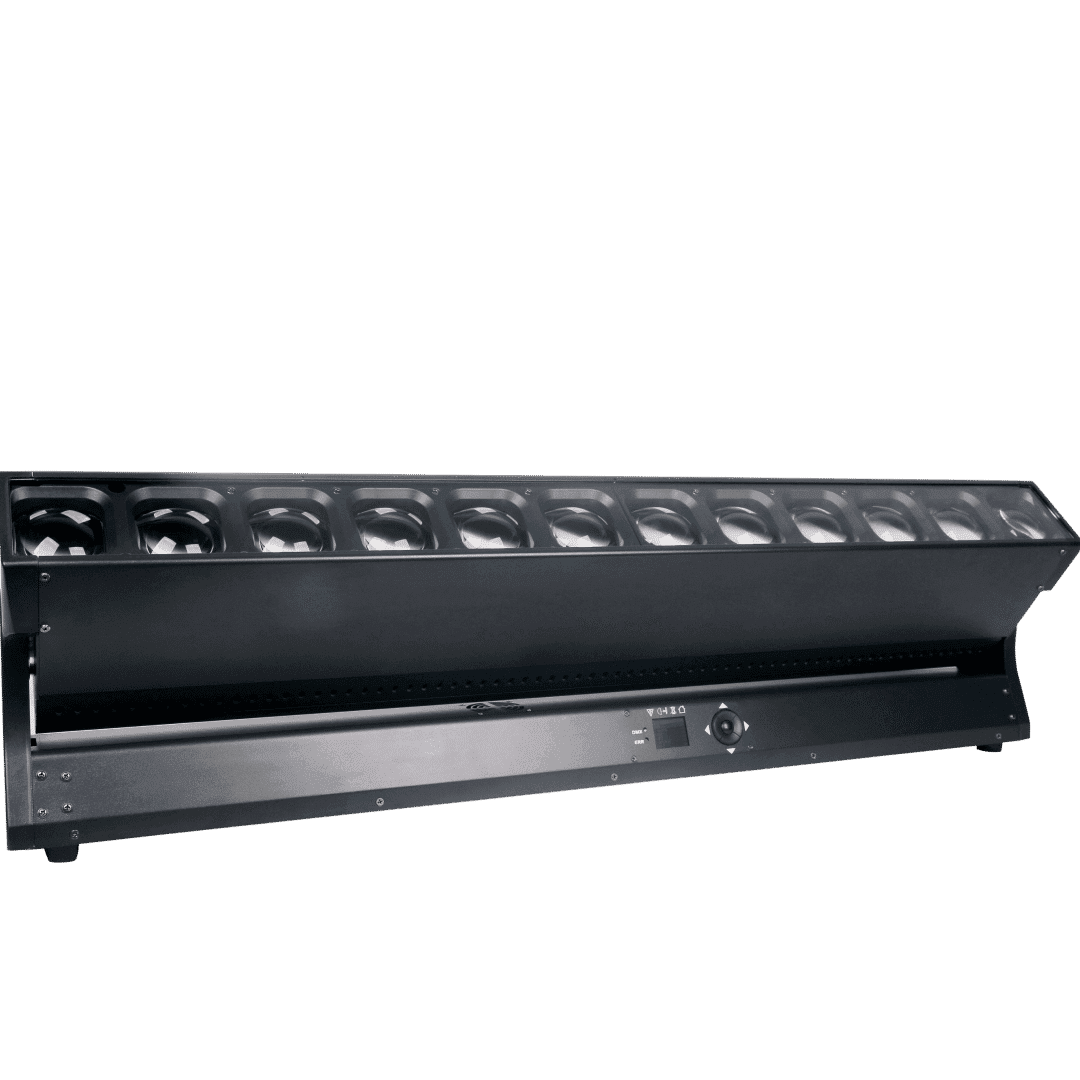

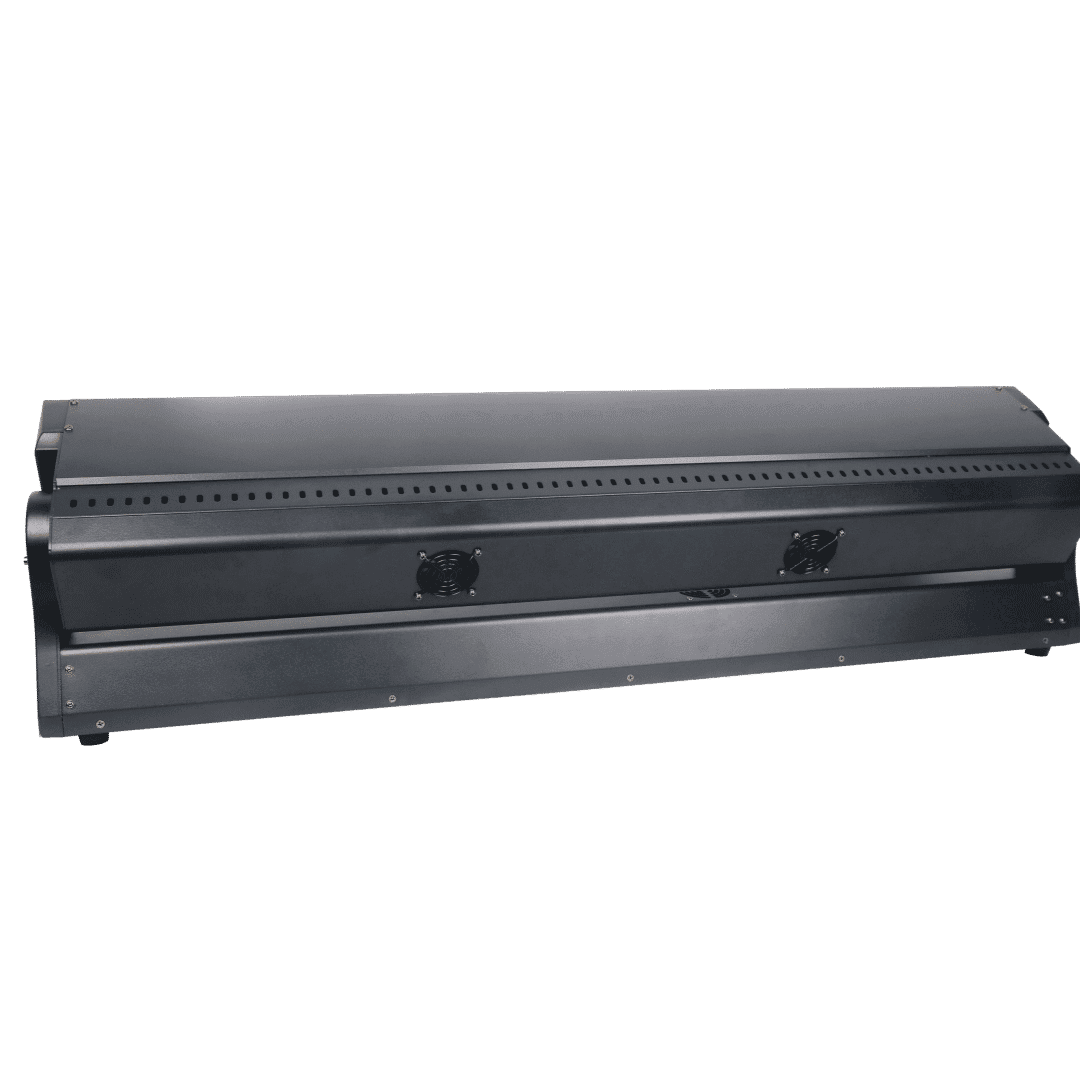

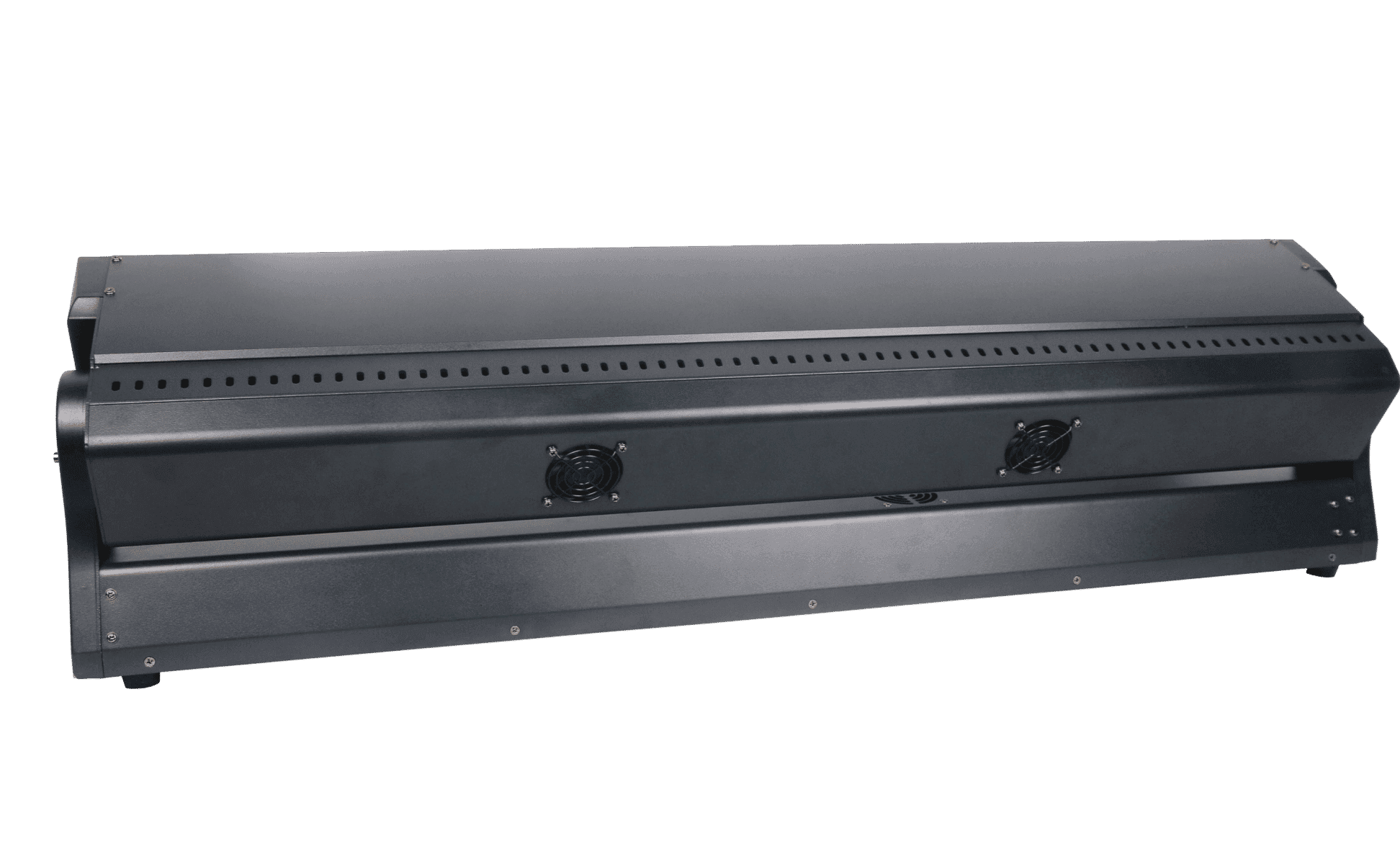

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
Download All (ZIP)
