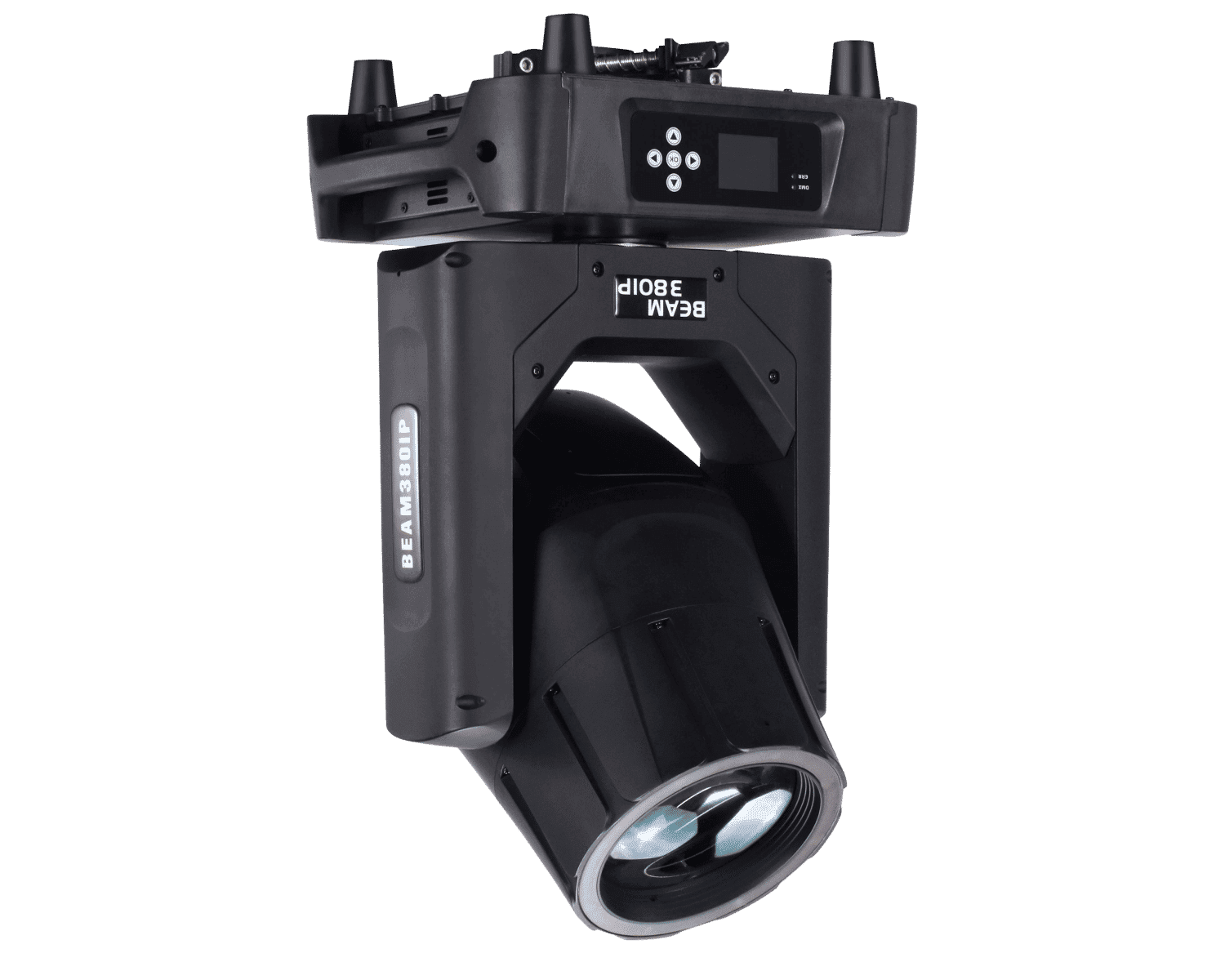

JUBARIS BEAM 380IP
Defy the Elements. Dominate the Stage.
Engineered for the most demanding outdoor events, the JUBARIS BEAM 380IP combines raw power with absolute resilience. Driven by a high-output 380W lamp, it pierces the atmosphere with an ultra-tight 2° beam angle, delivering an astonishing 216,000 lux at 15 meters. Rated IP65, this all-weather powerhouse shrugs off rain, dust, and extreme conditions (-10°C to 40°C), ensuring your light show never compromises, regardless of the environment.
Precision meets creativity. The JUBARIS BEAM 380IP is equipped with a versatile optical system featuring a 14-slot color wheel plus a dynamic rainbow effect. Visual textures are mastered through 12 static gobos and 5 glass gobos, while dual rotatable prisms (12-facet and 8+16-facet) multiply your aerial effects into complex, immersive volumetric patterns. With motorized focus, high-speed strobing (1-25Hz), and automatic high-temperature protection, this fixture is designed for relentless, peak performance.
Technical Parameters
Optics & Source
- Source: 380W Lamp
- Average lifespan: 1200 hours
- Beam Angle: 2°

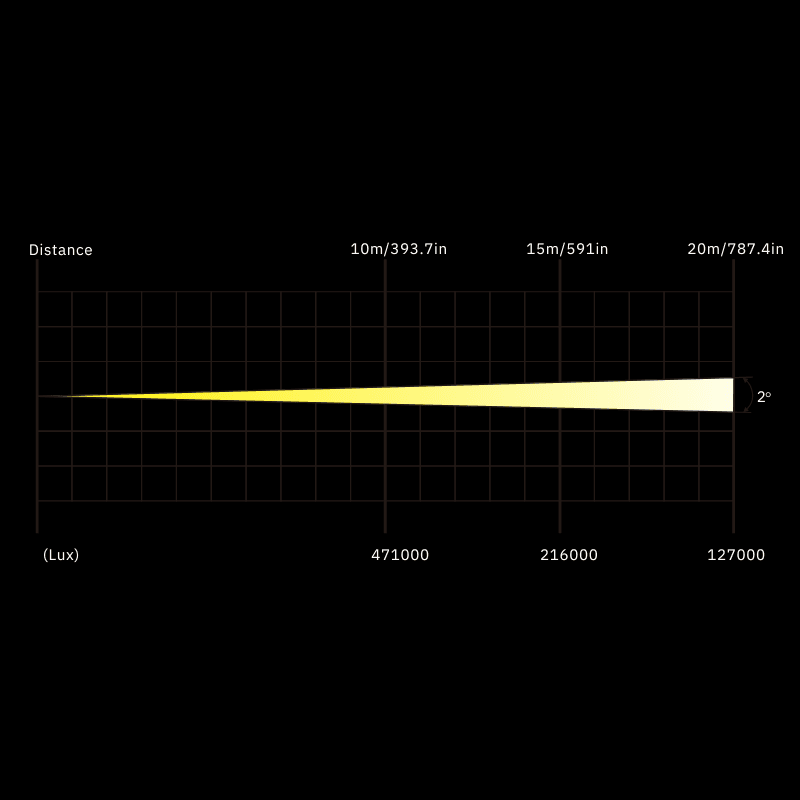

- Illuminance: 216,000 lux @ 15m / 471,000 lux @ 10m
Dynamic Effects

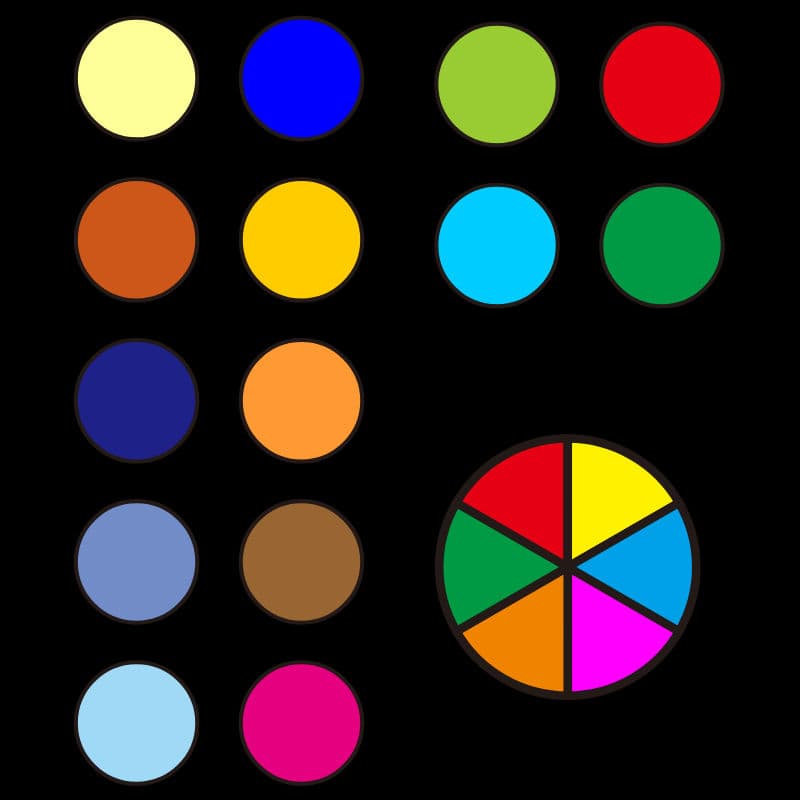

- Color Wheel: 14 static colors + open (Split color & Rainbow effect)

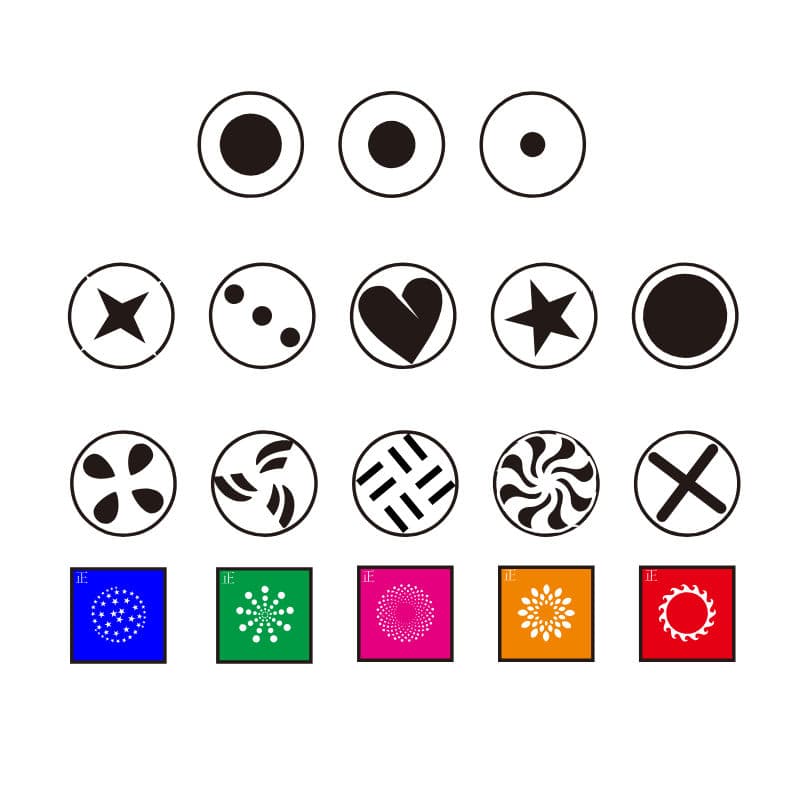

- Gobo Wheel: 12 static gobos + open + 5 glass gobos
- Prism 1: 12-facet rotatable prism
- Prism 2: 8+16 facet rotatable prism
- Motorized focus and frost filter
Control & Movement
- DMX Channels: 19CH
- Pan: 540° (16-bit scanning)
- Tilt: 270° (16-bit scanning)
- Control Modes: DMX / Master-Slave / Auto / Sound
- Display: LCD color display with 5 buttons
Electrical & Physical
- Input Power: AC100-240V, 50/60Hz (450W)
- IP Rating: IP65 Waterproof
- Working Ambient Temp: -10°C to 40°C

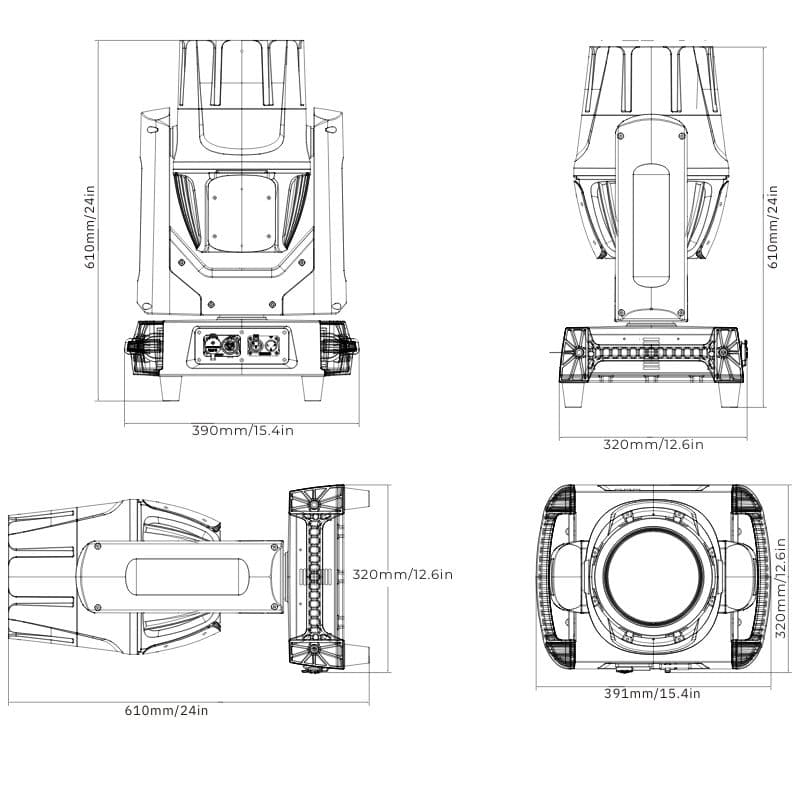

- Dimensions: 390 x 320 x 610 mm
- Weight: 22 kg / 48.5 lb

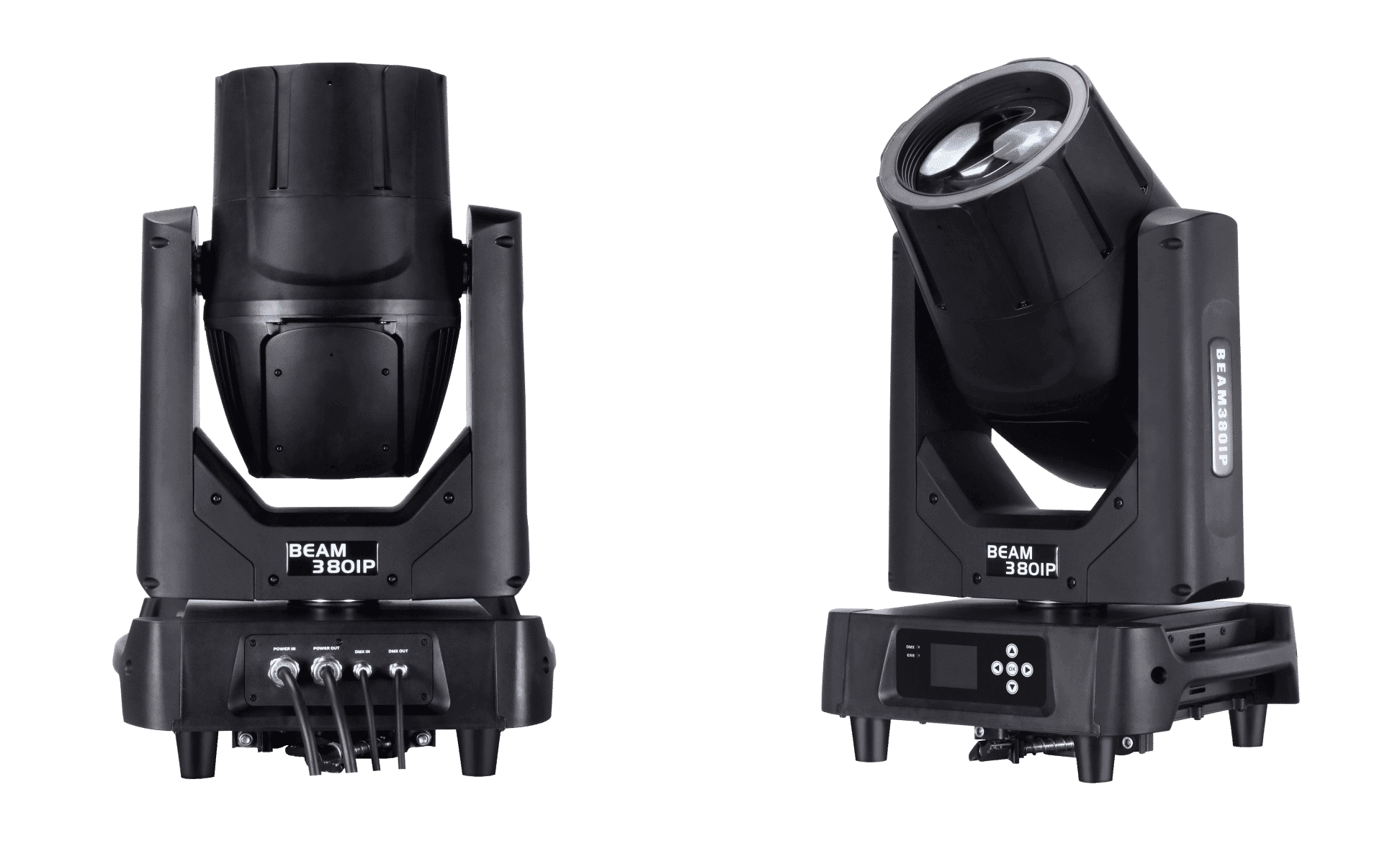

Engineering Details

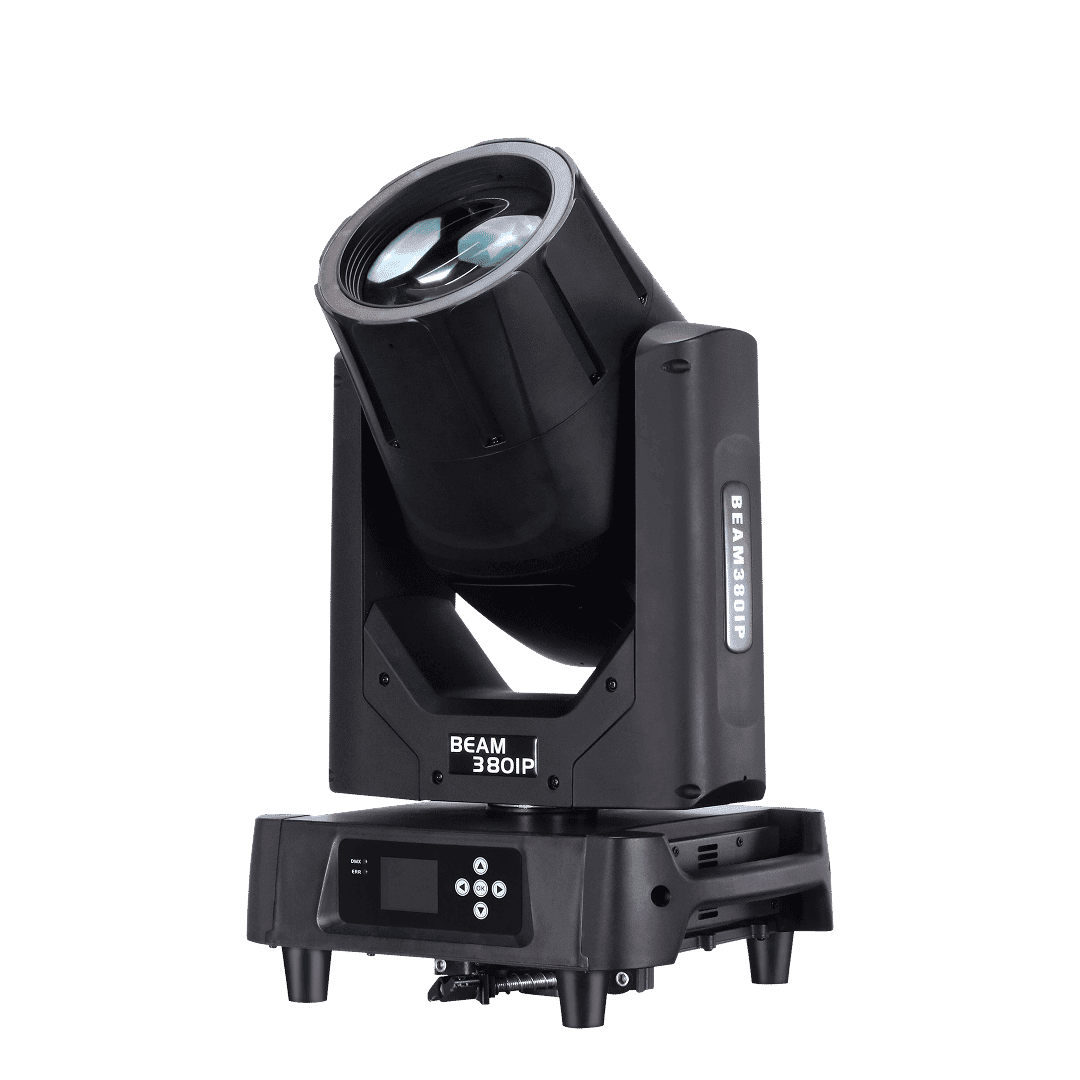

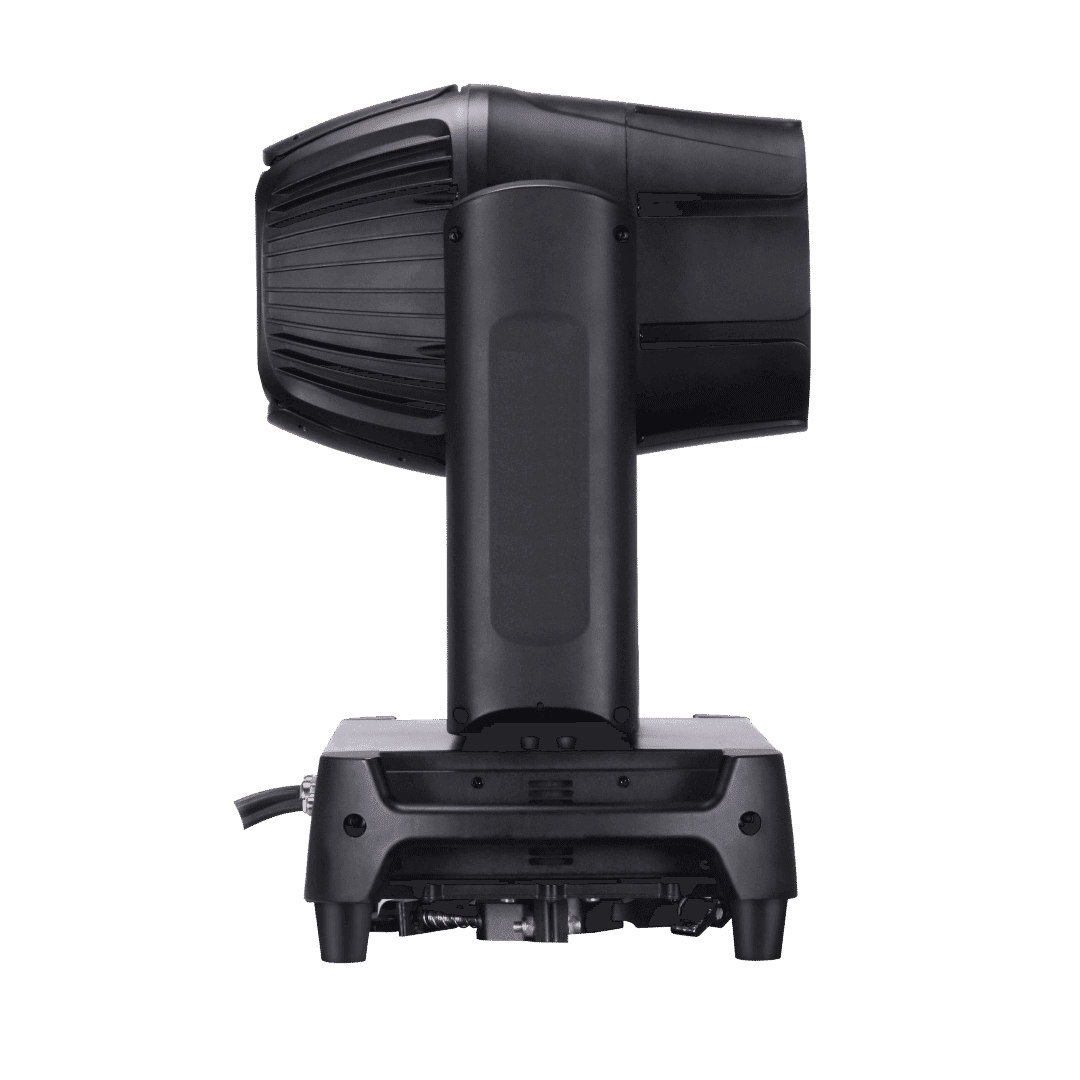

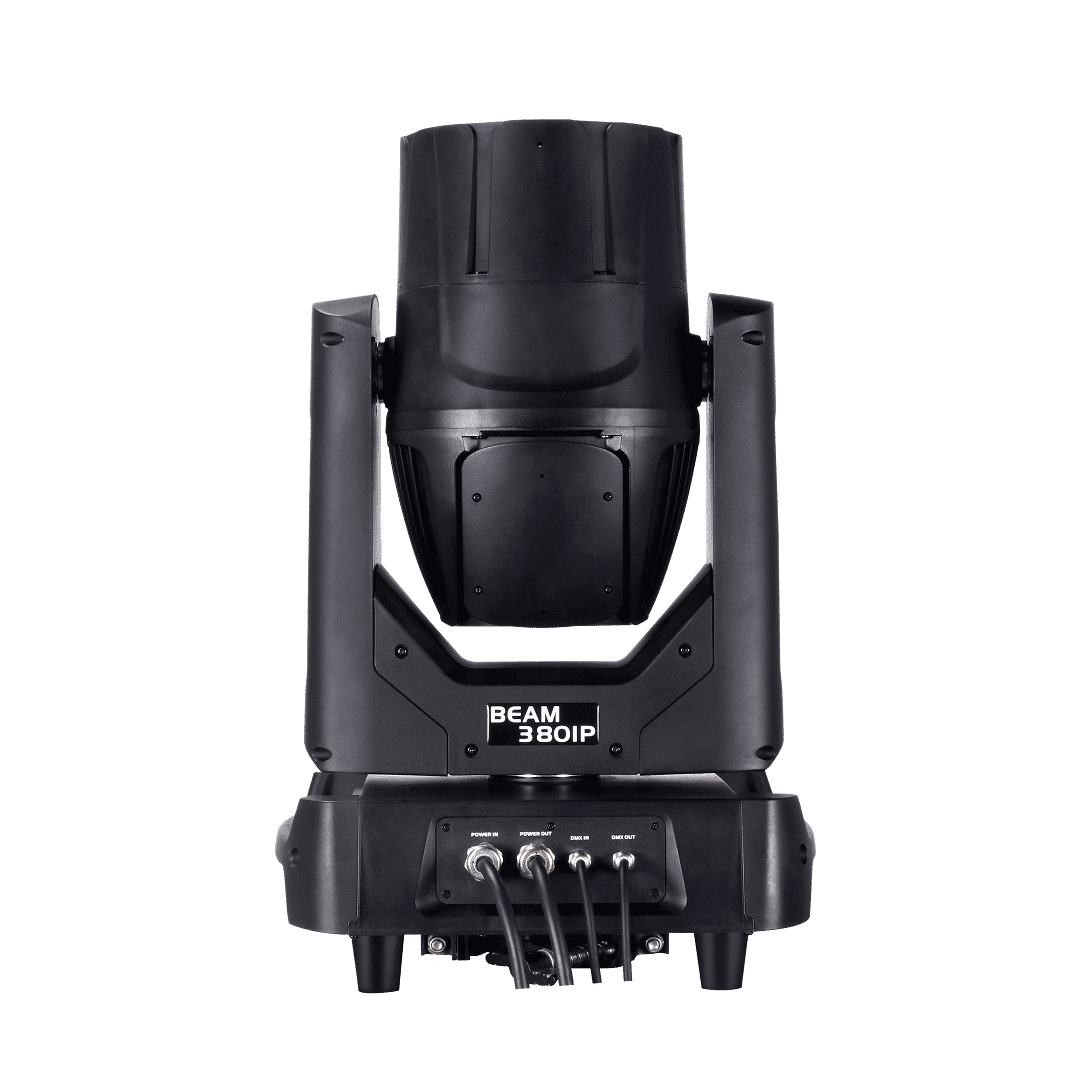

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
