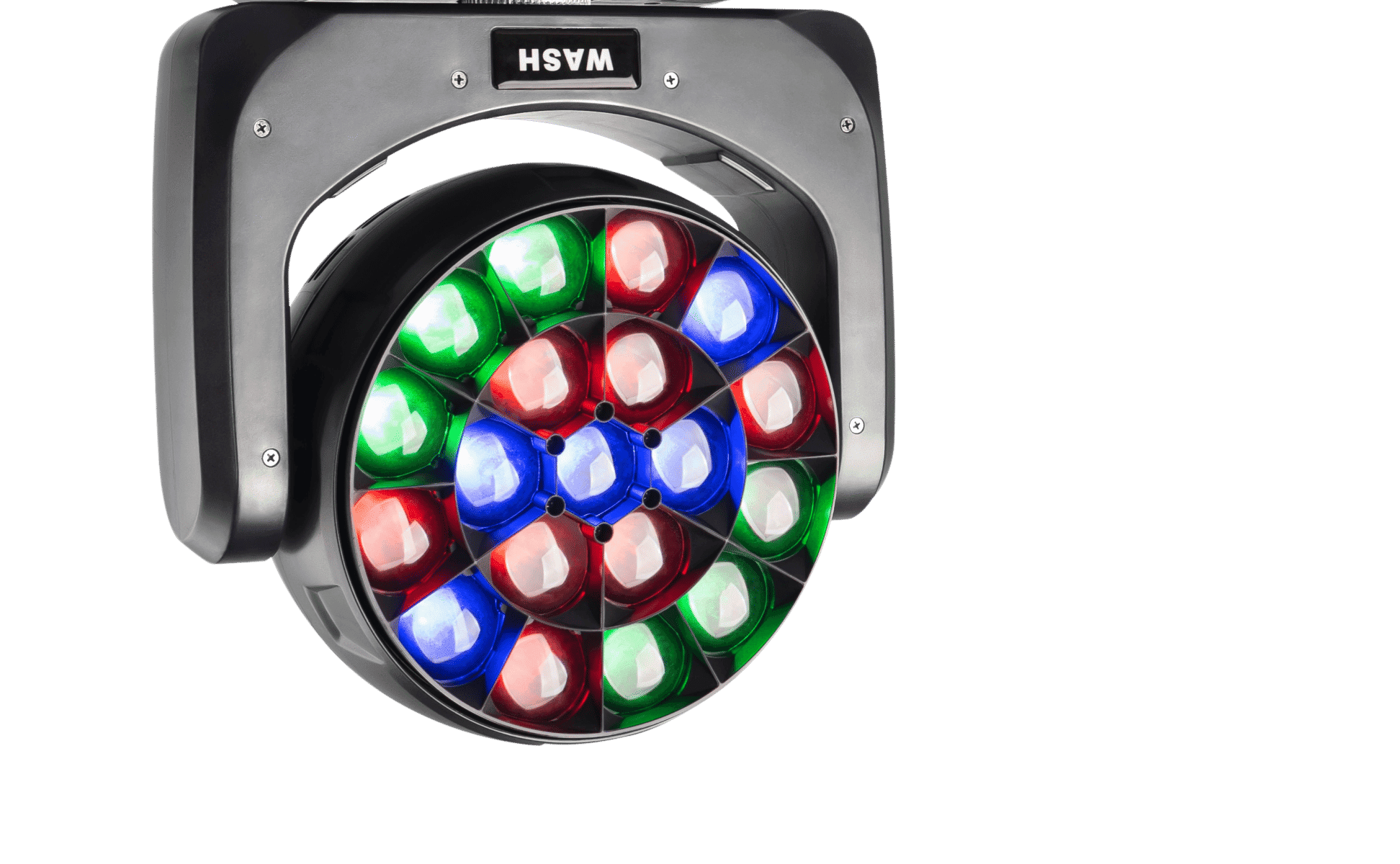

WASH 1920 BEE EYE ZOOM
Intelligent Zoom. Vivid Flowers.
The Wash 1920 Bee Eye Zoom redefines versatility on stage. Featuring 19 powerful 20W RGBW LEDs and a highly efficient optical system, it creates stunning kaleidoscopic 'flower' effects that captivate audiences. With an intelligent 5.8° to 55° zoom range, it transitions seamlessly from dynamic beam shows to wide, even stage washes.
Designed with the user in mind, it boasts a 180° reversible colorful TFT display for easy rigging in any orientation. The intelligent thermal management system automatically adjusts fan speeds based on head temperature, ensuring silent operation during crucial theatrical moments. From generating custom numbers and letters via pixel control to bathing the stage in rich colors, the 1920 Zoom does it all.
Technical Parameters
Optics & Light Source
- Source: 19x 20W 4-in-1 RGBW LEDs
- Zoom Range: 5.8° to 55° wide linear zoom
- Optics: Custom high-efficiency lenses for vivid flower effects
Dynamic Effects
- Pixel Mapping: Ability to display arrows, numbers, and custom shapes
- Macros: Extensive library of dynamic color and pattern macros
- Rotation: 360° infinite rotating front lens mechanism
Control & Movement
- Movement: 540° Pan / 270° Tilt (Smooth 16-bit control)
- Display: 1.8-inch TFT colorful display (180° reversible)
- DMX Channels: 21 to 99 channels supported for advanced mapping
Electrical & Physical
- Power Consumption: 350W (AC 100-240V, 50/60Hz)
- Cooling: Auto-adjusting smart fans based on head temperature
- Dimensions: 338 x 254 x 375 mm
- Weight: 8.5 kg (Compact and agile)
Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
Download All (ZIP)
