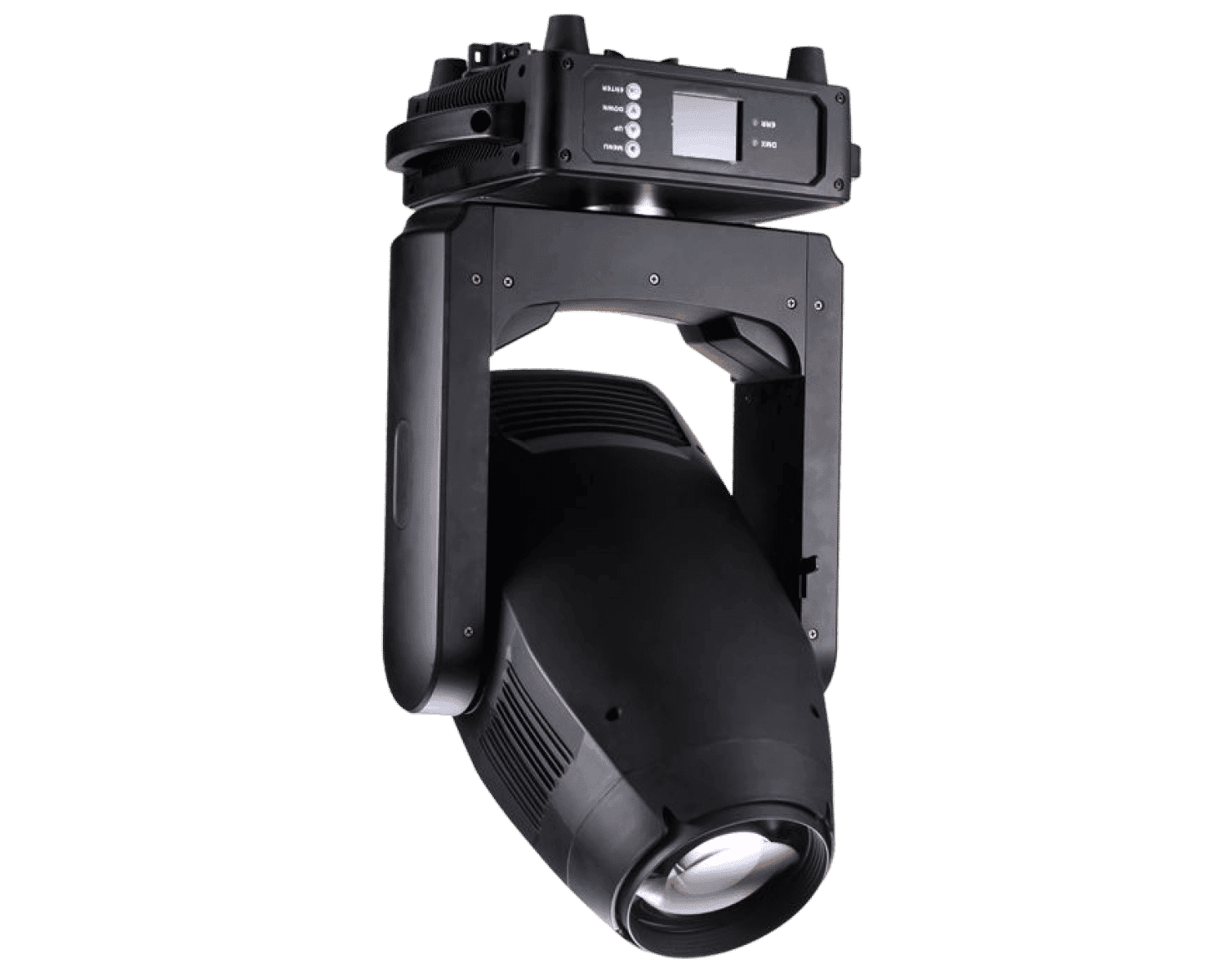

BSWF 700 PROFILE
Master The Shadows. Frame The Light.
The SPARK M700 Profile is a flagship 4-in-1 (Beam, Spot, Wash, Profile) luminaire engineered for ultimate precision and pristine light quality. Powered by a highly efficient 600W LED module delivering a pure 7200K color temperature, it boasts an incredible 20,000-hour lifespan. Its advanced optical system, featuring a massive 150mm front lens, provides a versatile linear zoom ranging from a piercing 4° beam to a broad 36° wash. Emitting a stunning 111,000 lux at 5 meters, this IP20-rated powerhouse is the definitive choice for professional theaters, television studios, and large-scale indoor productions.
Total color control meets boundless creativity. The M700 Profile is equipped with a linear CMY color mixing system and variable CTO (2800K-6000K), allowing you to craft any hue imaginable, complemented by an additional 5-slot color wheel. Its defining feature is a full-directional framing system that generates precise geometric shapes with 0°-90° rotation. Add to this a rotating gobo wheel (7 patterns), a static gobo wheel (7 patterns), two dynamic animation effects, and dual rotatable prisms (8-facet and 12-facet). Driven by ultra-smooth 16-bit movement and controlled via an intuitive LCD touch screen, the M700 is a true lighting designer's dream.
Technical Parameters
Optics & Light Source
- Source: 600W LED Module, 7200K color temperature
- Color Rendering: CRI > 70
- Expected Lifespan: 20,000 hours
- Zoom Range: 4° to 36° (Linear zoom system, 150mm lens)

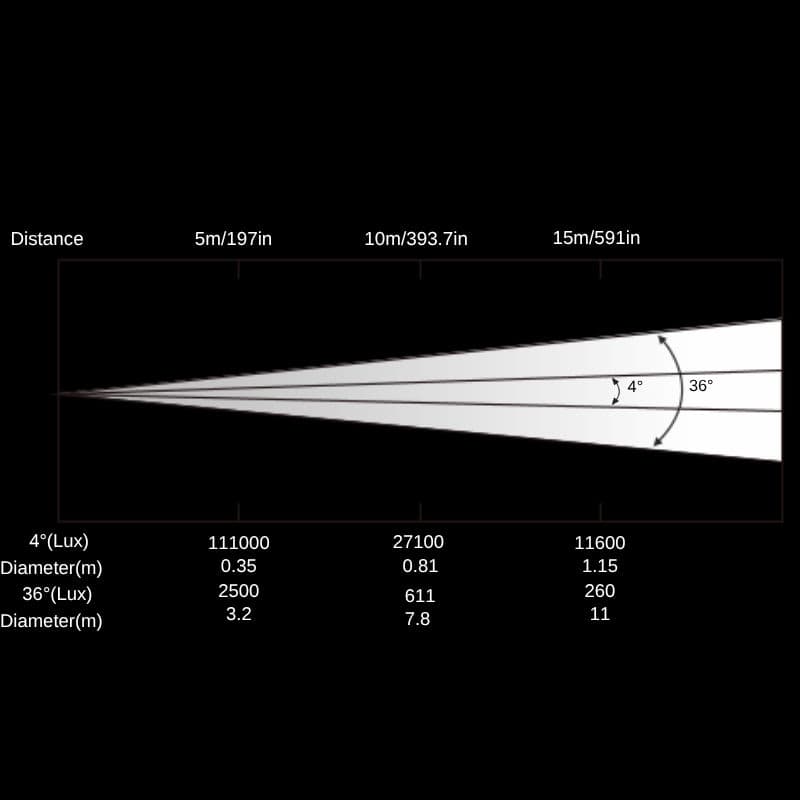

- Illuminance (4°): 111,000 lux @ 5m / 27,100 lux @ 10m
- Illuminance (36°): 2,500 lux @ 5m / 611 lux @ 10m
- Dimming: 0-100% linear dimming
Color & Framing System

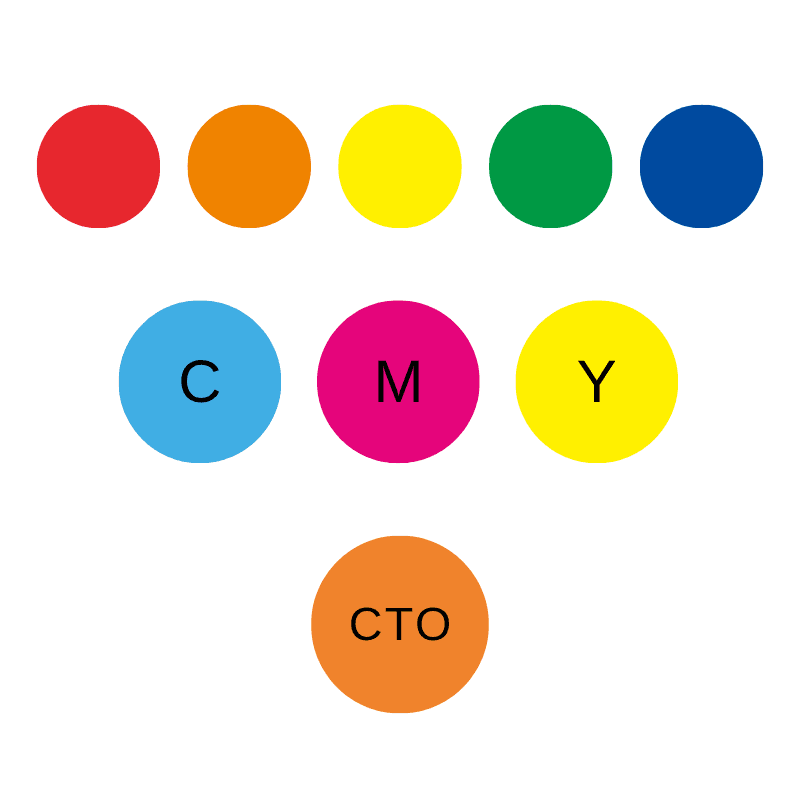

- Color Mixing: Linear CMY color mixing system
- Color Correction: Linear CTO adjustment (2800K - 6000K)
- Color Wheel: 5 static colors + white
- Framing Shutter: Full-directional geometric framing system (0°-90° rotation)

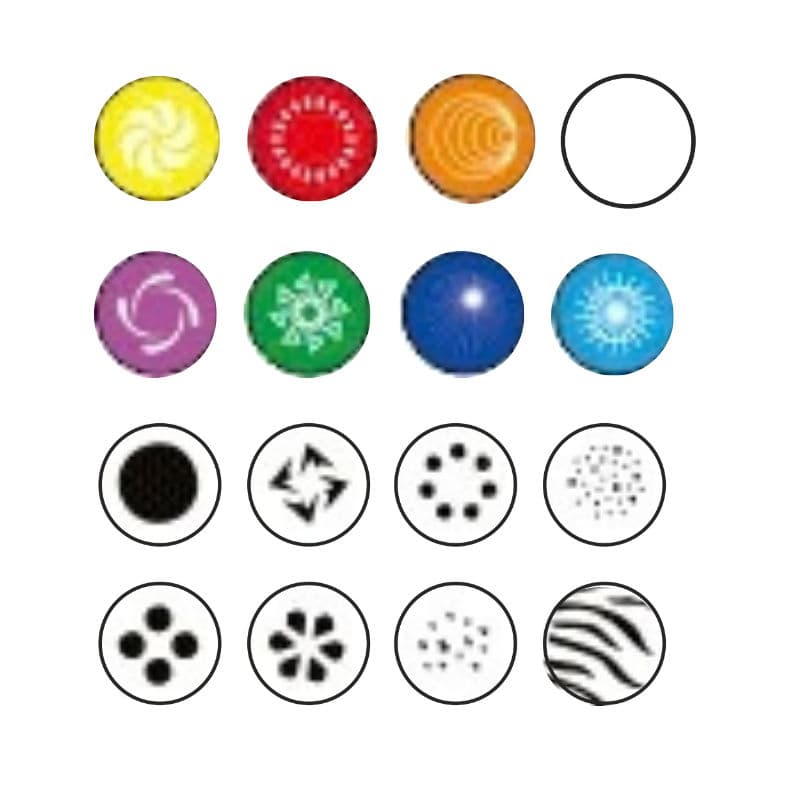

Dynamic Effects
- Rotating Gobos: 7 patterns + white
- Static Gobos: 7 patterns + white
- Animation Wheel: 2 distinct dynamic effect wheels
- Prisms: 1x 8-facet, 1x 12-facet (bi-directional rotation)
- Optics: Electronic focus, Independent frost effect
- Strobe: 1-25 times/sec with multiple built-in effects
Control & Movement
- DMX Channels: 35CH
- Pan/Tilt: 540° / 270° (16-bit precision, auto-correction)
- Mechanical Lock: Vertical (Tilt) lock for safe transport
- Control Protocols: DMX512 / RDM
- Display: LCD touch screen with 4 tactile buttons
- Updates: Software upgrade via DMX connection
Electrical & Physical
- Input Power: AC100-240V, 50/60Hz (759W Power Consumption)
- Connectors: Powercon input, 3-pin & 5-pin DMX in/out
- IP Rating: IP20 (Indoor)
- Working Temp: -10°C to 45°C

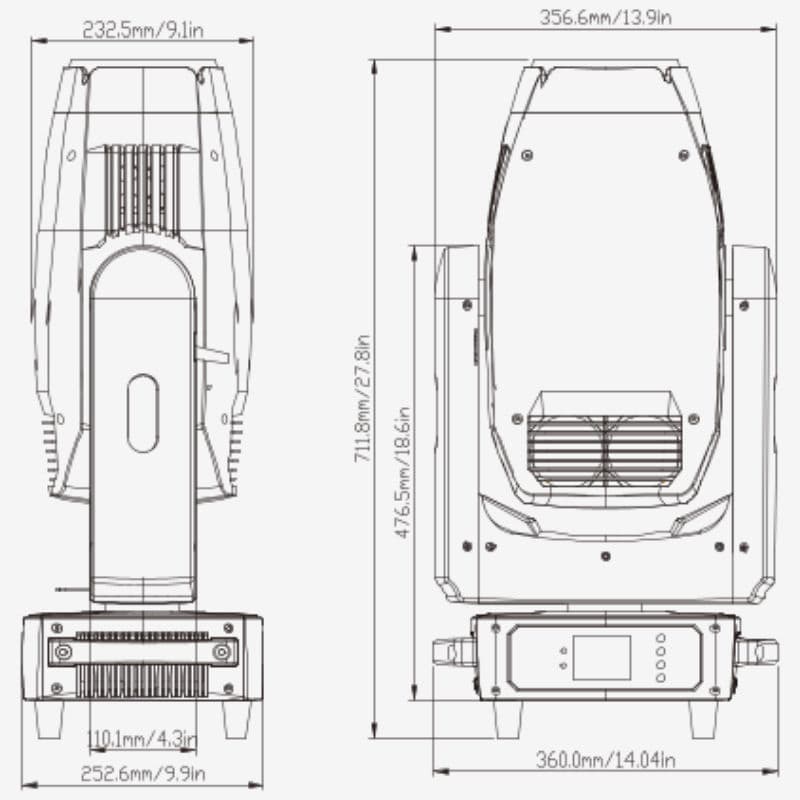

- Dimensions: 360 x 252.6 x 711.8 mm (14.04 x 9.9 x 27.8 in)
- Net Weight: 26.1 kg (57.5 lbs)

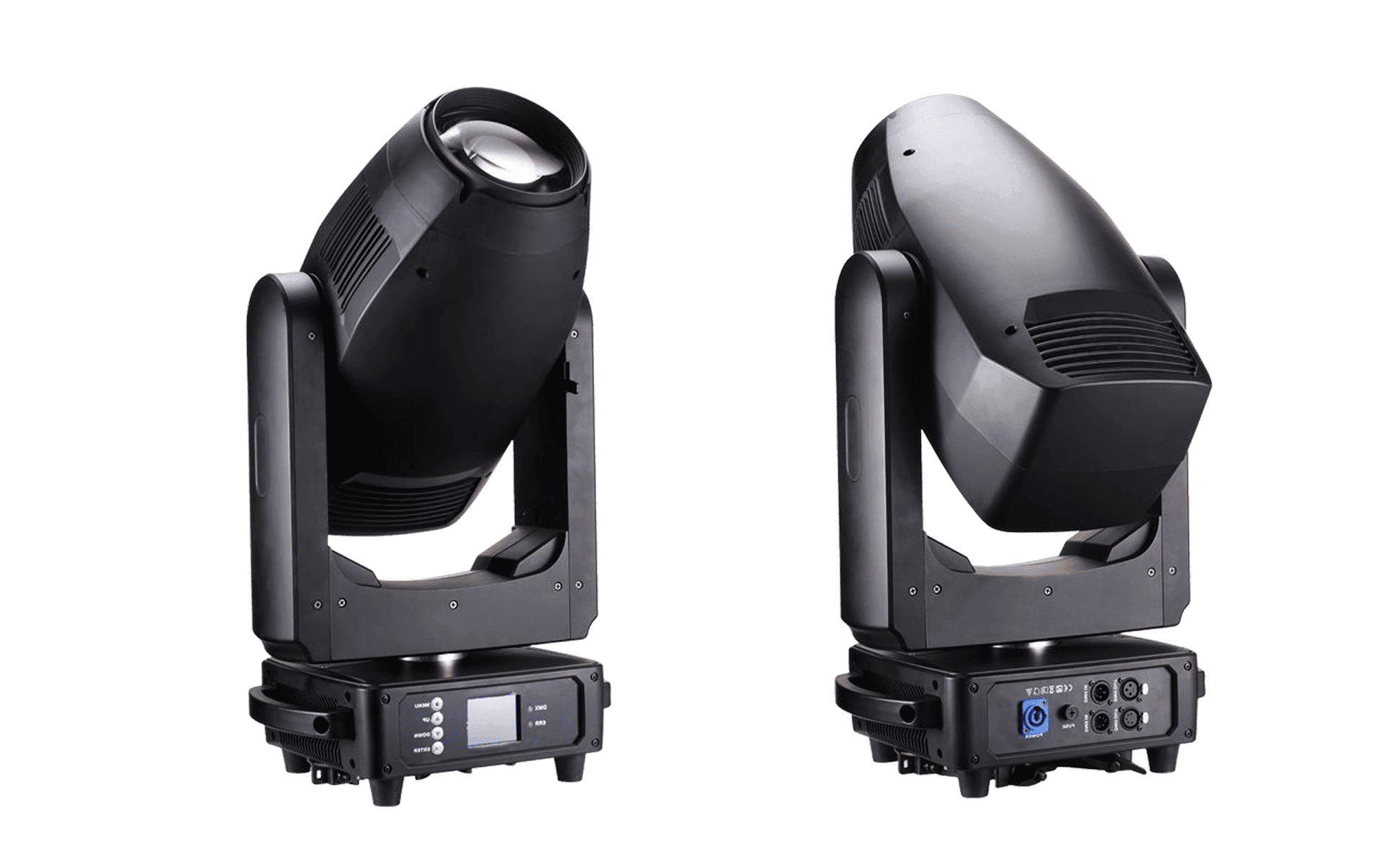

Engineering Details

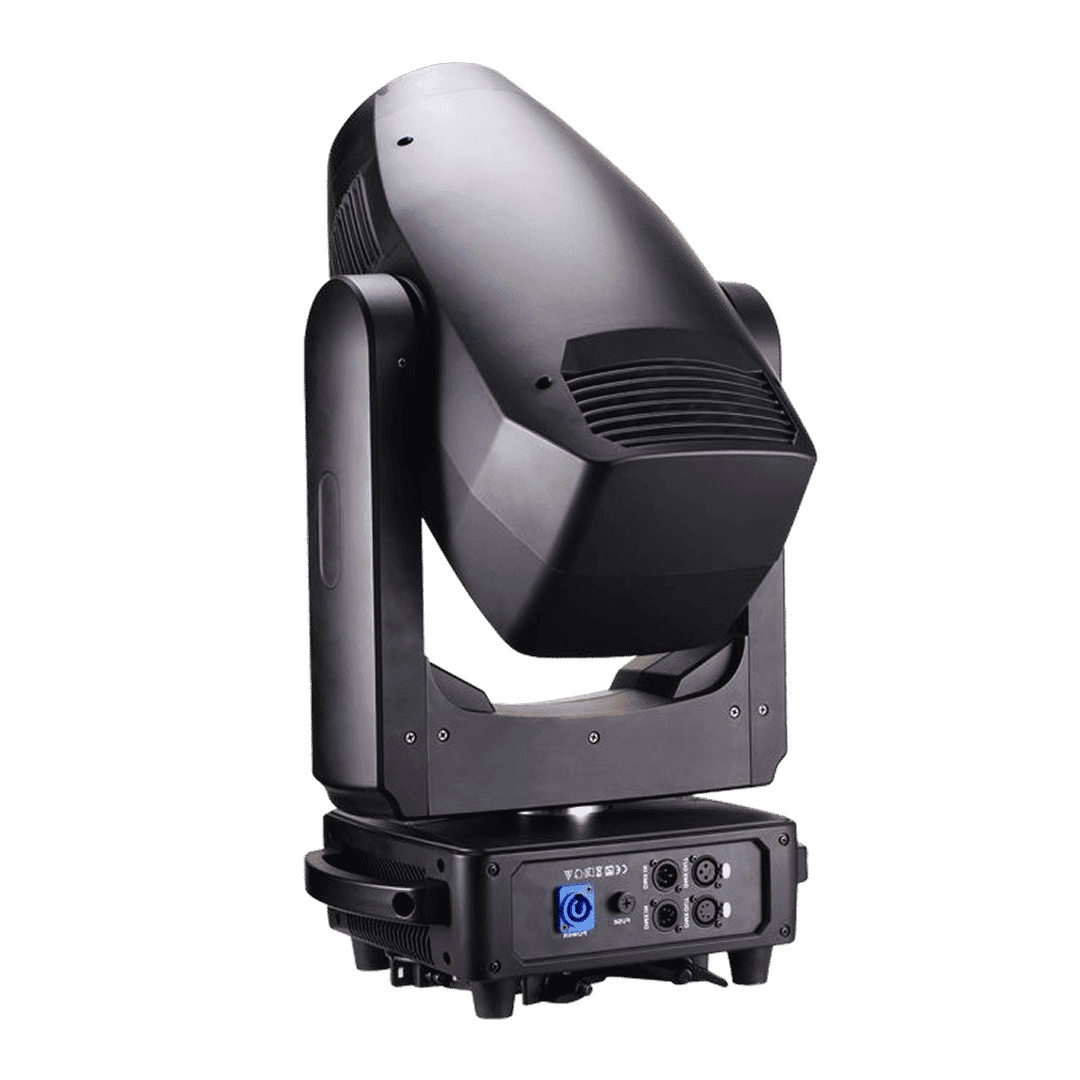

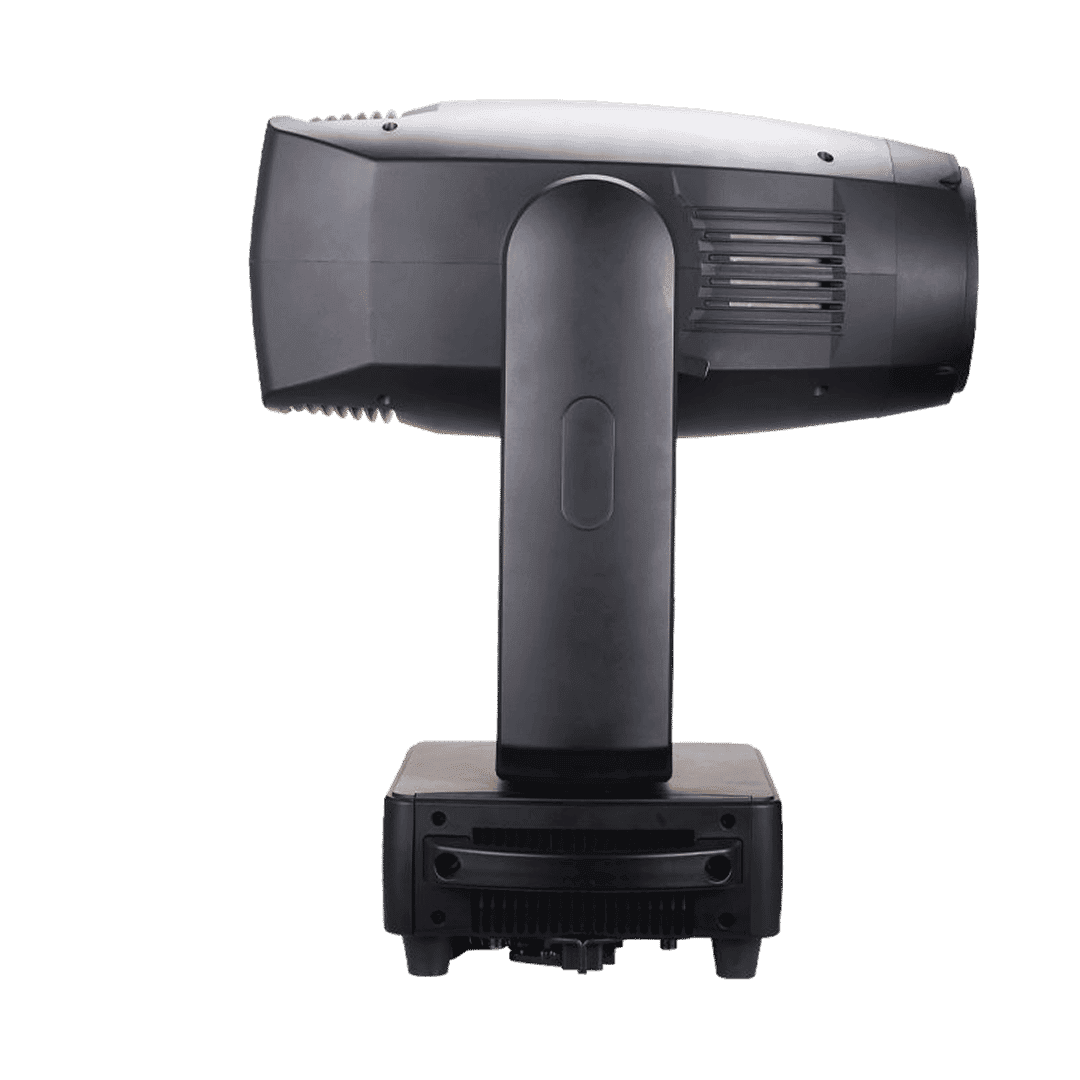

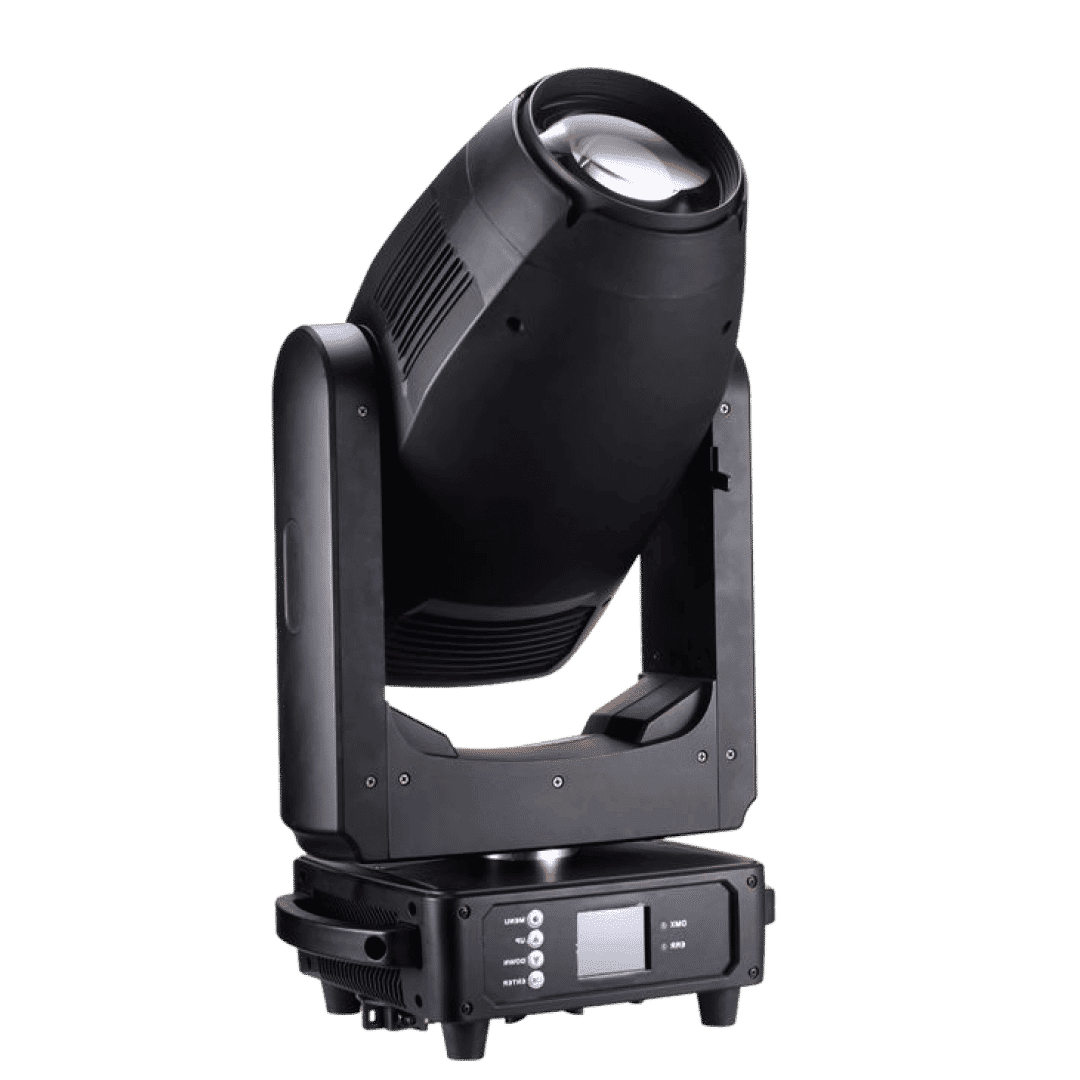

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
