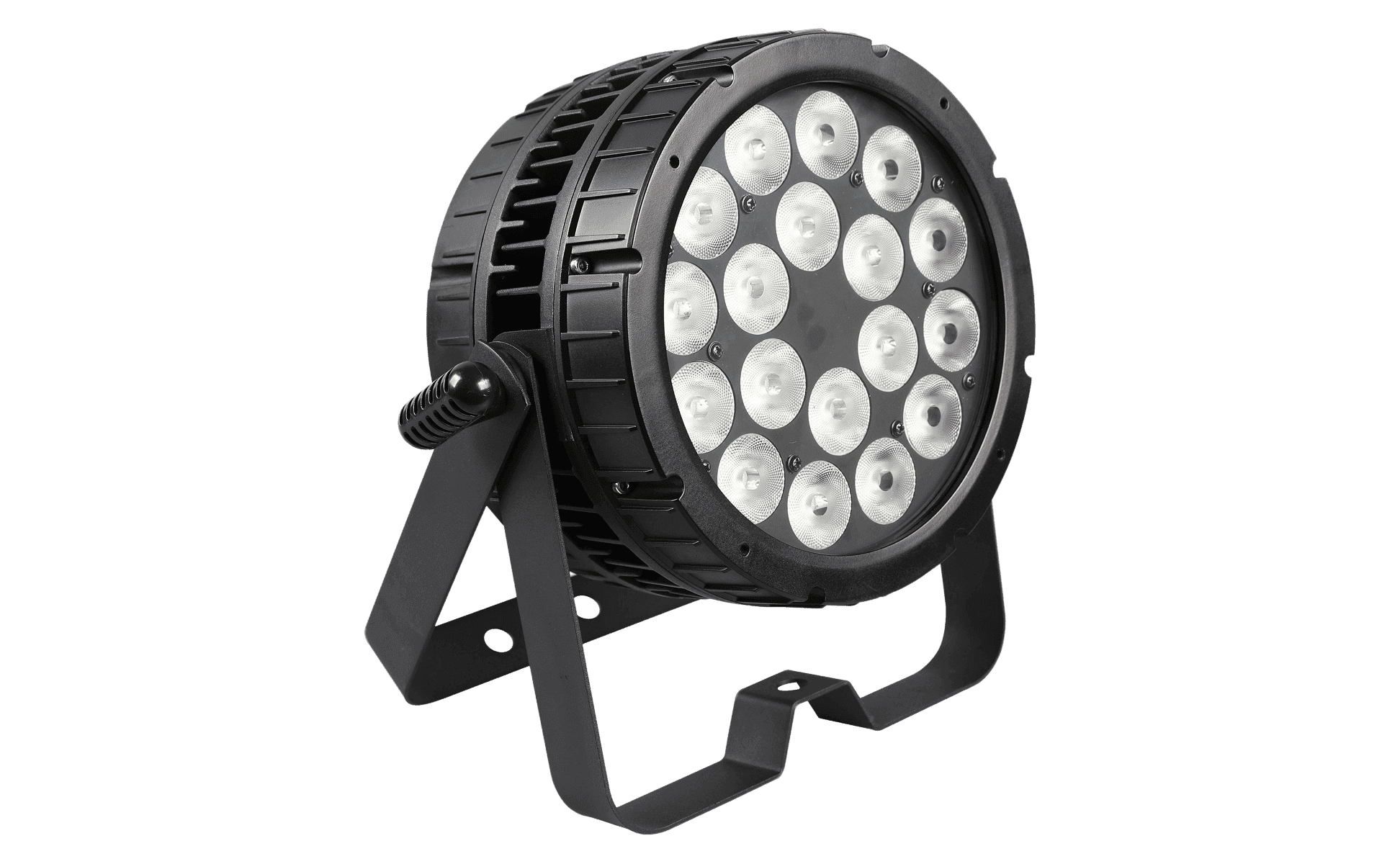

PAR 1815 IP65
Resilient Design. Premium Illumination.
Built for all-weather performance, the Par 1815 IP is equipped with 18 high-power 15W RGBWA-UV 6-in-1 LEDs sealed inside an IP65 waterproof housing. It creates stunningly vivid environments and deep color saturations across a focused 25° beam angle.
Consuming just 200W, it is an incredibly efficient lighting solution for dynamic architectural and stage applications. The unit offers comprehensive DMX control across 6, 7, 8, or 10 channels, enabling precision dimming and seamless integration into professional setups.
Technical Parameters
Optics & Light Source
- Source: 18x 15W 6-in-1 RGBWA-UV LEDs
- Beam Angle: 25° perfect for targeted up-lighting
- Lifespan: Rated for 20,000 hours of continuous use
Dynamic Effects
- Dimming: 0-100% linear dimming curve
- Strobe: Adjustable high-speed strobe rates (1-25Hz)
- Color Output: Brilliant RGBAW + UV mixing
Control & Movement
- Protocols: DMX512 / Auto-Play / Sound-Active / Master-Slave
- DMX Channels: Flexible 6 / 7 / 8 / 10 CH modes
- Interface: LED digital tube display
Electrical & Physical
- Power Consumption: 200W (AC100-240V, 50/60Hz)
- Environment: IP65 Rated (Safe for outdoor wet environments)
- Dimensions: 287 x 222 x 248 mm
- Weight: 4.6 kg

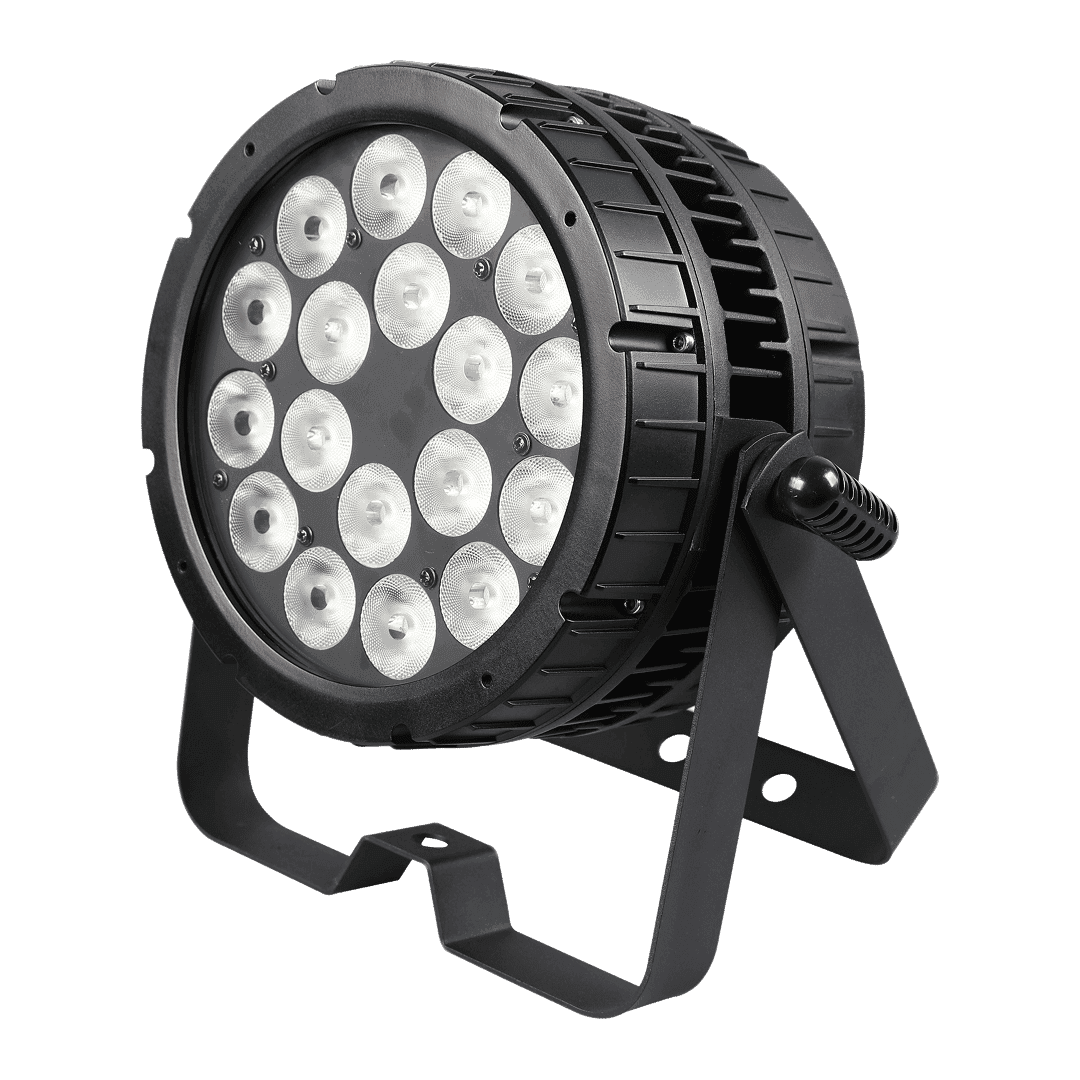

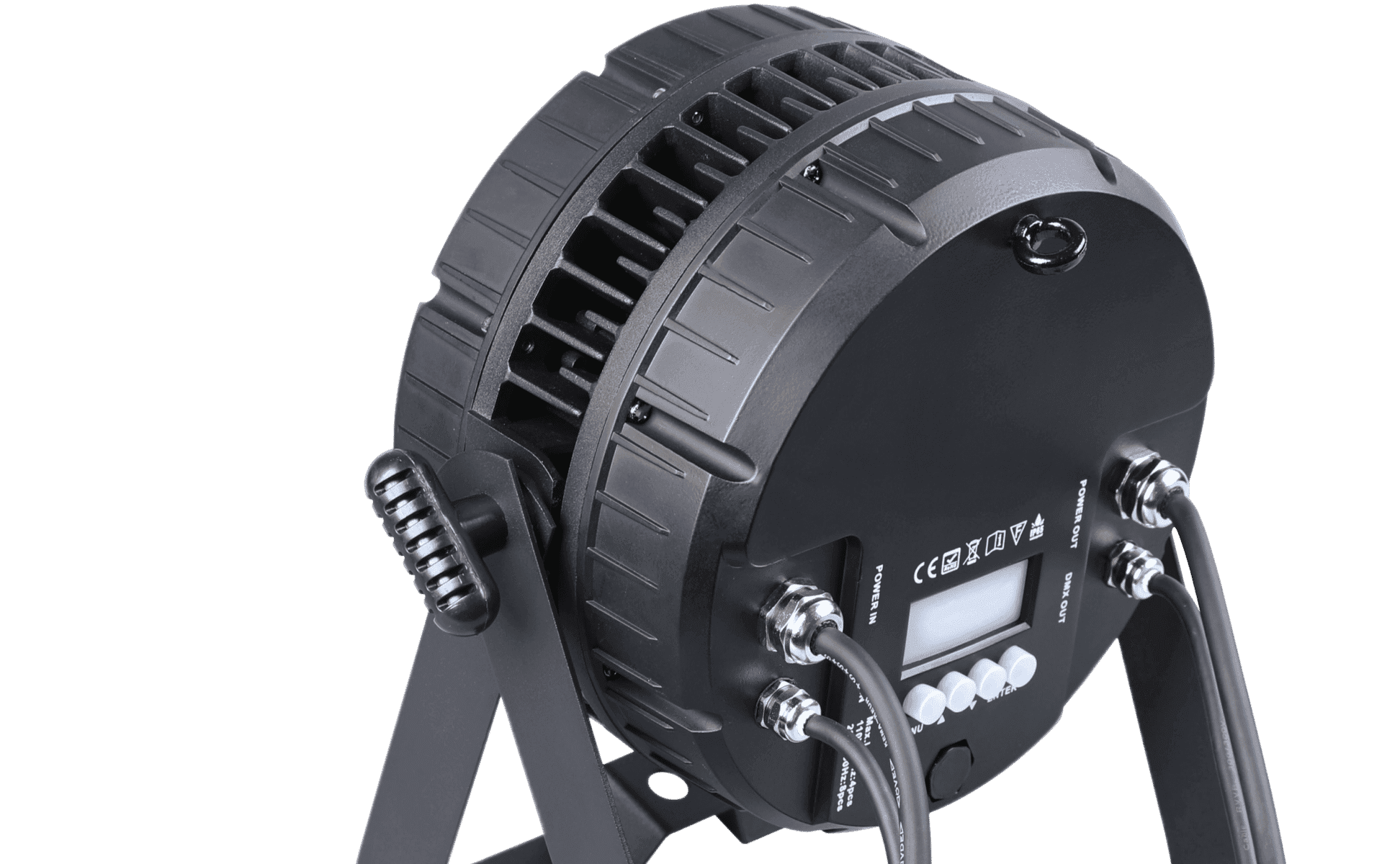

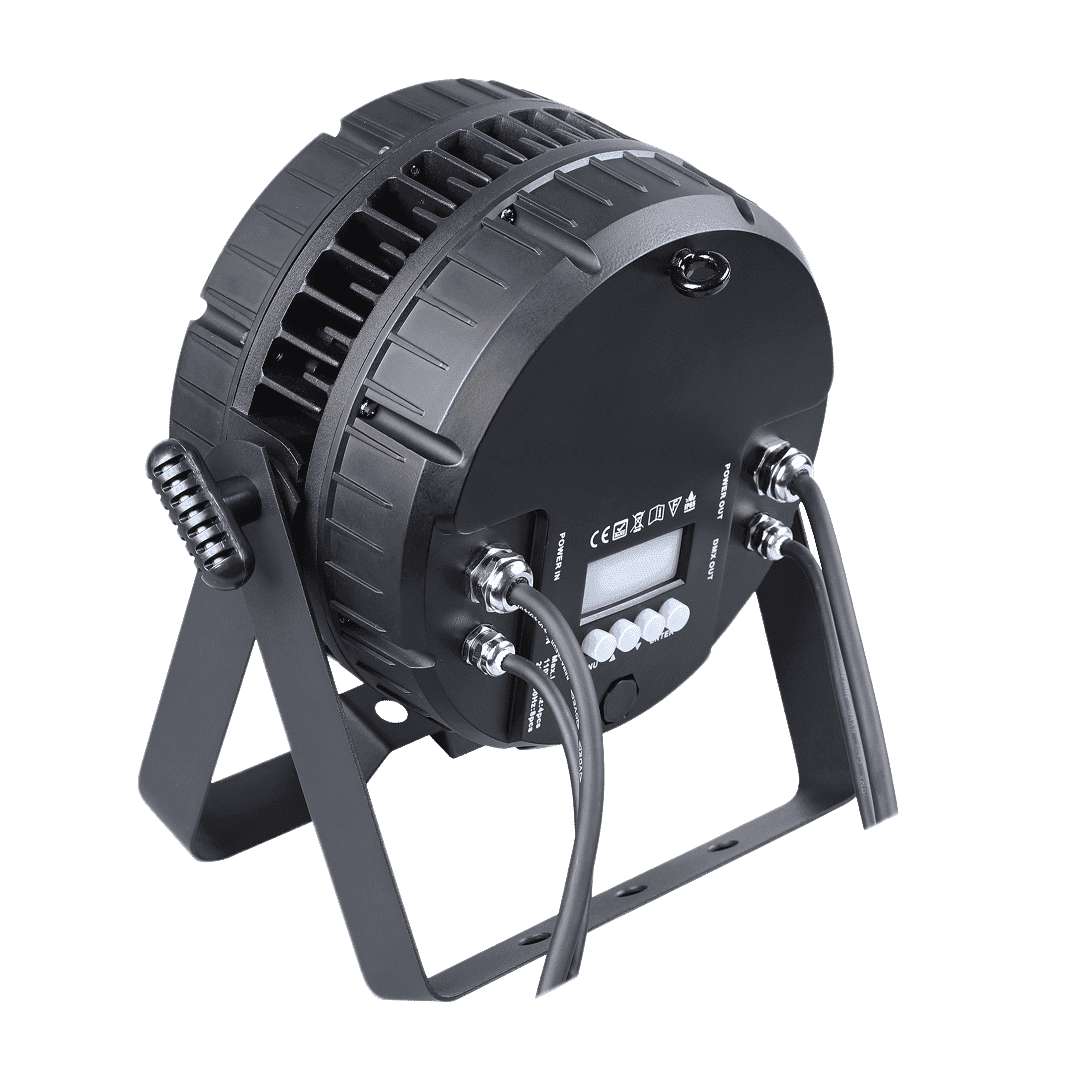

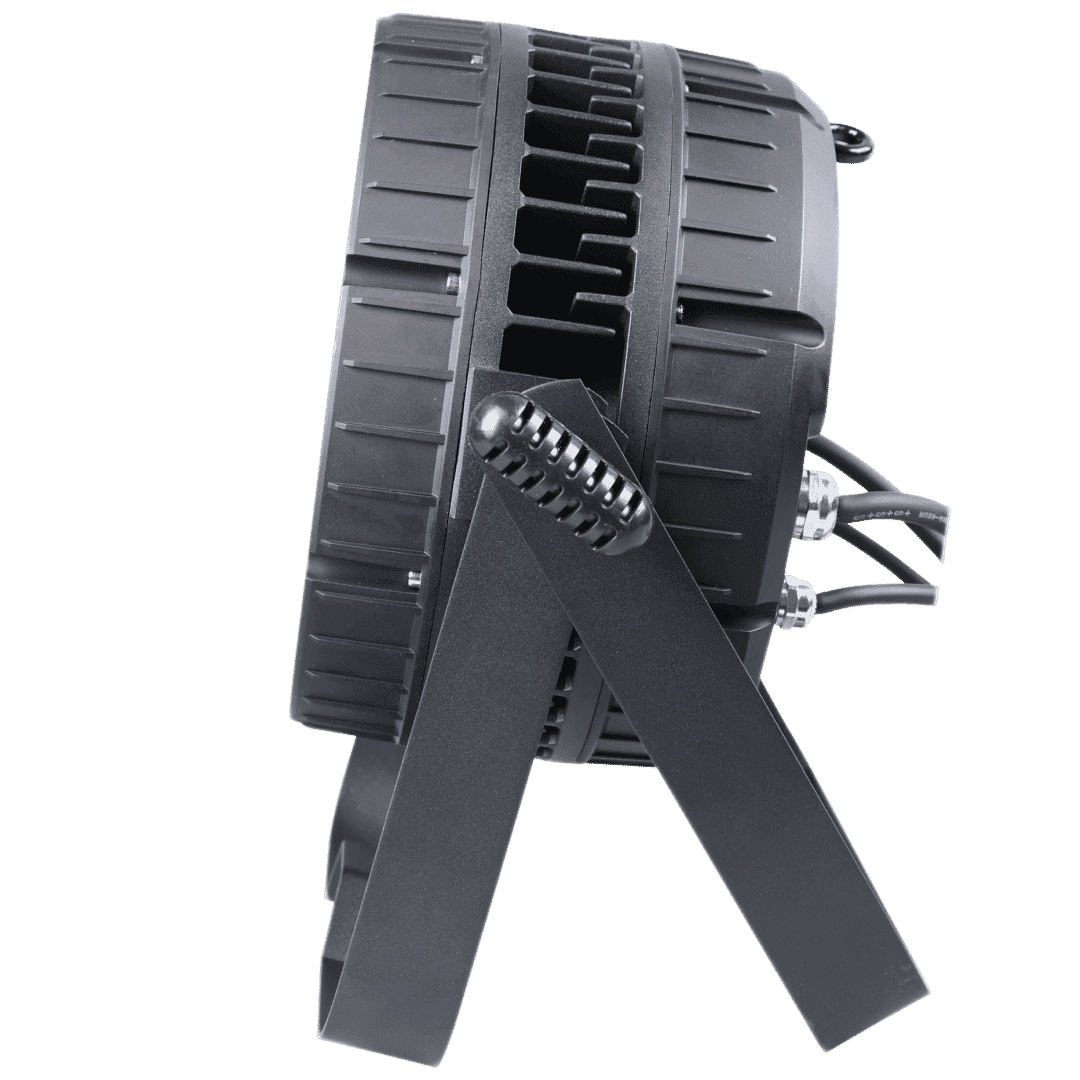

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
Download All (ZIP)
