OutdoorLED Display

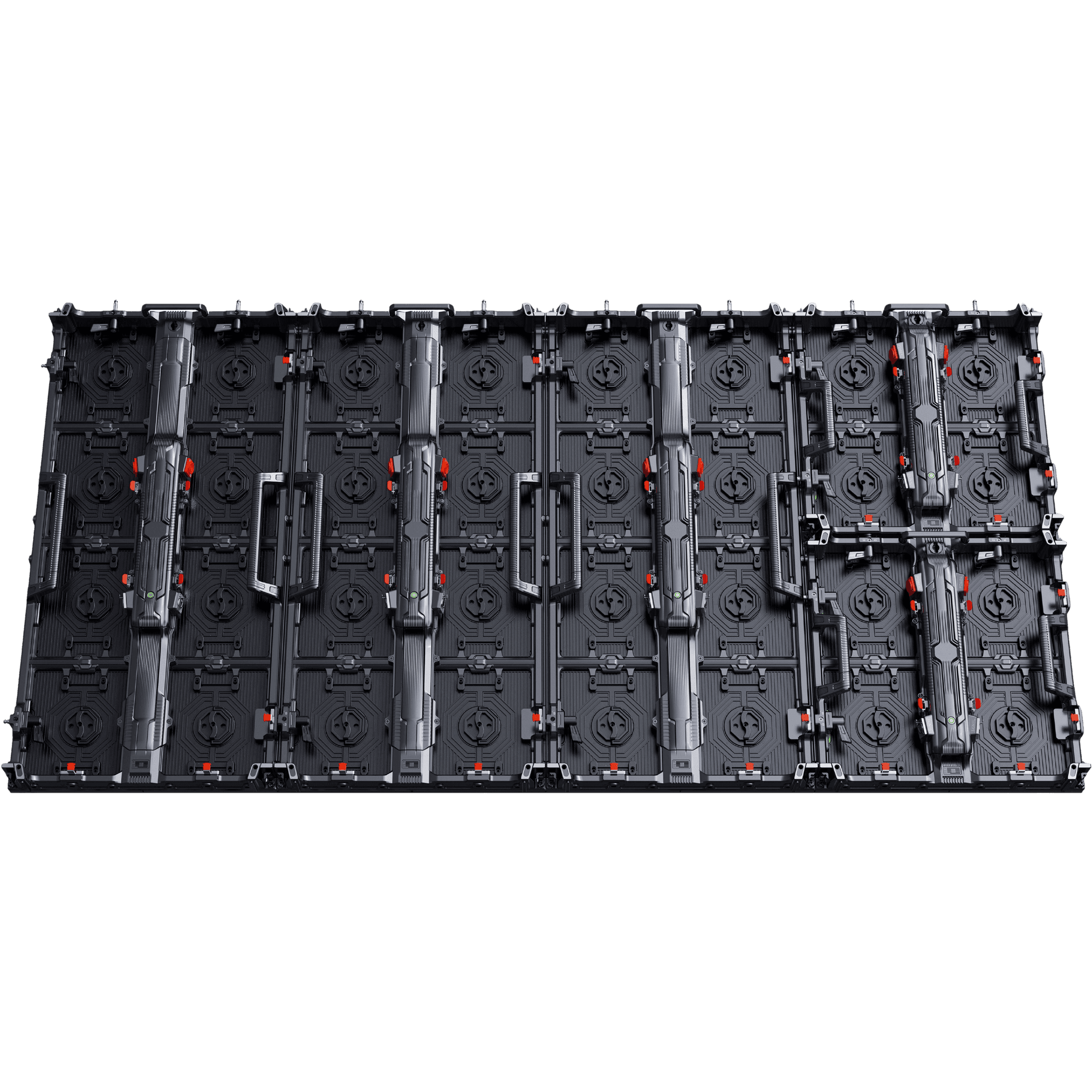

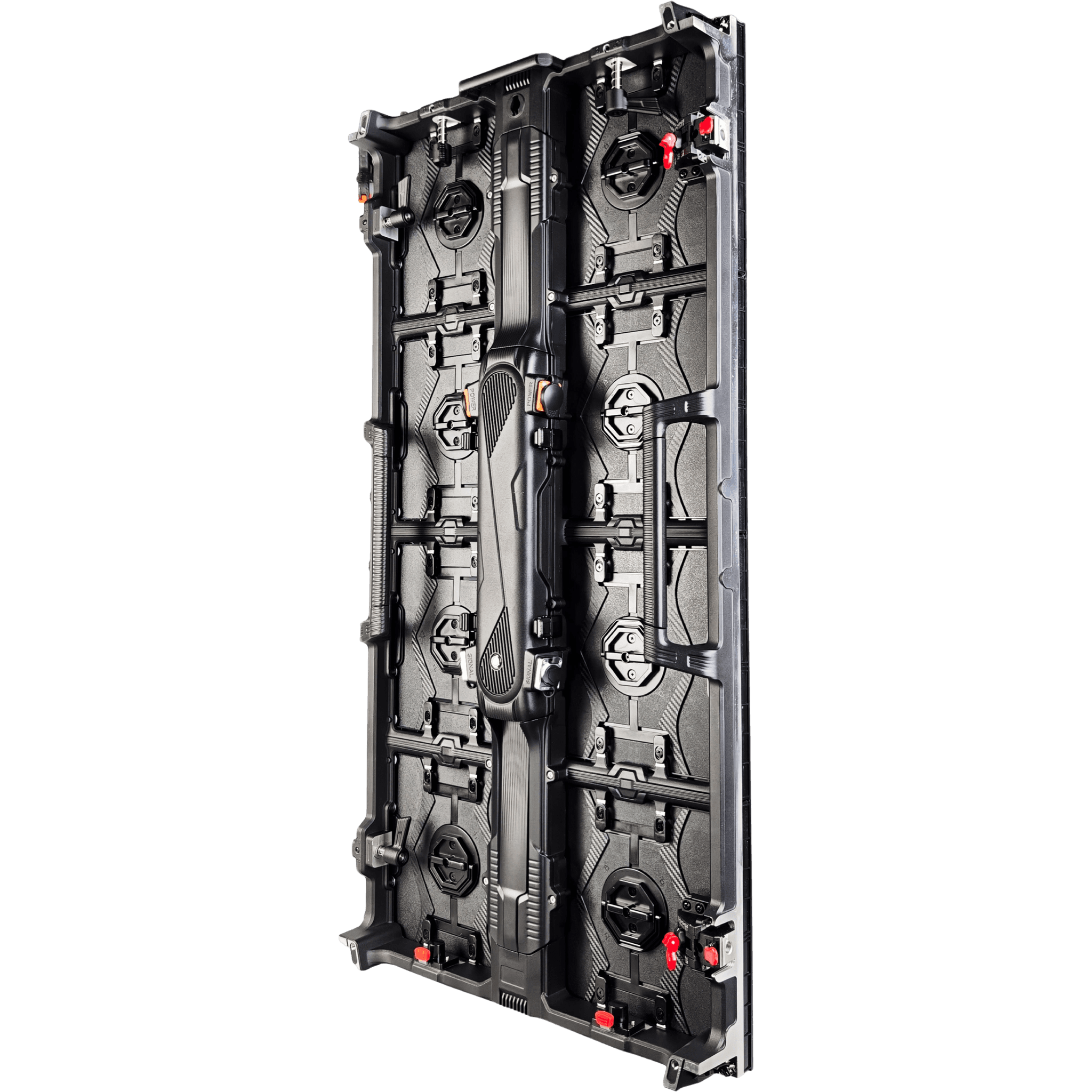

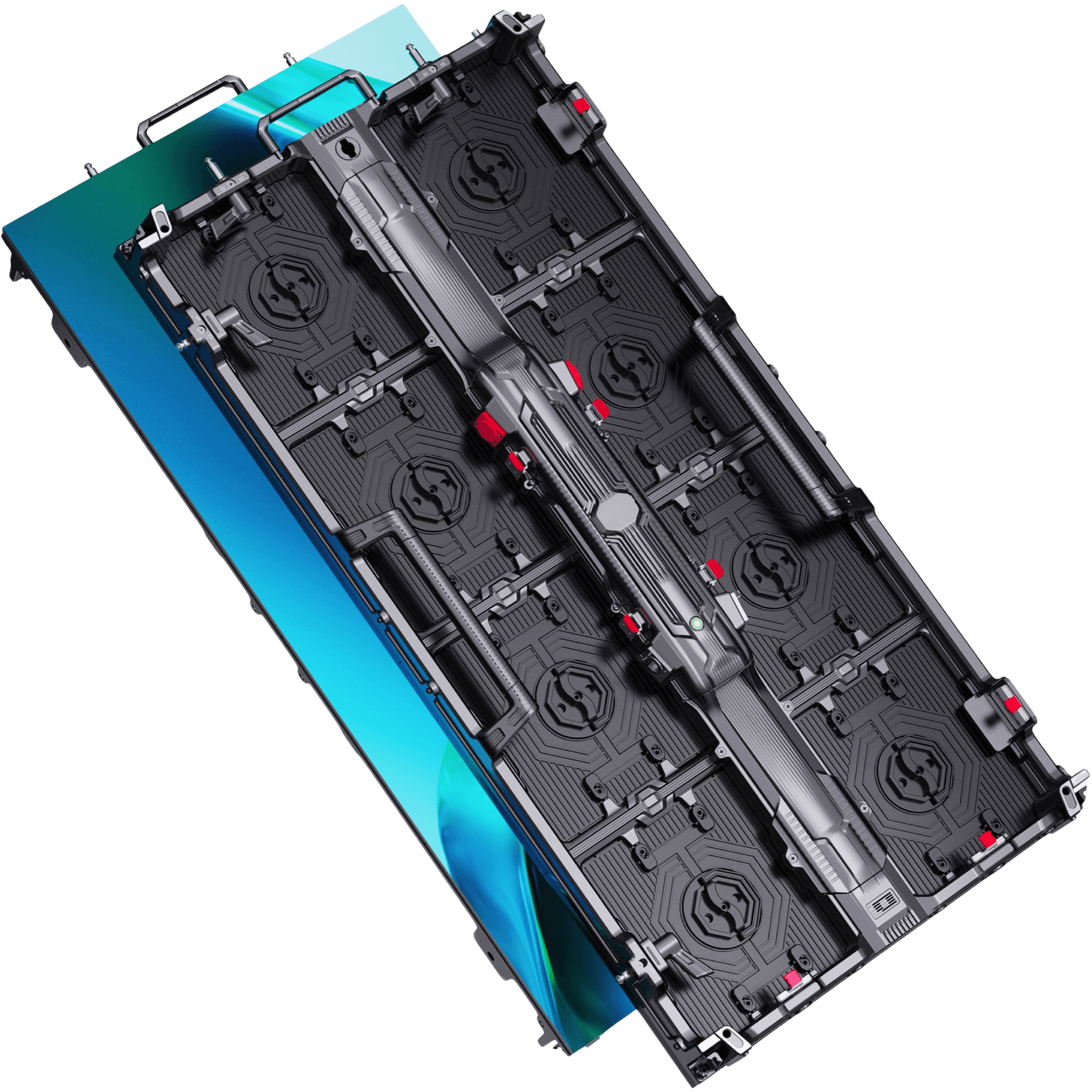

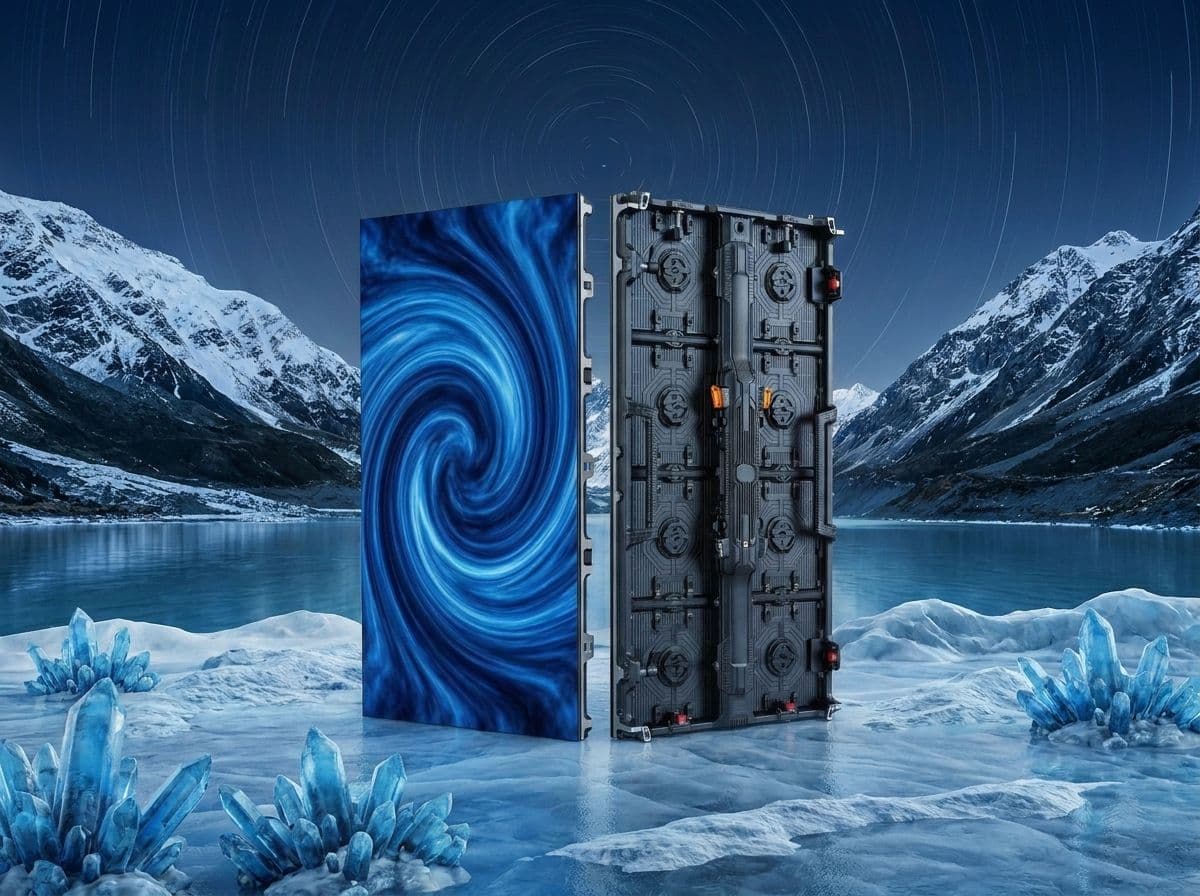

OUTDOOR P2.976 (CURVED) (500×1000)
High-Refresh Curved Outdoor Display
An advanced outdoor LED display featuring a 2.976mm pixel pitch and SMD1415 3-in-1 LEDs. Designed for high-end events offering an ultra-high 7680Hz refresh rate and flawless 2K/4K visual performance, with curved cabinet locks for creative stage designs.
Optical
- Pixel Pitch
- 2.976 mm
- Pixel Density
- 112,896 pixels / m²
- Resolution
- Module: 84×84 | Cabinet: 168×336
- Brightness
- 4400 - 4800 nits (Color Temp: 8000-12000K)
- Viewing Angle
- 160° Horizontal / 120° Vertical
- Refresh Rate
- 7680 Hz
- Gray Scale
- 16384 levels
Physical
- Cabinet Material
- Die cast aluminum
- Cabinet Size
- 500 × 1000 × 87 mm
- Module Size
- 250 × 250 mm
- Cabinet Weight
- 17.5 KG per cabinet
- Protection
- Outdoor Standard
- Temperature Range
- Working: -10~40°C | Storage: -20~60°C (No Condensation)
Control System
- Control Mode
- Constant Current Drive, 21 Scans (ICN1065L)
- Frame Frequency
- 60 Hz
- Signal Inputs
- 2K HD, 4K UHD support
Power Supply
- Average Power
- 300 - 450 W/m²
- Max Power
- 680 W/m²
Warranty
- Warranty
- Standard Manufacturer Warranty
Key Features
01

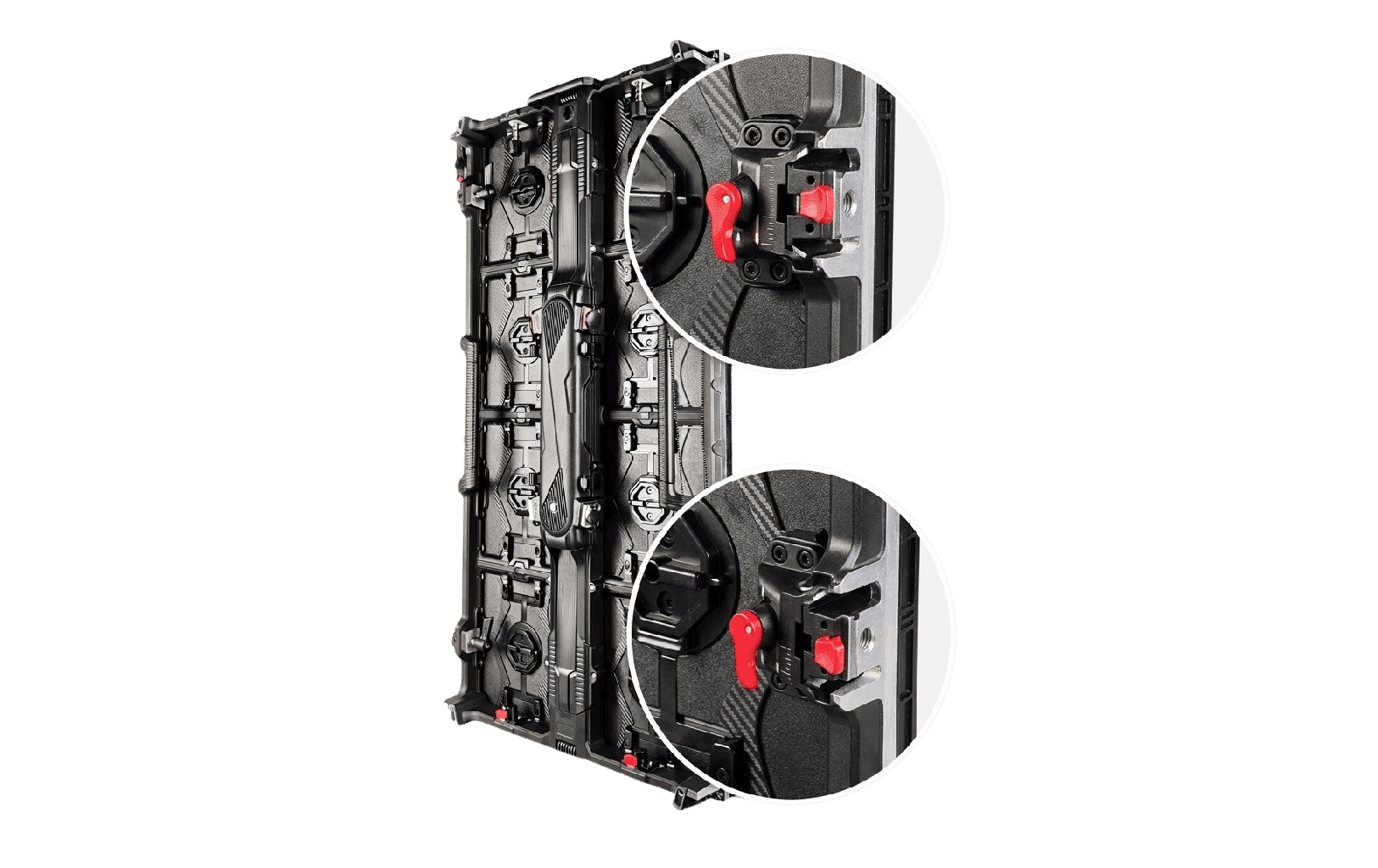

Curved Screen Capability
Equipped with high-precision angle locks, allowing the 500x1000mm cabinets to create seamless concave and convex curved displays for immersive stage setups.
02

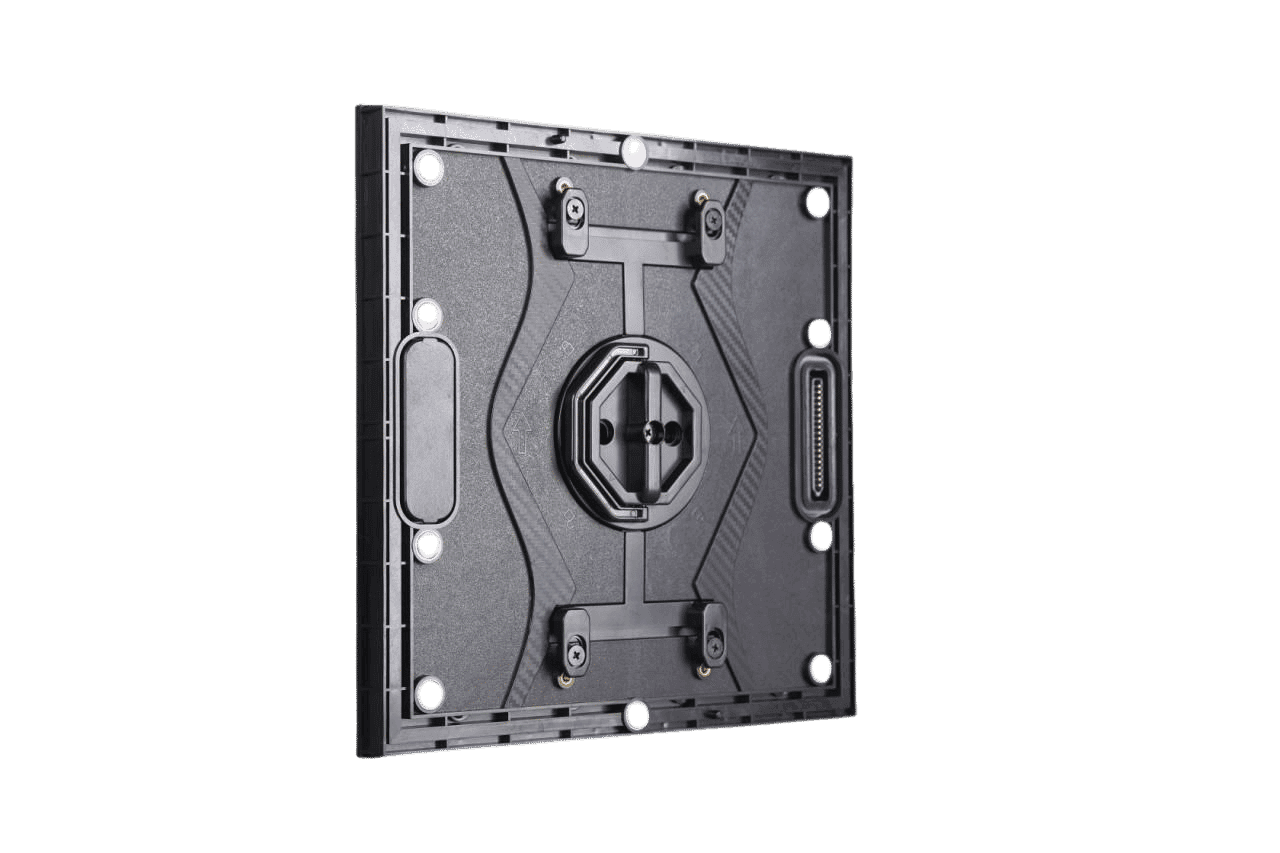

Magnetic Front Maintenance
Engineered for quick and effortless front-side module replacement using a magnetic suction design, significantly reducing maintenance downtime.
03
7680Hz Ultra-High Refresh Rate
Ensures flawlessly smooth, flicker-free playback, perfectly suited for high-speed professional camera broadcasting and elite visual experiences.
Technical Parameters
| Product Info | |
|---|---|
| Description | An advanced outdoor LED display featuring a 2.976mm pixel pitch and SMD1415 3-in-1 LEDs. Designed for high-end events offering an ultra-high 7680Hz refresh rate and flawless 2K/4K visual performance, with curved cabinet locks for creative stage designs. |
| Lifespan | 100,000 Hours |
| Applications | Outdoor events, curved stages, premium digital signage, rental applications |
| Optical | |
| Pixel Pitch | 2.976 mm |
| Pixel Density | 112,896 pixels / m² |
| Resolution | Module: 84×84 | Cabinet: 168×336 |
| Brightness | 4400 - 4800 nits (Color Temp: 8000-12000K) |
| Viewing Angle | 160° Horizontal / 120° Vertical |
| Refresh Rate | 7680 Hz |
| Gray Scale | 16384 levels |
| Physical | |
| Cabinet Material | Die cast aluminum |
| Cabinet Size | 500 × 1000 × 87 mm |
| Module Size | 250 × 250 mm |
| Cabinet Weight | 17.5 KG per cabinet |
| Protection | Outdoor Standard |
| Temperature Range | Working: -10~40°C | Storage: -20~60°C (No Condensation) |
| Control System | |
| Control Mode | Constant Current Drive, 21 Scans (ICN1065L) |
| Frame Frequency | 60 Hz |
| Signal Inputs | 2K HD, 4K UHD support |
| Power Supply | |
| Average Power | 300 - 450 W/m² |
| Max Power | 680 W/m² |
| Warranty | |
| Warranty | Standard Manufacturer Warranty |
