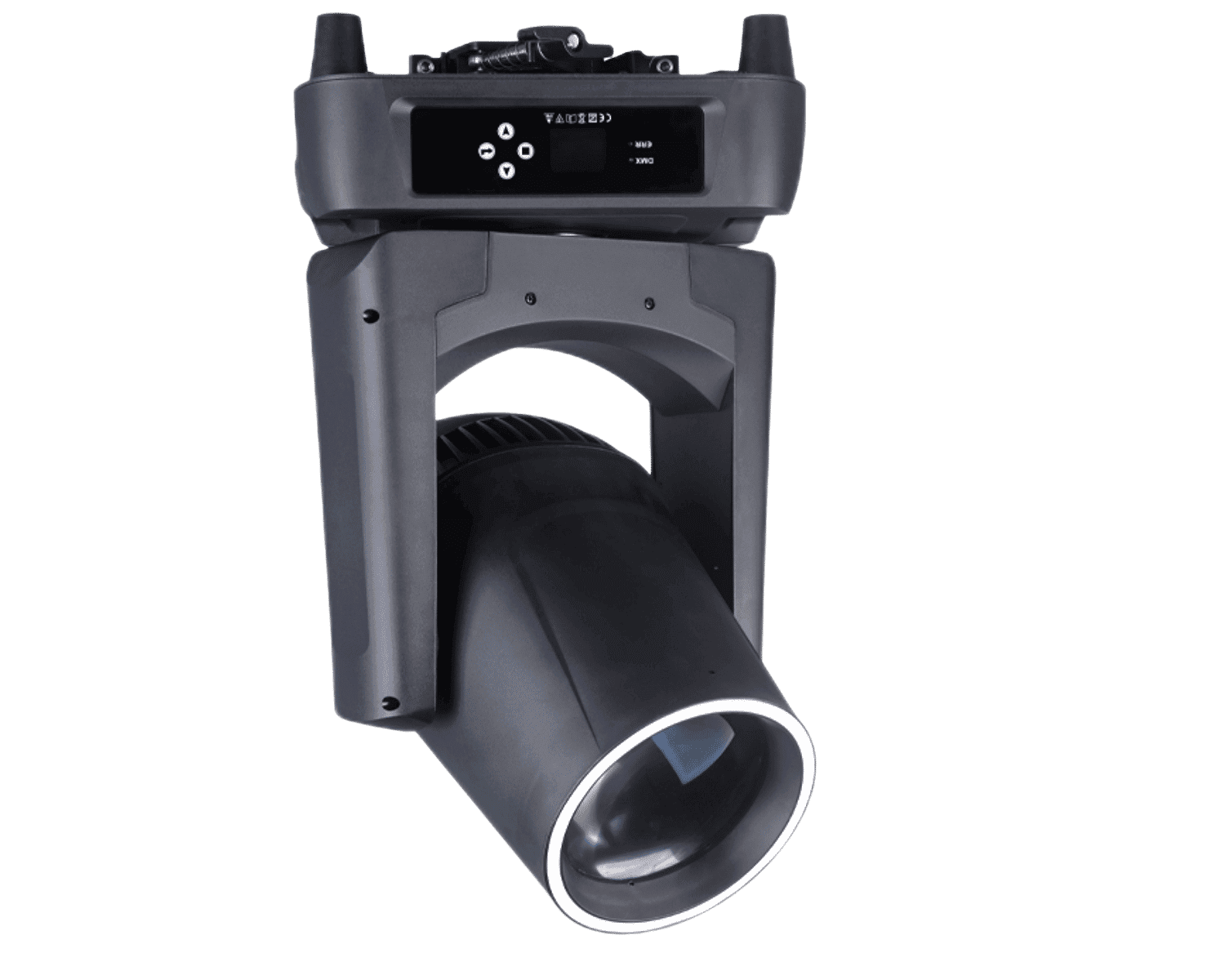

SPARK M380G MINI IP
Compact Size. Extreme Waterproof Power.
The SPARK M380G MINI IP is a revolution in outdoor beam lighting, packing devastating power into a highly compact, IP65-rated waterproof body. Driven by a highly efficient 300W light source with a crisp 8000K color temperature, it boasts an oversized 152mm front lens that produces a razor-sharp 1.8° beam. This cutting-edge combination yields an astonishing 453,000 lux at 10 meters. Complemented by an innovative auxiliary LED halo (33x0.2W RGB 3-in-1), this fixture ensures your stage shines vibrantly through rain, dust, and the harshest environments.
Do not let its 'MINI' name fool you; this fixture is a creative powerhouse. It features a rich color wheel with 11 colors, and a hybrid gobo wheel offering 10 static patterns plus 4 glass gobos for intricate mid-air textures. Aerial effects are exponentially multiplied by dual bi-directional rotatable prisms (16-facet and 8+16-facet) alongside dynamic color macros. Complete with RDM support, precise 16-bit movement with auto-correction, and independent frost, the M380G MINI IP guarantees flawless performance and effortless daisy-chain connectivity for large-scale outdoor rigs.
Technical Parameters
Optics & Light Source
- Main Source: 300W Lamp, 8000K color temperature
- Auxiliary Source: 33 x 0.2W RGB 3-in-1 LED
- Expected Lifespan: 2000 hours
- Beam Angle: 1.8° (Oversized 152mm Front Lens)

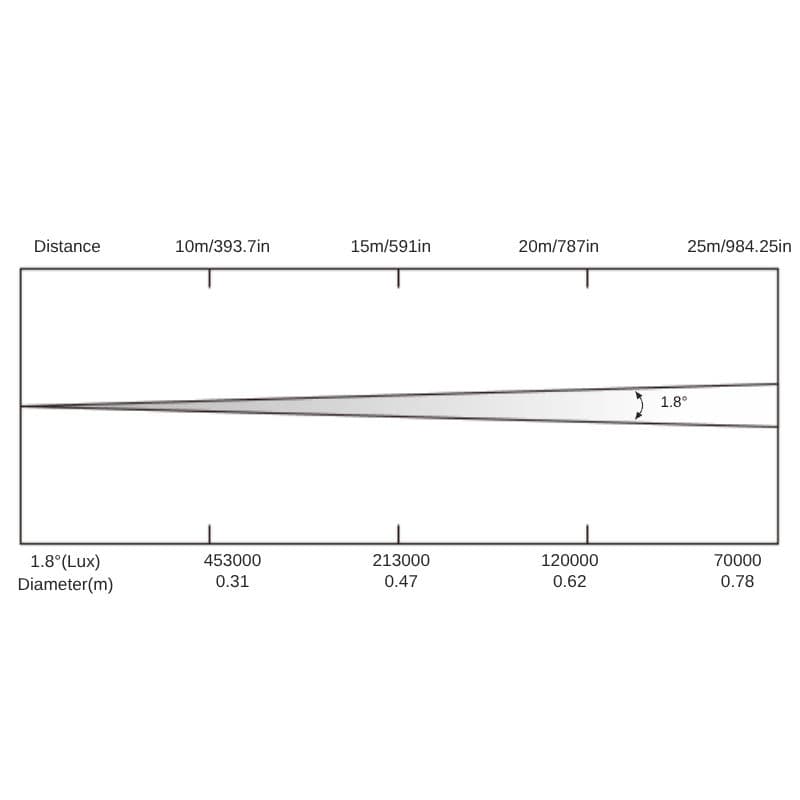

- Illuminance: 453,000 lux @ 10m / 213,000 lux @ 15m
Dynamic Effects

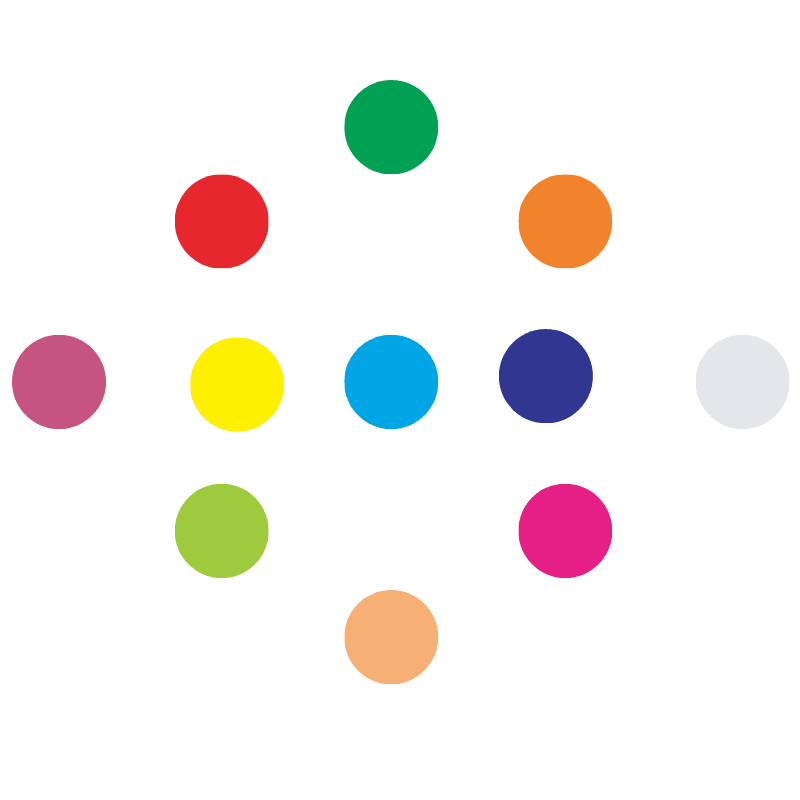

- Color Wheel: 11 colors + white

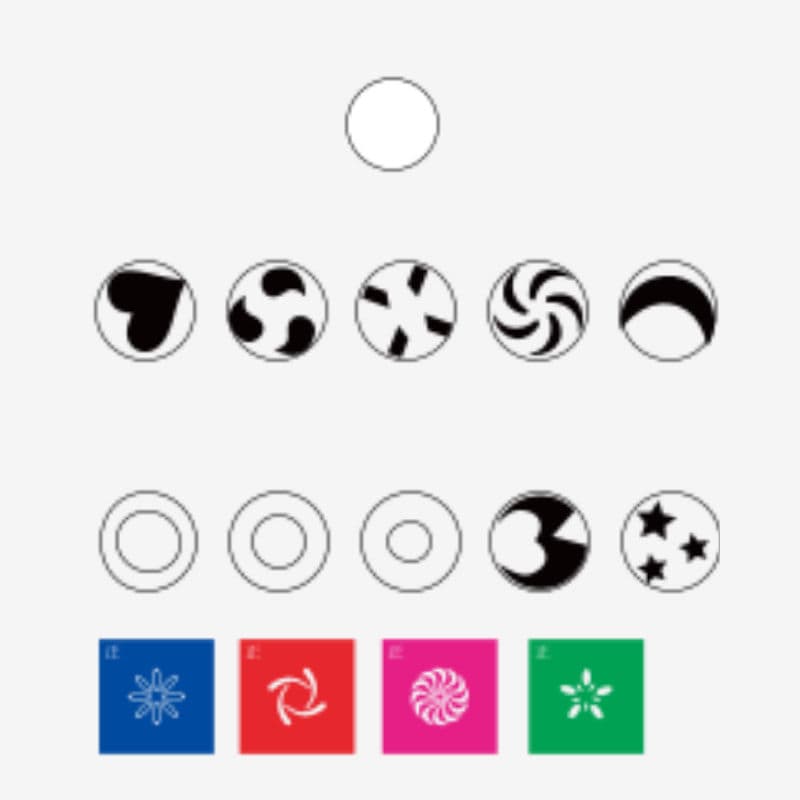

- Gobo Wheel: 10 static gobos + 4 glass gobos + white
- Prisms: 1x 16-facet prism, 1x 8+16-facet prism (bi-directional rotation)
- Optics: Linear focus system, Independent frost effect
- Color Macros: Advanced macro color effects
- Strobe: 1-25Hz built-in multiple strobe effects
Control & Movement
- DMX Channels: 19CH
- Pan: 540° (16-bit precision, auto-correction)
- Tilt: 270° (16-bit precision, auto-correction)
- Control Protocols: DMX512 / RDM / Master-Slave / Auto
- Display: LCD screen with 4 touch buttons
- Updates: Software upgrade via DMX connection
Electrical & Physical
- Input Power: AC100-240V, 50/60Hz (350W Power Consumption)

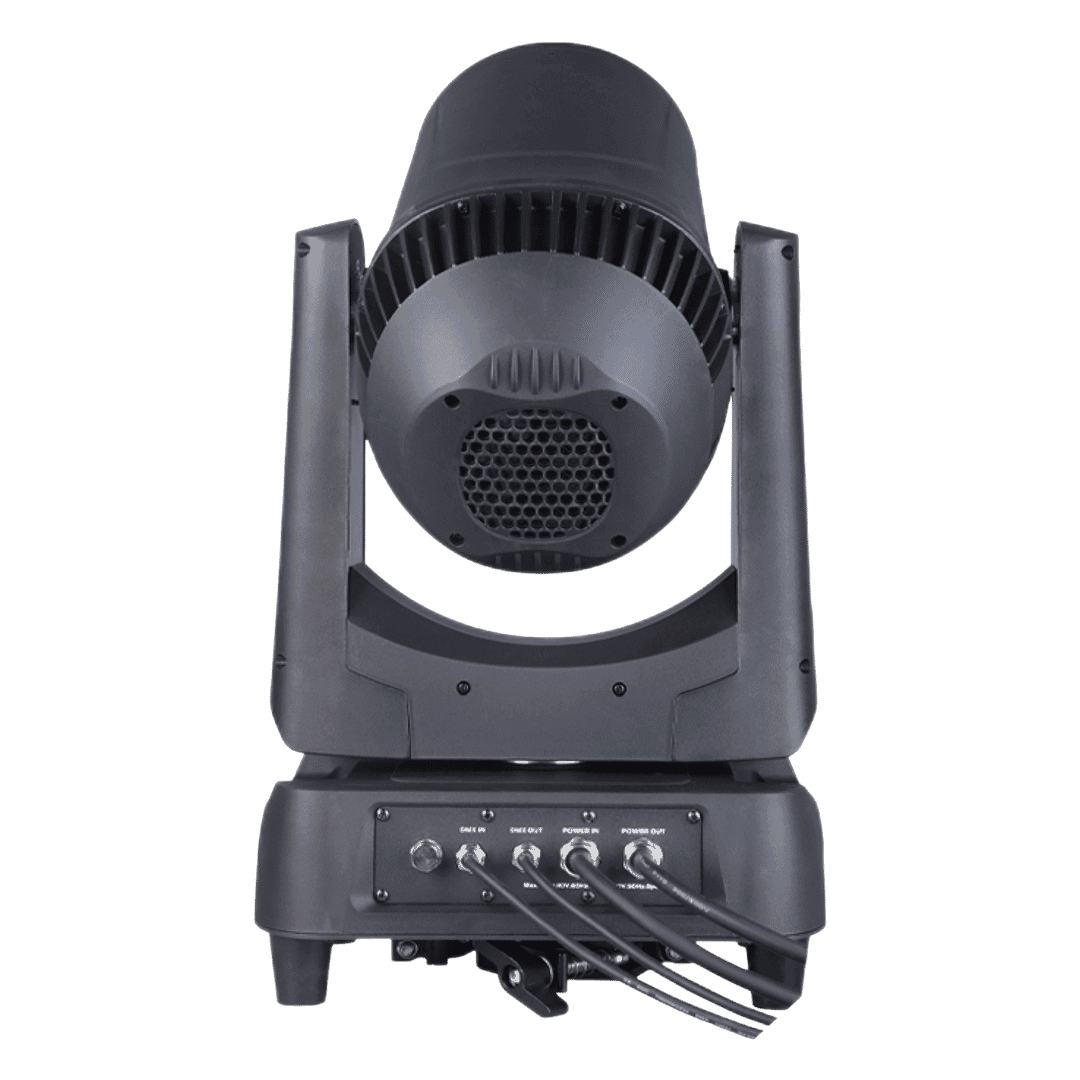

- Connectors: Daisy-chain power in/out, 3-pin DMX in/out
- IP Rating: IP65 (Waterproof for outdoor use)
- Working Temp: -10°C to 45°C

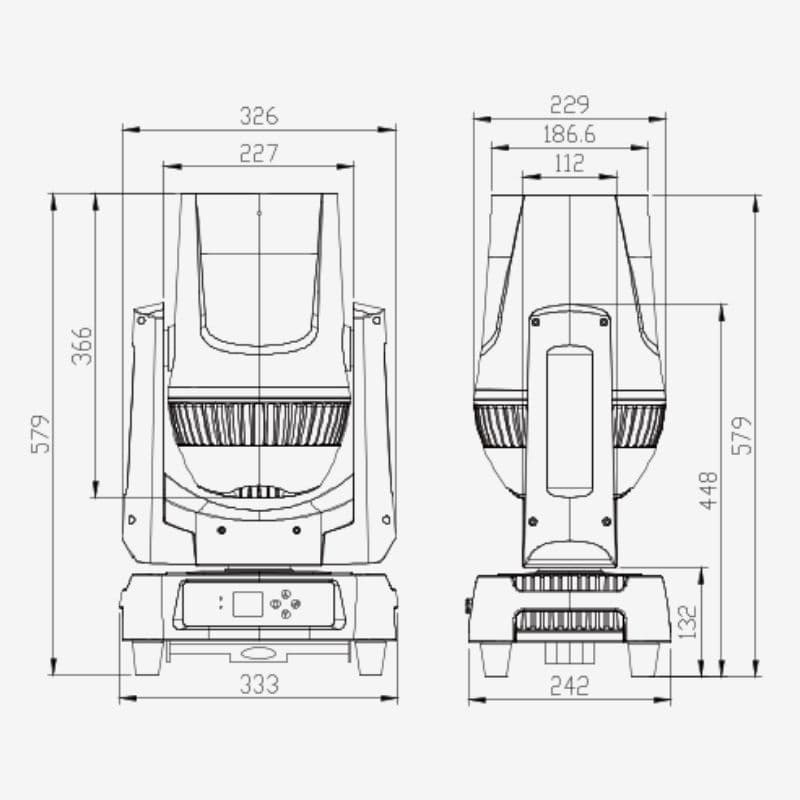

- Dimensions: 333 x 242 x 579 mm (13.11 x 9.53 x 22.8 in)
- Net Weight: 19 kg (41.89 lbs)
Engineering Details

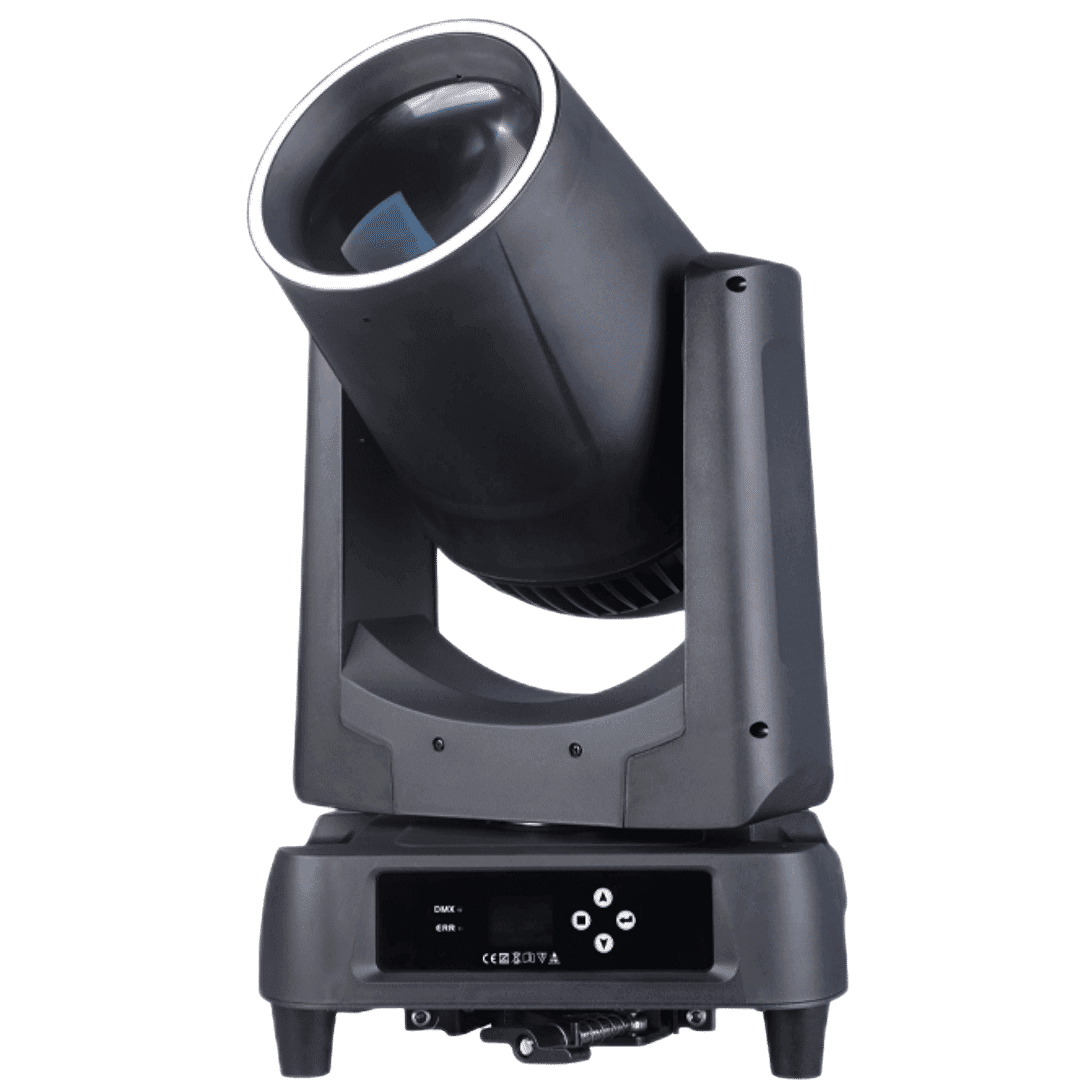

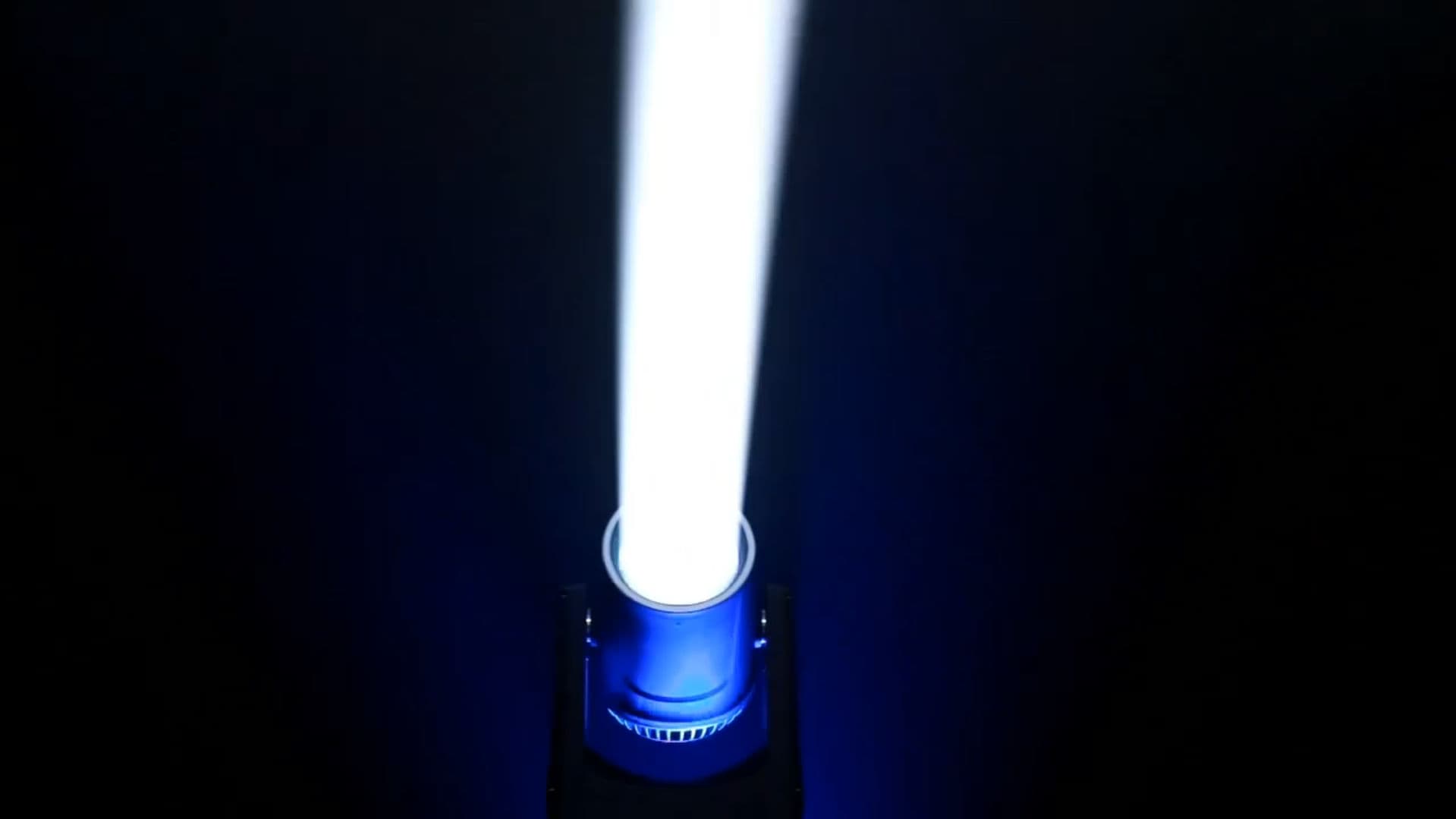

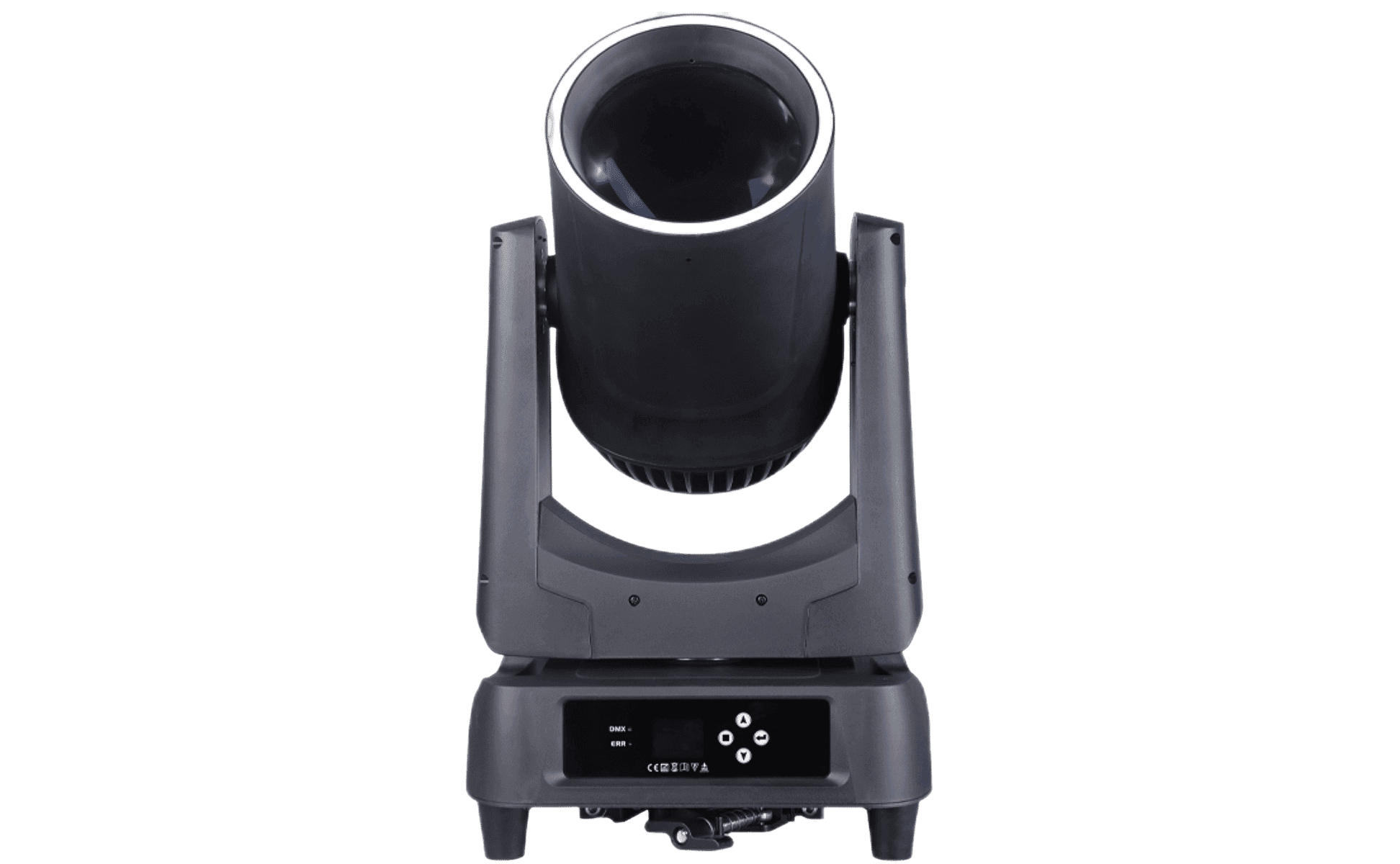

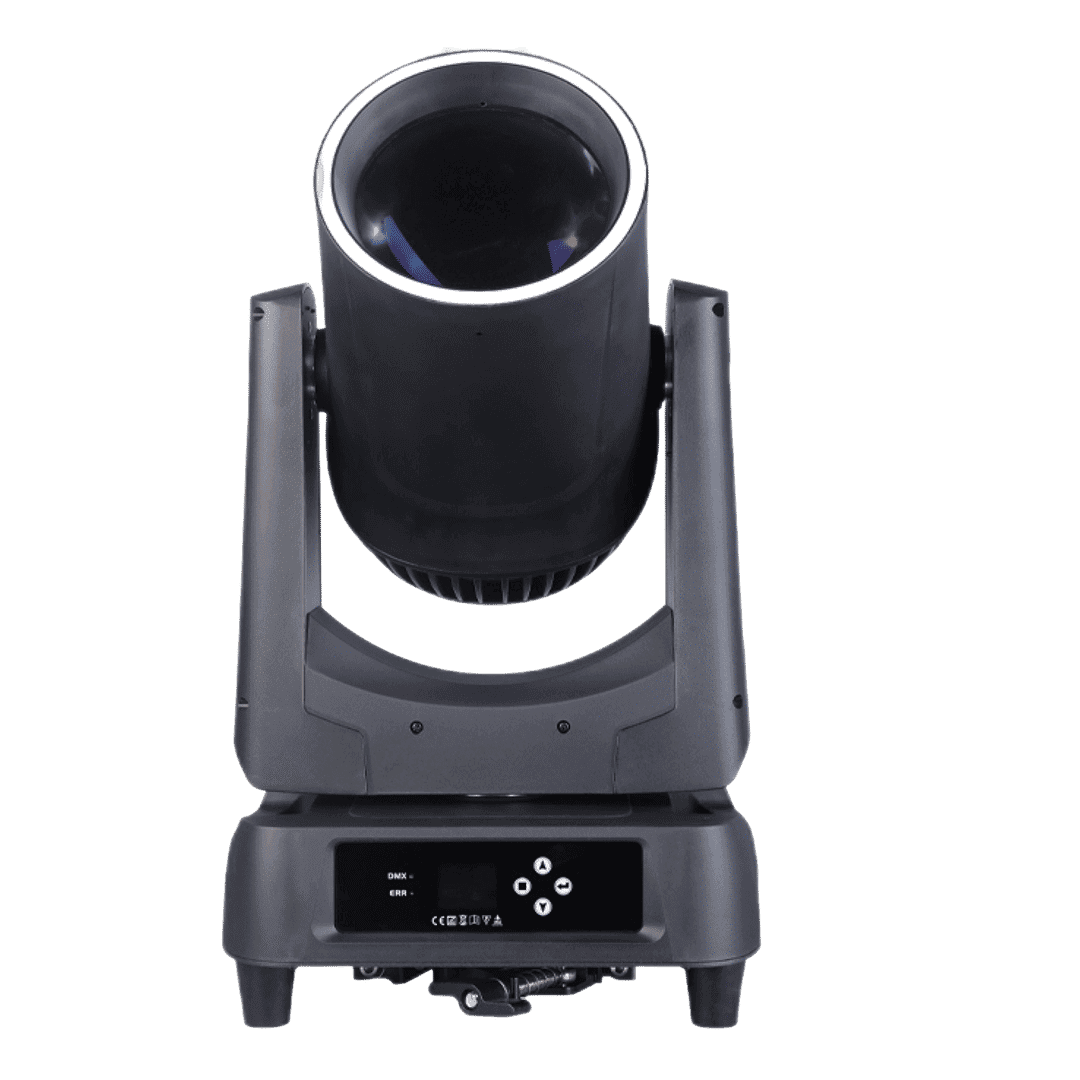

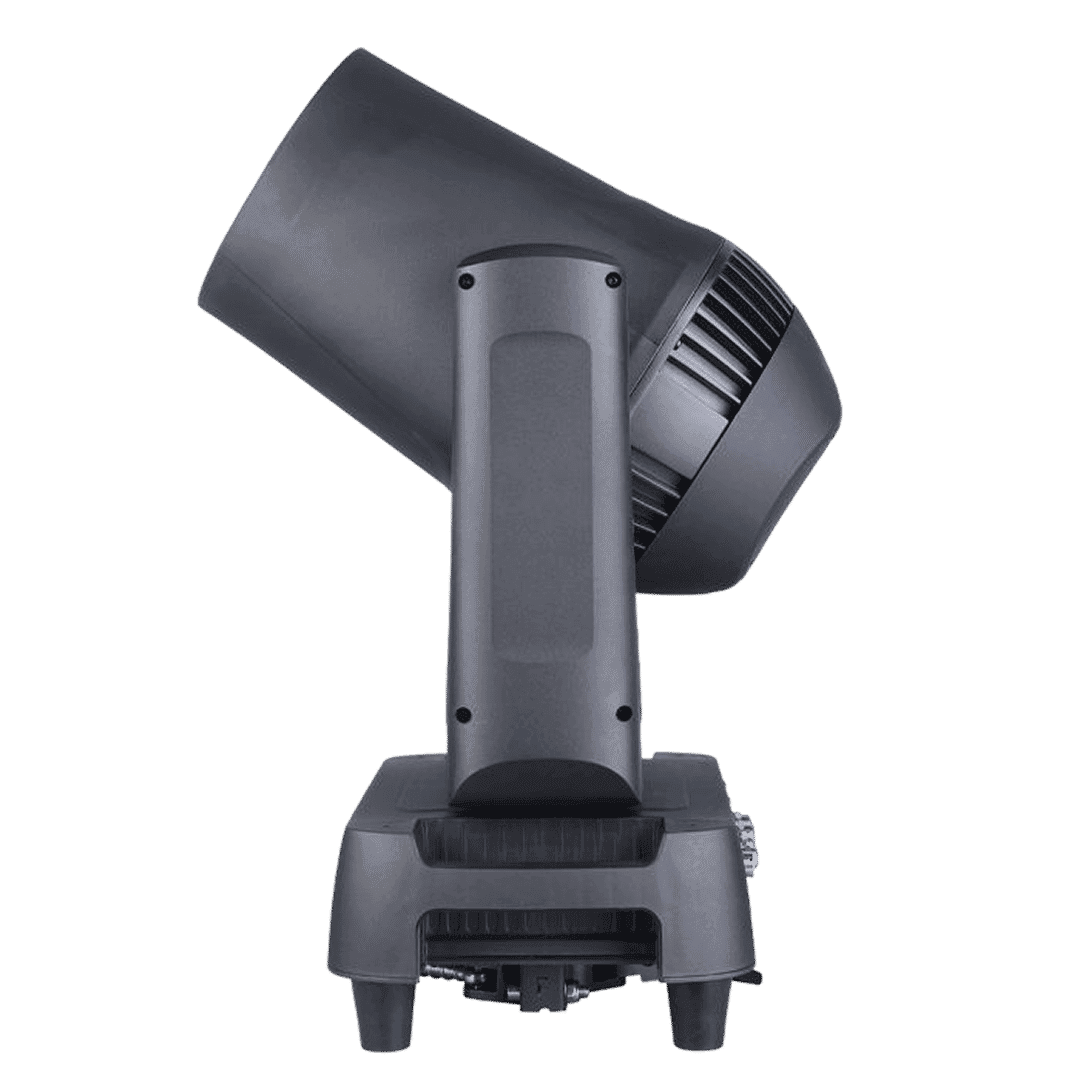

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
