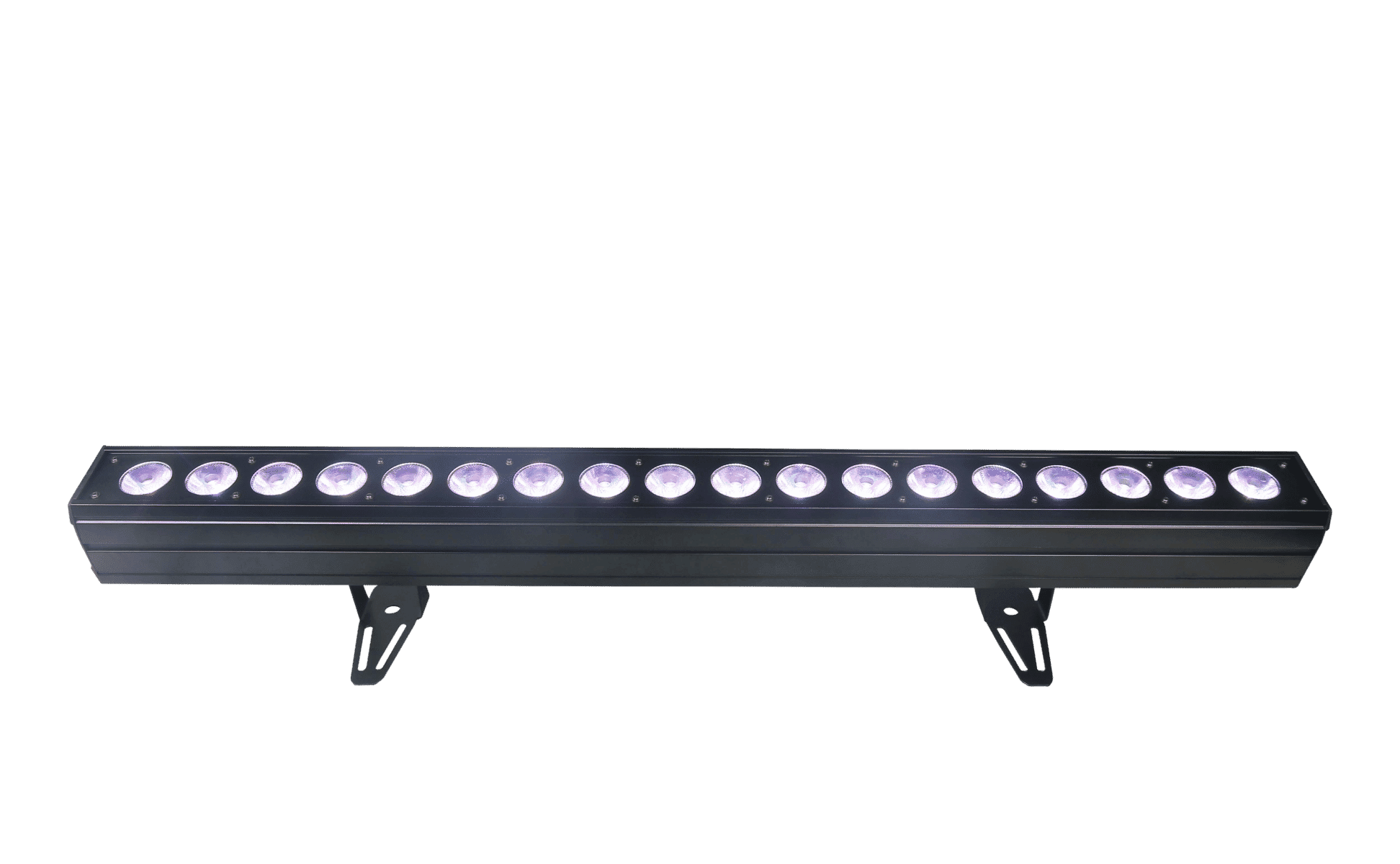

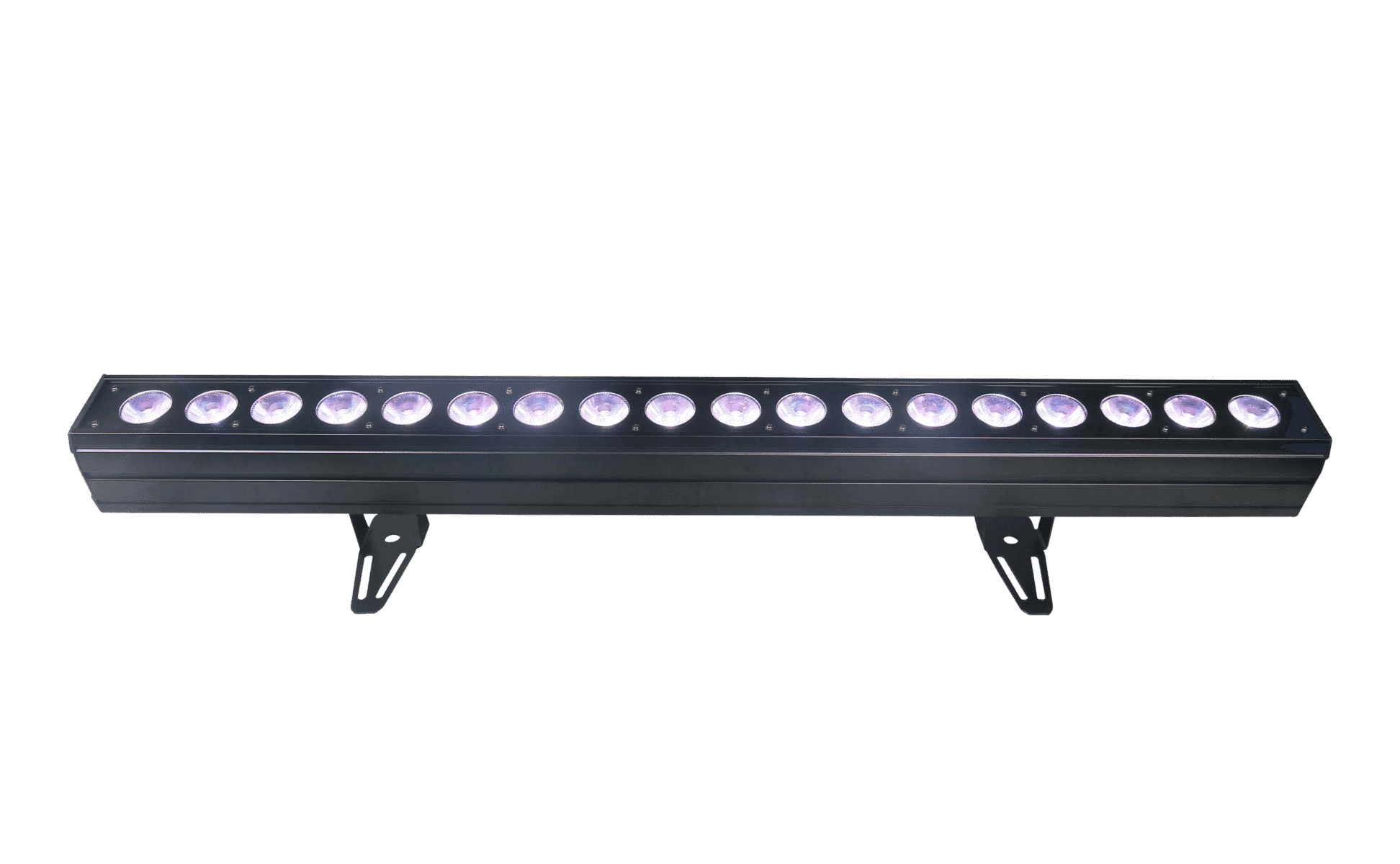

BAR LIGHT 1810 RGBWA-UV
Hexa-Color Spectrum. Wall-Washing Perfection.

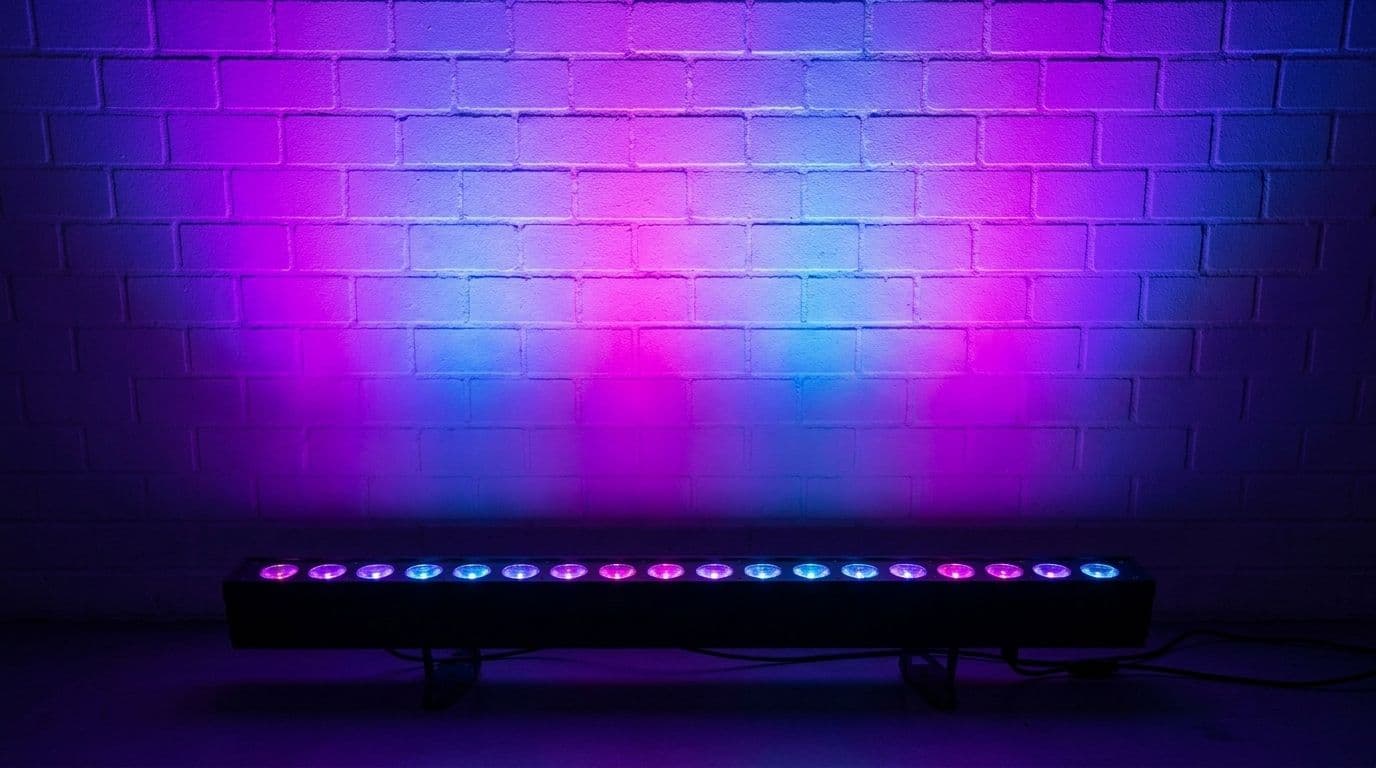

The Bar Light 1810 is a versatile linear wash fixture equipped with 18x 10W RGBWA-UV 6-in-1 LEDs. It offers an incredibly wide color palette, including deep UV hues, making it the perfect tool for dramatic stage lighting and even architectural wall-washing.
Constructed with a rugged die-cast aluminum profile, this indoor-rated (IP20) fixture ensures silent operation via efficient convention cooling. It boasts a solid 25° beam angle, completely flicker-free performance, and an intuitive LED display for selecting pre-programmed color macros and automated chases.
Technical Parameters
Optics & Light Source
- Source: 18x 10W 6-in-1 RGBWA-UV LEDs
- Beam Angle: 25° for targeted linear coverage
- Lifespan: 50,000 hours
Dynamic Effects
- Dimming: 0-100% electronic dimming
- Strobe: 1-23Hz variable speed strobe
- Operation: Flicker-free for broadcast and film
Control & Programming
- Control Modes: DMX / Master-Slave / Sound / Auto
- DMX Channels: 6 / 10 CH modes
- Display: LED digital display with 4 buttons
Electrical & Physical
- Power Consumption: 180W (AC100-240V, 50/60Hz)
- Cooling: Convention cooling (Fanless & Silent)
- Environment: IP20 rated for indoor use
- Dimensions: 100 x 90 x 1000 mm | Weight: 3.2 kg

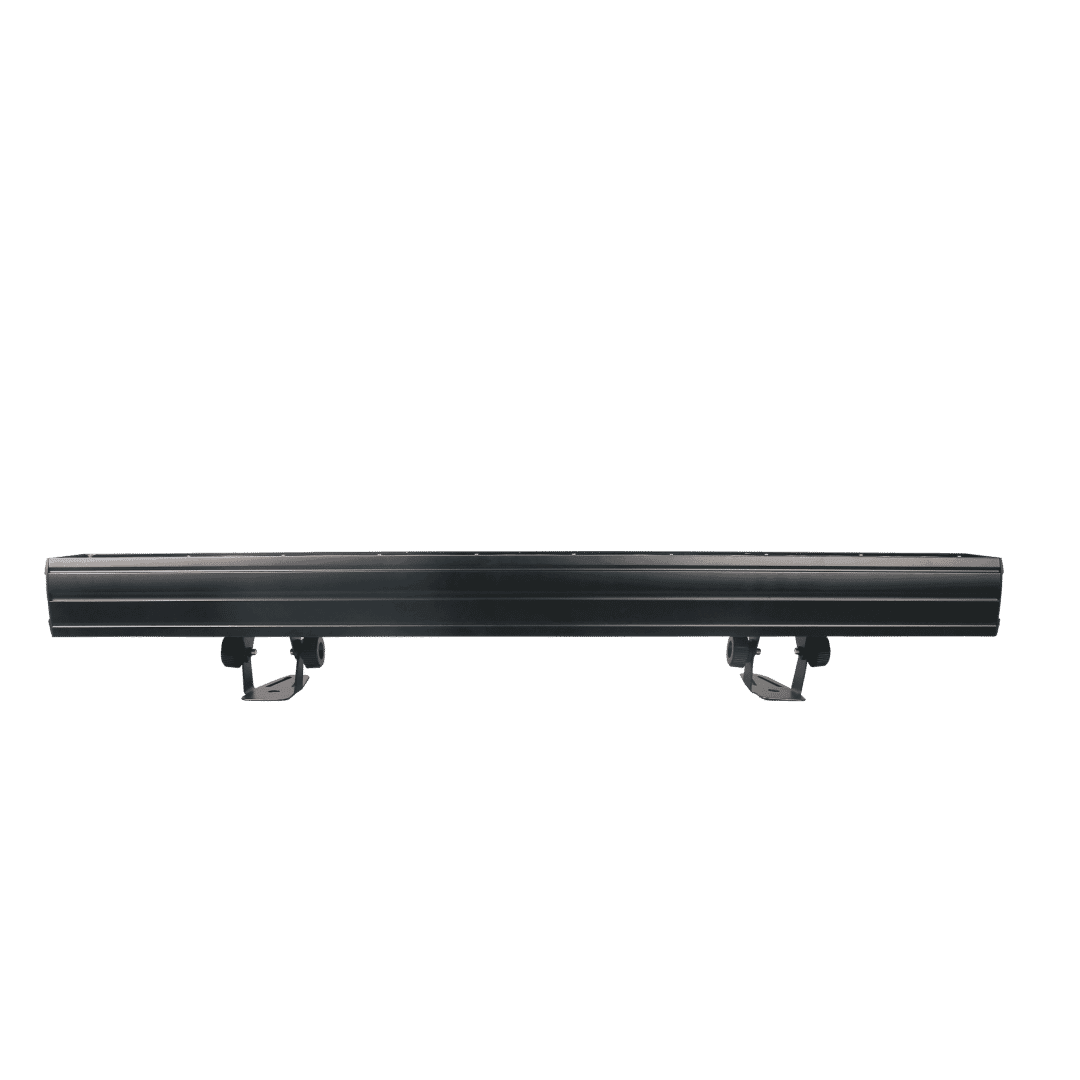

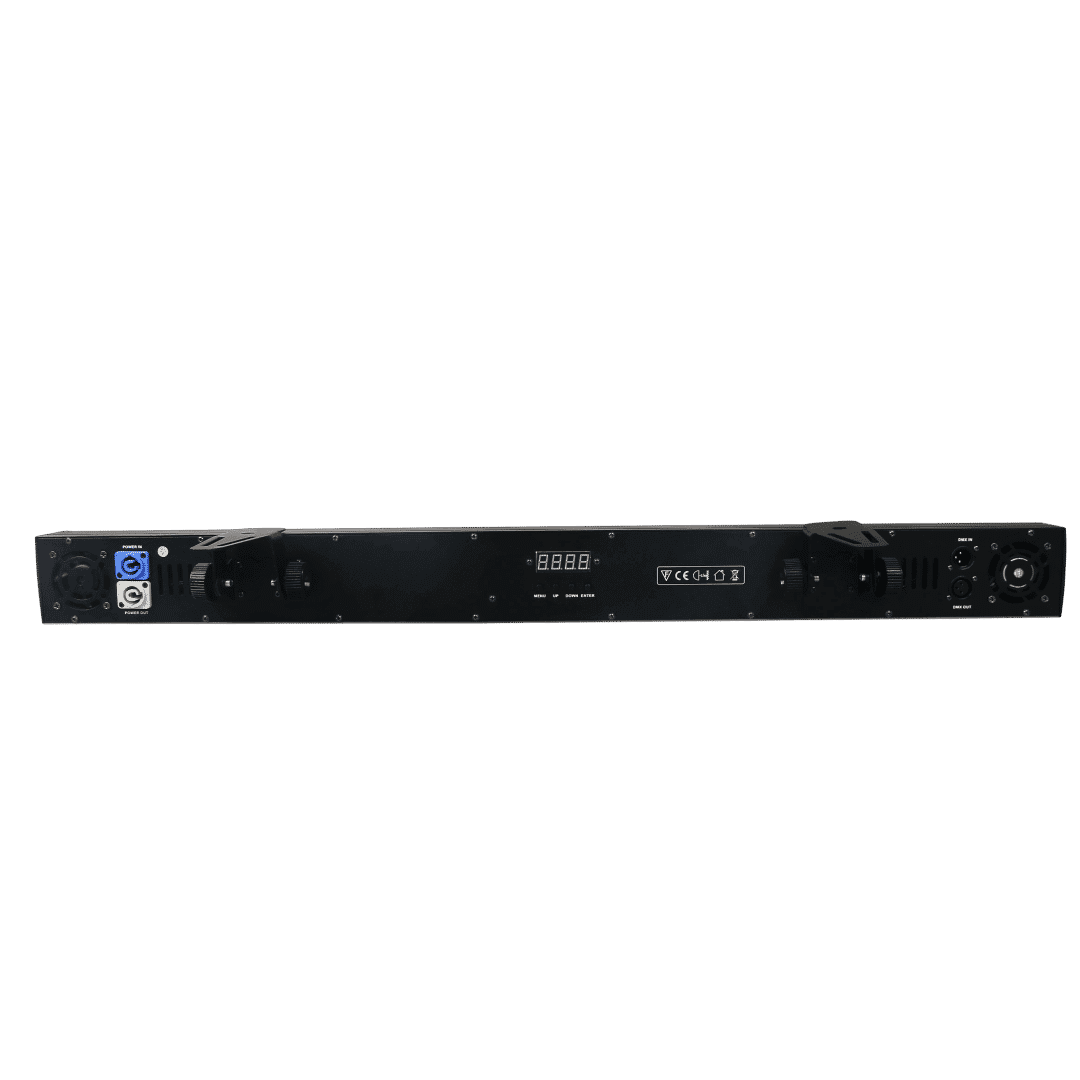

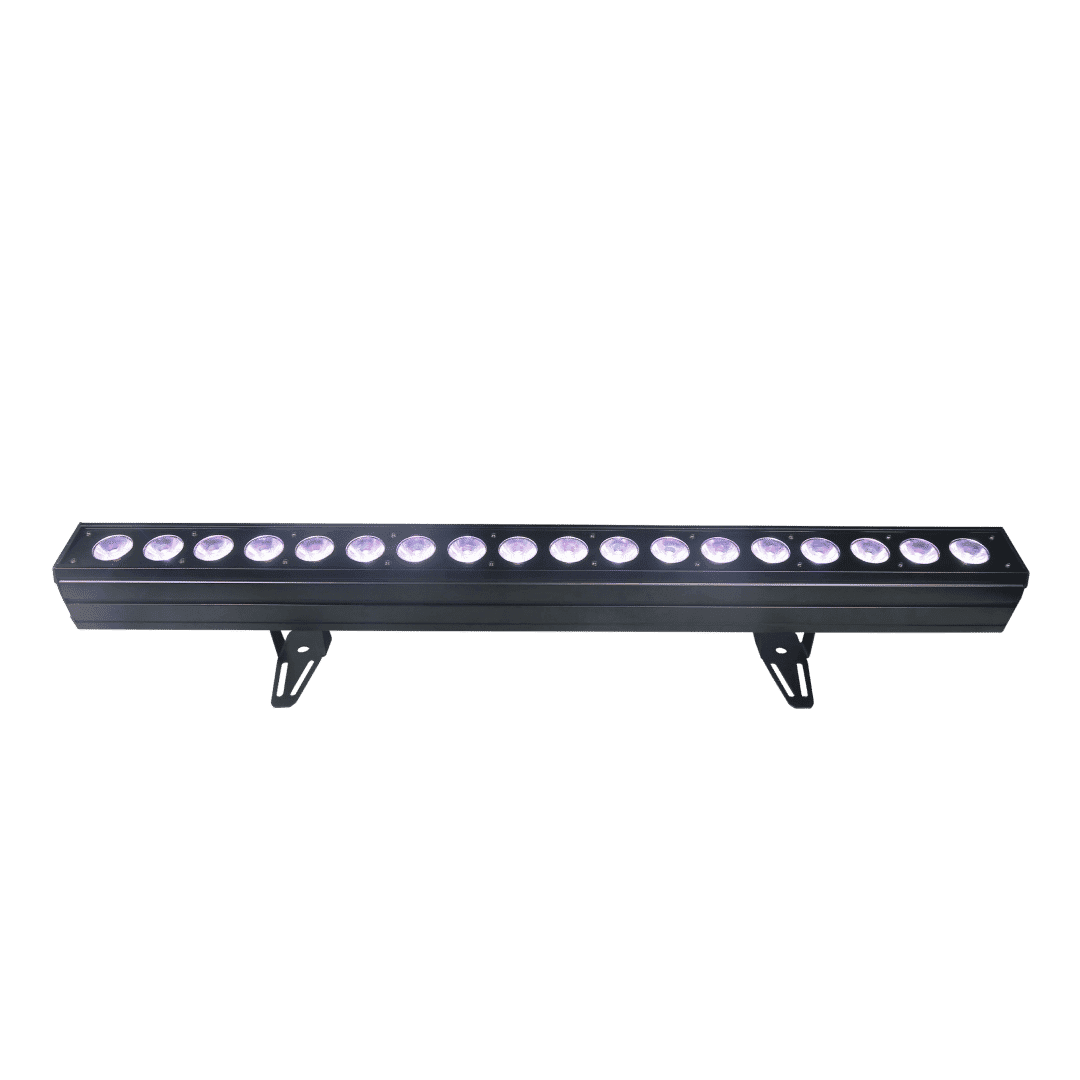

Product Gallery
Technical Resources
Download the complete product package including user manuals, DMX charts, and technical dimensions.
